MMX6x2-HT210

Shipping
SKU
91310031

Multiport HDMI and TPS Matrix Switcher

MMX6x2‑HT210 is almost fully identical with the MMX6x2‑HT220 model and offers all of its functions, but it only has one of its HDMI outputs mirrored as TPS port.

Highlighted features

  • Bi-directional RS-232 and IR extension (pass-through and control)
  • Command injection on RS-232 and IR ports
  • Built-in Event Manager control automation feature

Our regional offices and dedicated AV experts are at your disposal and would happily assist you finding the most suitable solution for your AV project.

Simply choose your location and get in touch with your Lightware partner today.

Our dedicated Lightware experts are ready to discuss the needs of your AV projects!

HDBASET

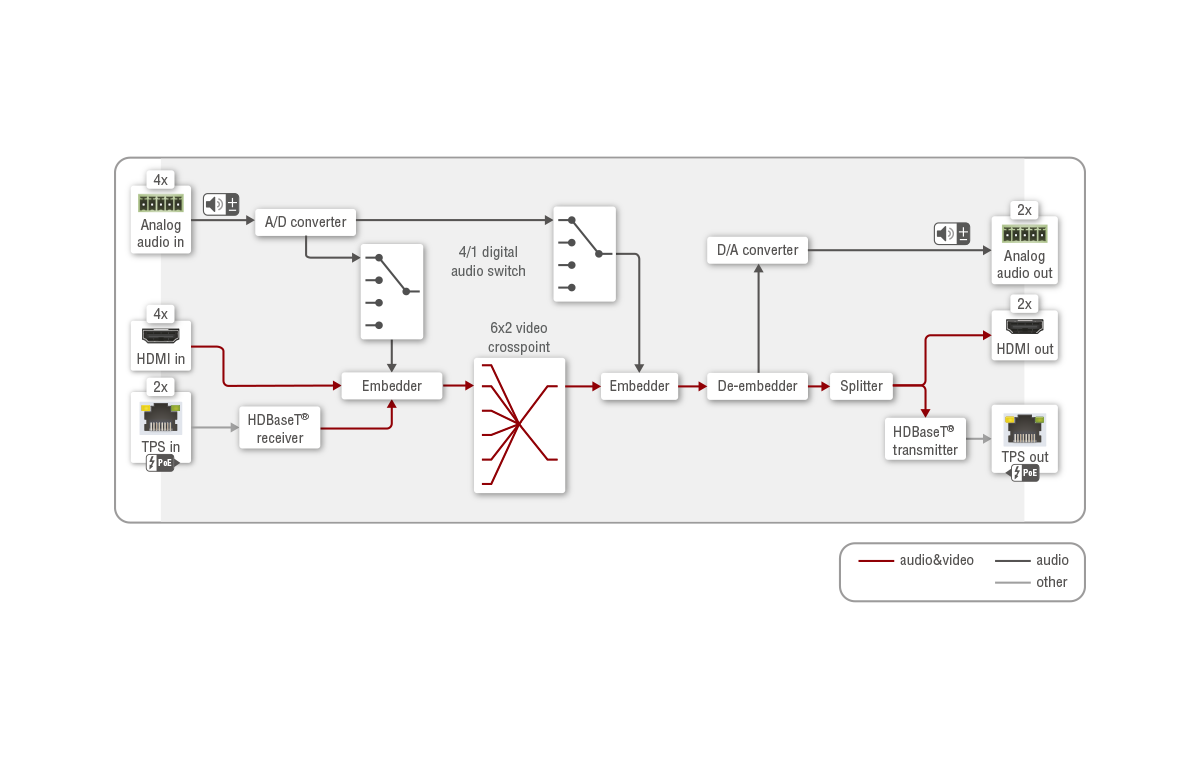

The MMX6x2-HT210 responds to a need for a practical standalone matrix switcher specifically designed for meeting room and classroom environments. The compact MMX6x2-HT200 has four HDMI 1.4 and two TPS (HDBaseTTM) inputs and two independent HDMI outputs and one mirrored TPS output. 4K@30Hz, 3D capabilities and HDCP are fully supported. The device also has four audio connectors for audio insertion and two audio outputs for de-embedding purposes.

PoE 48V remote powering is available on every TPS ports for cost-effective installations. MMX6x2-HT200 can receive digital video, audio and control from a distance of up to 170m over a single CATx cable. Using factory, custom or transparent EDID emulation, the user can fix and lock EDID data on each input connector. Advanced EDID Management forces the required resolution from any video source and fixes the output format to conform the system requirements.

The unit offers IR and RS-232 command injection capabilities, providing the ability to send any IR or RS-232 control command directly from the LAN connection to remote end points. The MMX6x2-HT200 is also compatible with both HDBaseT extenders and HDBaseT compliant displays.

Event Manager

The Event Manager feature is all the control you need, already built-in, as it can perform any user-defined action when a change in the device status occurs. To mention a few case examples among the many, in case of a status change of a signal appearing on the input, or a change in resolution, the responsive action can be defined by the user to be a crosspoint switch, sending IR or RS-232 commands or changing the volume.

This built-in feature ensures that no additional control is required in simple systems and makes the MMX6x2-HT family the perfect solution in a wide range of applications.

Configuration Cloning Capability

Using the supplied Lightware Device Controller application it is possible to clone configuration settings in a few easy steps and restore them in an unlimited number of other MMX6x2-HT200 devices.

Power Injection over TPS ports

MMX6x2-HT200 has remote powering capabilities on its TPS ports. This feature allows for remote powering the connected TPS devices using standard Power over Ethernet (PoE) technology by delivering 48V of DC power over CAT cables, for devices consuming less than 15W of power. Remote powering saves time and money by avoiding the need for separate installation of video and power infrastructures. Powered extenders can be freely placed without a need for AC outlets.

Volume Control for De-embedded Audio

MMX6x2-HT200 enables de-embedding audio and setting volume level on the balanced audio out connectors. This feature makes installations simpler and cost effective as there is no need for an external device for volume and balance adjustment when using active speakers.

Applications

  • Classrooms
  • Conference/meeting/huddle rooms
  • Control room
  • Home cinema

Supplied Accessory

  • 2x rack ear

Optional Accessories

  • Extra rack ears for under desk installation
  • Mounting bracket V2

Remote Powering Remote Power Compatibility Table

Check the remote power compatibilities and functionalities across our devices

Max Supported Cable Lengths
 Resolution  Pixel clock rate Cable lengths (Auto / LR link mode)
CAT5e AWG24 CAT7 AWG26** CAT7 AWG23
 1024x768@60Hz 65 MHz 100 m / 130 m* 90 m / 120 m* 120 m / 170 m*
 1280x720p@60Hz 73,8 MHz 100 m / 130 m* 90 m / 120 m* 120 m / 170 m*
 1920x1080p@60Hz / 24bpp 148,5 MHz 100 m / 130 m* 90 m / 120 m* 120 m / 170 m*
 1920x1200@60Hz 152,9 MHz 100 m / NA 90 m / NA 120 m / NA
 1600x1200@60Hz 162 MHz 100 m / NA 90 m / NA 120 m / NA
 1920x1080@60Hz / 36bpp 223 MHz 70 m / NA 70 m / NA 100 m / NA
 1920x1080@120Hz 297 MHz 70 m / NA 70 m / NA 100 m / NA
 3840x2160@30Hz UHD 297 MHz 70 m / NA 70 m / NA 100 m / NA
 4096x2160@30Hz 4K 297 MHz 70 m / NA 70 m / NA 100 m / NA
* with Long reach operation mode which supports pixel clock frequencies up to 148,5 MHz.
** when remote powering is used with AWG26 cables, distances are 20% shorter.

I/O Connectors Comparison Chart
  HDMI in TPS in HDMI out TPS out
MMX6x2-HT220 4 2 2 2
MMX6x2-HT210 4 2 2 1
MMX6x2-HT200 4 2 2 0

Connectors
Digital Video Inputs  4x HDMI connector
Digital Video Outputs  2x HDMI connector
TPS inputs  2x RJ45 connector
TPS output:  RJ45 connector
Analog audio inputs:  4x 5-pole PHOENIX
Analog audio outputs:  2x 5-pole PHOENIX
Control LAN  RJ45
TPS Ethernet  RJ45
Serial port  3-pole PHOENIX
USB  mini-USB B
Power  IEC 230V

Specification
Crosspoint: 6x2 video - any input(s) to any output(s)
Resolution: Up to 4K UHD 3840×2160@30Hz, 1600x1200@60Hz, FullHD 1920x1080@120Hz
Digital Audio Formats: Supports up to 8 channel PCM, Dolby TrueHD and DTS-HD Master Audio 7.1 formats
Input cable equalization (HDMI): Adaptive, automatic
EDID emulation: Yes, Advanced EDID Management
EDID memory: 119 factory preset, 12 user programmable
HDCP compliant: Yes
Front panel buttons: Yes
Front panel LCD: Yes, 2x16 characters
RS-232 control: Selectable (9600, 19200, 38400, 57600, 115200) Baud Rx, Tx (default: 57600)
Local power: 100 - 240 V AC
Power consumption: 95 W (max.), 38 W (typ.)
Heat dissipation: 112 BTU/h (max.), 75 BTU/h (typ.)
Enclosure: 1 mm metal
Dimensions with rack mounting ears: 482 W x 43,9 H x 300 D mm
Dimensions without rack mounting ears: 442 W x 43,9 H x 300 D mm
Rack height: 1U
Net weights: 4,8 kg
Compliance: CE
Temperature: 0°C to +50°C operational -40°C to +70°C storage
Humidity: 10 to 90% non-condensing
RoHS compliance: Yes
Warranty: 3 years

Supported Audio Formats
HDMI Embedded Audio

Multichannel PCM (up to 8 ch, 192 kHz)
Dolby Digital 2.1, 5.1, 7.1
DTS 2.1, 5.1, 7.1
Dolby TrueHD (HBR)
DTS-HD (HBR)
DTS-HD Master Audio (HBR)
All other HDMI 1.4 specified audio formats

Balanced Analog Output Stereo PCM (up to 96 kHz)

Analog Audio Input
Gain (adjustable): 0..21 dB
Volume (adjustable): -95..0 dB
Maximum differencial input level +4 dBu @ 0 dB Gain

Analog Audio Output
Gain (adjustable): 0..3 dB
Volume (adjustable): -57..0 dB
Nominal differential input level +4 dBu @ 0 dB Gain
Maximum differential output level +7 dBu @ 3 dB Gain
