DP-OPT-RX150
Fiber Optical DisplayPort Extender with KVM
DP‑OPT‑RX150 is a Dual‑mode DisplayPort 1.1a optical extender transferring up to 4K/UHD (30Hz RGB 4:4:4, 60Hz YCbCr 4:2:0) resolution video and embedded audio with optional HDCP encryption, and USB HID signals over one multimode fiber cable to a range of up to 1100 m.
Highlighted features
- Compatible with Apple LED Cinema Display
- Extends DP 1.1 and USB KVM signals over one multimode fiber cable
- USB KVM (HID) extension
- Compatible with Mac laptop and desktop computers with Thunderbolt port
DP-OPT-RX150 extends Dual-mode DisplayPort 1.1a high resolution video and embedded audio with optional HDCP encryption plus USB HID* over one multimode fiber up to 1100 m.
DisplayPort one of the newest video interface standards. Using DisplayPort, high resolution video and excellent quality audio can be transmitted. The interface's 10.8 Gbps bandwidth is capable of transmitting 2560x1600@60Hz pixel resolution video with full support of content protection (HDCP). UHD and 4Kx2K resolution can be achieved up to 30Hz frame rate.
Intelligent HID Emulation is provided for two devices with full transparency. The special HID devices - including
keyboard and mouse - are emulated by the extender and transparently transferred to the computer with the result
that no drivers are required for the proper functionality, it’s as easy as Plug & Play.
DP-OPT-TX150 has 2 extra local USB ports with a built-in HUB and can be connected to the PC/Mac with a single
USB cable.
Dual-mode DisplayPort: when connecting a DVI or HDMI display through an adaptor cable, Dual-mode DisplayPort graphic cards reconfigure their outputs to DVI or HDMI accordingly. Lightware DisplayPort extenders support Dual-mode port extension and adaptor cables.
Thunderbolt: Lightware’s DisplayPort extenders can be used with Thunderbolt sources and devices. The extender pair and the DisplayPort monitor have to be placed at the end of the Thunderbolt chain. Apple Thunderbolt Display is not supported.
Single Fiber Technology makes these units fully DisplayPort 1.1a and HDCP 1.1 compliant without the need of a second fiber cable or copper connections. To simplify cabling, the bi-directional communication - necessary for DisplayPort Link Training, HDCP handshaking and USB transfer - is performed on the same fiber core that transmits the video signal. Both receiver and transmitter are remote configurable from either side through the mini USB connector.
Applications
- Long distance lossless DisplayPort signal and USB HID transmission
- Apple Cinema Display compatible AV extension
- Ground loop isolation
- Supports DisplayPort Link Training
- HDCP 1.4 compliant
- No signal latency, zero frame delay
- 2560x1600 maximum resolution (DP)
- Compatible with Apple LED Cinema Display
- Extends DP 1.1 and USB KVM signals over one multimode fiber cable
- Single Fiber Technology
- USB KVM (HID) extension
- Firmware upgrade through USB
- Extension distance up to 2500 meters (with OM3 fiber, 1920x1080p60)
- Supports external USB hubs
- Dual-mode DP: supports DVI and HDMI adaptors
- Transparent EDID pass-through
- Intuitive control software for device configuration
- Device control via USB
- Uncompressed video up to 10.8 Gbps datarate (DP1.1)
- No video compression
- Status LEDs (fiber link, source, signal type and monitor detect)
- Compatible with Mac laptop and desktop computers with Thunderbolt port
- Kensington lock support
- External universal power adaptor
- Mounting options for rack, furniture or truss
- Solid machined aluminum body
| Specifications | |
| Data rate: | 1.62 / 2.7 Gbps/lane,maximum: 10.8 Gbps total |
|
Max resolution at 60Hz: |
2560 x 1600 pixels @ 60 Hz |
|
Max resolution at 30Hz: |
4Kx2K (4096×2400 pixels) |
|
Other supported resolutions: |
4096x2160 up to 30 Hz |
| Color depth: | 24, 30, 36, 48 bits deep color |
| HDCP pass through: | Yes |
| Fiber: | 50/125 SC Multimode (preferred) 62.5/125 SC Multimode |
| Laser wavelengths: | high speed lanes: 778; 800; 825; 850 nm low speed lanes: 911; 980 nm |
| Laser class specifications: | Class 3R |
| Transmitter output OMA*: | -6.25 dBm (worst case) |
| Receiver OMA* sensitivity: | -14.25 dBm (worst case) |
| Transmission distance: | 1100 m (using OM3e or OM4 type fiber) |

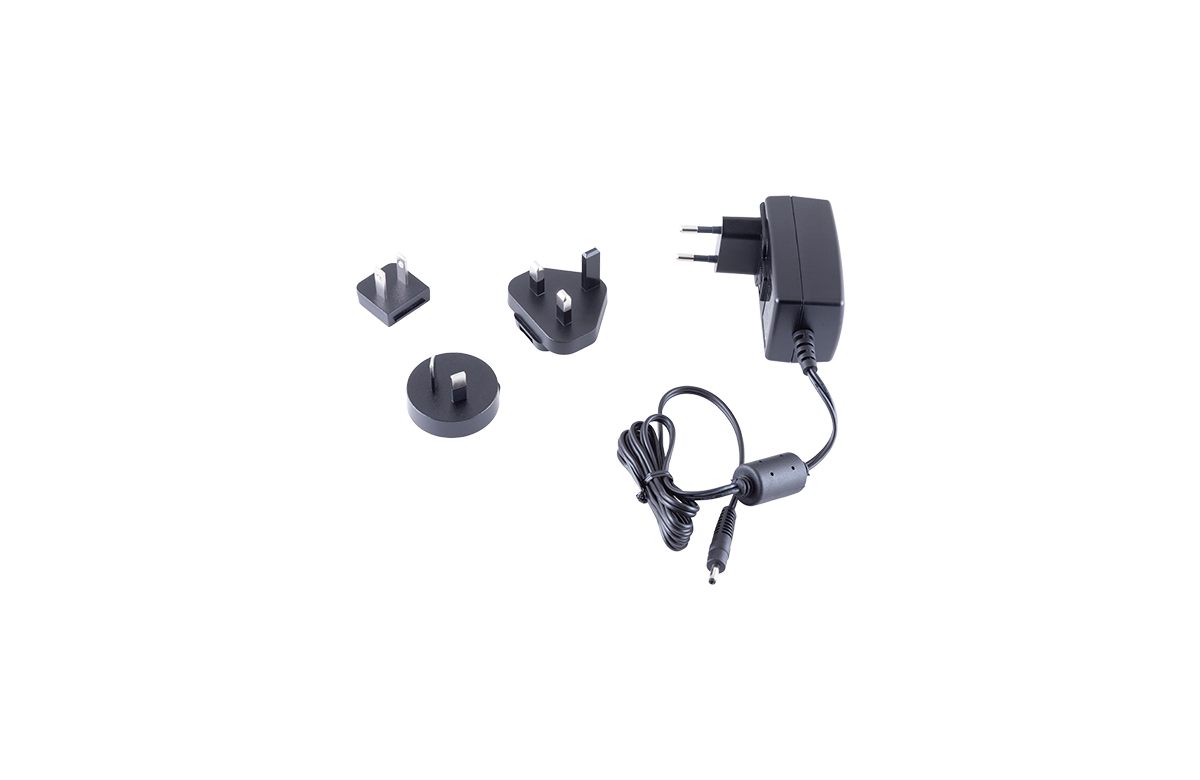

| Power supply: | External power adaptor (100 to 240 V AC, 50-60 Hz)(5 V DC, 2 A) |
| Power consumption: | 3,25 W (typ.) 3,5 W (max) without USB 3,75W (typ.) with USB 8,25 W (max 500mA/USB A conn) with USB |
| Enclosure: | Solid Aluminum |
| Dimensions: | 110 W x 95 D x 18 H mm |
| Weight: | 300 g |
| Compliance: | CE |
| Warranty: | 3 years |
| Connectors | |
| DisplayPort: | standard DisplayPort gold plated connector |
| Fiber: | SC receptacle |
| USB HID (RX) | 2 x USB-A female connector |
| USB (TX) | 2 x USB-A female connector |
| USB control: | mini USB-B female connector |
| Power: | DC connector (1.35/3.5 mm barrel receptacle) |
| Maximum extension distances | ||||
| OM1 | OM2 | OM3 | OM4 | |
| (62.5/125) | (50/125) | (50/125) | (50/125) | |
| DisplayPort 2560x1600@60Hz 24bpp | 150 m | 350 m | 800 m | 1100 m |
