DVI-OPT-RX110
Small DVI Fiber Optical Extender
The DVI‑OPT‑RX110 is a DVI to fiber extender pair transmitting up to a range of 2500 m. The new, redesigned housing and ports of these units further enhances operation safety and security.
Highlighted features
- Extends DVI signals over one multimode fiber cable
- Single Fiber Technology
- DVI connector sized form factor
The DVI-OPT-TX/RX110 pair is a DVI to fiber optical extender set for up to 2500 m range. Using Single Fiber Technology the DVI-D signal is transmitted over only one multimode 50/125 fiber core. Sources and display devices are galvanically isolated against ground loops and hum effects. No delay occurs in the signal, the video image is transferred without frame latency.
With Lightware's hybrid modular matrix concept, it is possible to connect these extender units directly to the MX modular matrix router using an MX-DVI-OPT series input or output board.
Powered from the DVI source, the DVI-OPT-TX/RX110 transmitters do not need external power adaptor simplifying system installation.
Recessed thumbscrews allow easy mounting directly to DVI receptacle by hand, or by using a flat-blade screwdriver. This is most useful in space constraint applications, where the connectors are too close, and can be reached only from the rear side. Massive solid aluminum casing provides excellent cooling and maximum reliability.
Applications
- Professional AV systems, conference rooms
- Fixed installations, Rental and Staging
- Digital signage
- Long distance lossless DVI signal transmission
- Ground loop isolation
- Status LEDs (monitor and laser detect)
- No signal latency, zero frame delay
- Extends DVI signals over one multimode fiber cable
- Single Fiber Technology
- Extension distance up to 2500 meters (with OM3 fiber, 1920x1080p60)
- Cross compatible with OPT series Lightware fiber extenders and I/O boards
- EDID emulation in transmitter
- Advanced EDID Management in transmitter
- No video compression
- 1920x1200 or 2048x1080 maximum resolution (165MHz)
- Status LEDs (power good and EDID state)
- Status LEDs (fiber link, source, signal type and monitor detect)
- Can be powered through DVI connector (TX only)
- External universal power adaptor
- Improved ESD protection
- Solid machined aluminum body
- DVI connector sized form factor
- Recessed (slotted) thumbscrews

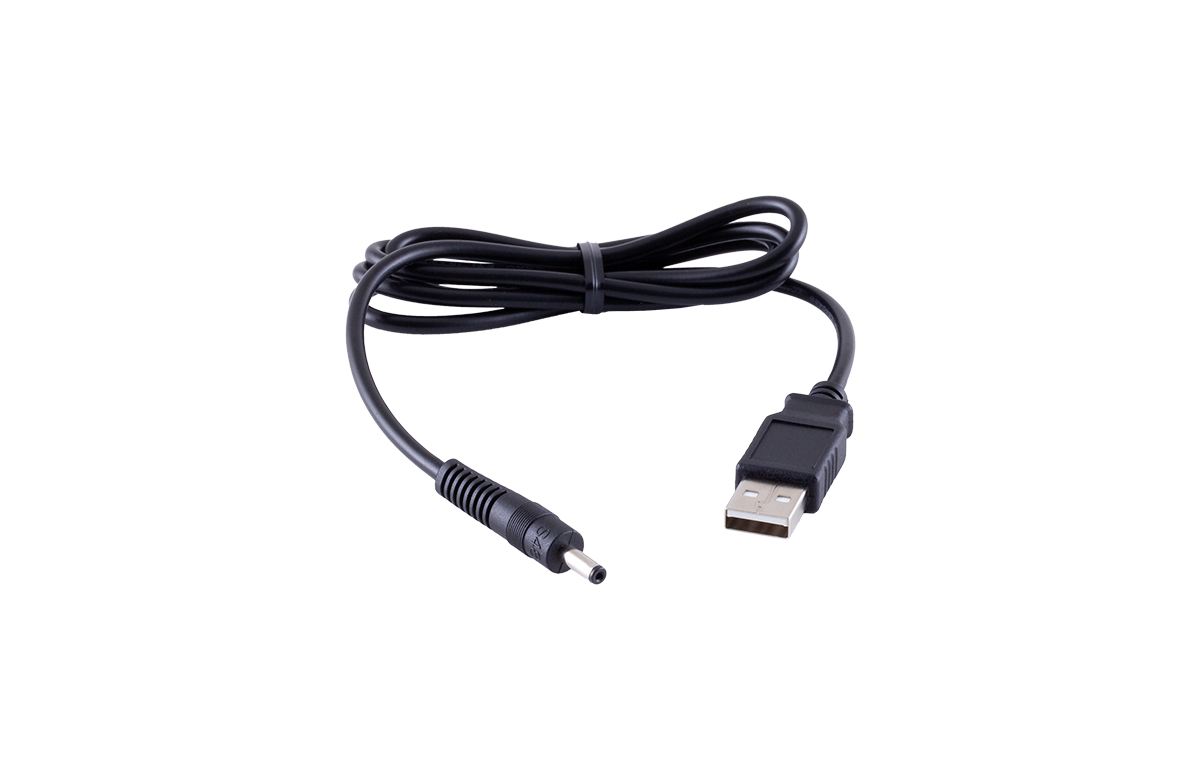

| Connectors | |
| TX input , RX output: | 24 pole DVI-D plug |
| DC Power: | 1.35/3.5 mm barrel receptacle |
| Fiber: | SC simplex |
| Specifications | |
| Data rate: | 1.65 Gbps per color |
| Max Resolution: | 1920x1200 or 2048x1080 pixels |
| Video Delay: | 0 frames |
| HDCP pass through: | no |
| EDID emulation: | yes, EDID learning by button |
| EDID memory: | 1 user programmable EDID in transmitter |
| EDID support: | 256 byte Extended EDID v1.3 |
| Front panel control: | EDID learn button |
| LED indicators: | power, laser detect, signal present, monitor connected |
| RS-232 pass through: | no |
| Fiber: | 50/125 SC Multimode |
| Laser wavelenghts: |
4ch. CWDM: 778; 800; 825; 850 nm (high speed) |
| Laser class specification |
Class 3 |
| Transmitter output OMA*: | -6.25 dBm (worst case) |
| Receiver OMA* sensitivity: | -14.25 dBm (worst case) |
| Optical loss budget: | 8 dB (worst case) |
| Transmission distance (using Om3e type fiber): | 2500 meters |
| Power supply: | External power adaptor (100 to 240V AC, 50/60Hz)(5V DC, 1A) |
| Power consumption: | 0.8 W |
| Enclosure: | Solid Aluminum |
| Dimensions: | 39W x 87,5D x 15,4H mm |
| Net weight: | 95 gramms |
| Compliance: | CE |
| Warranty: | 3 years |
| OMA*:Optical Modulation Amplitude | |
| Maximum extension distances | ||||
| OM1 | OM2 | OM3 | OM4 | |
| (62,5/125) | (50/125) | (50/125) | (50/125) | |
| 1080p@60Hz 24 bpp | 250 m | 600 m | 1200 m | 2500 m |
