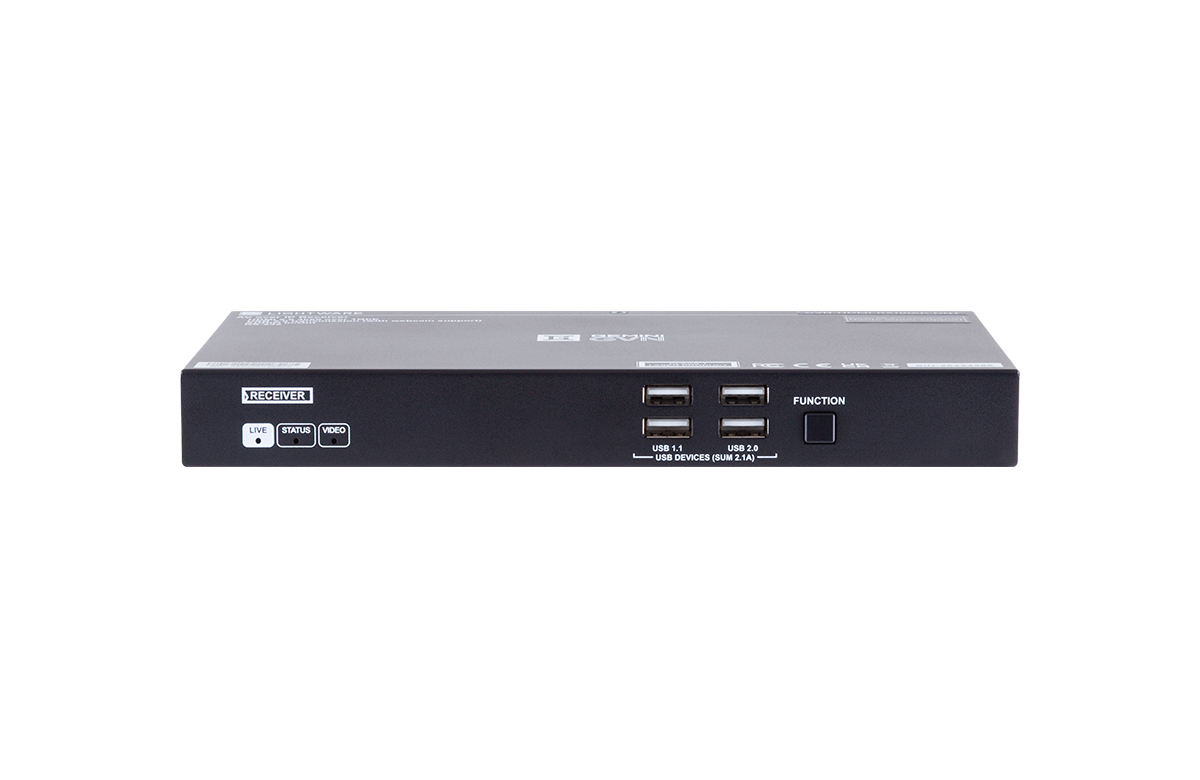

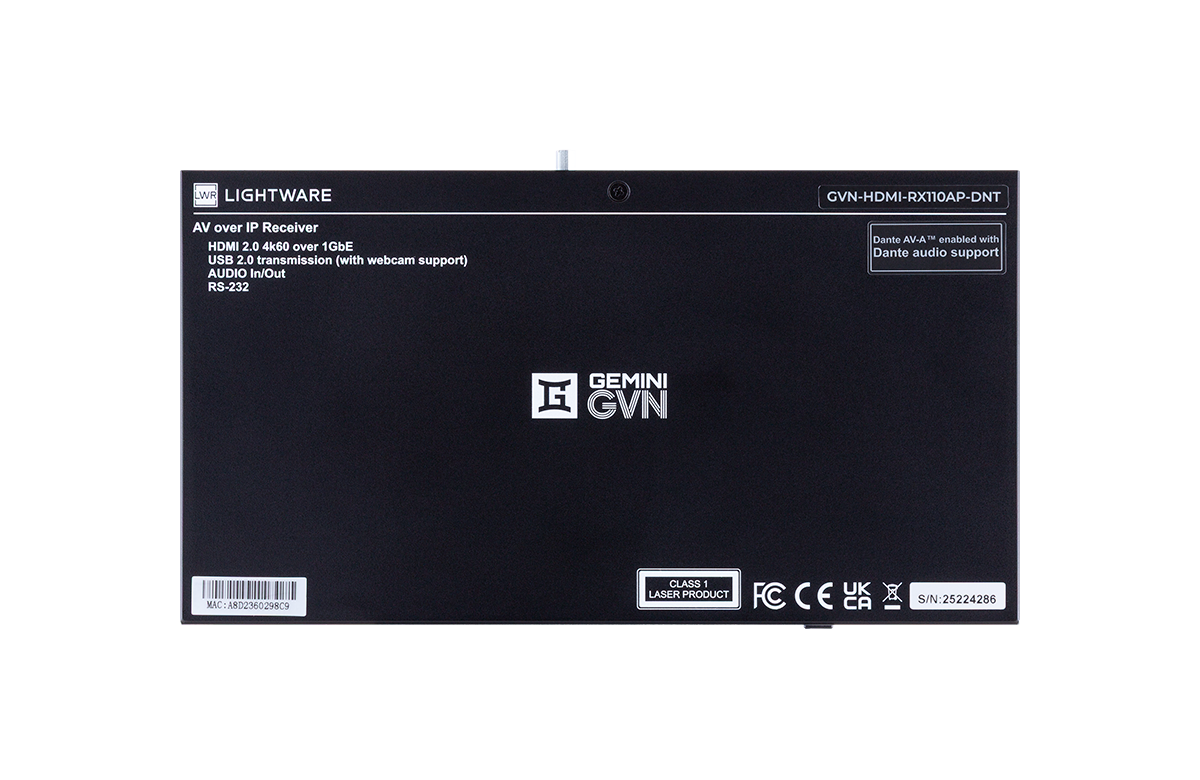

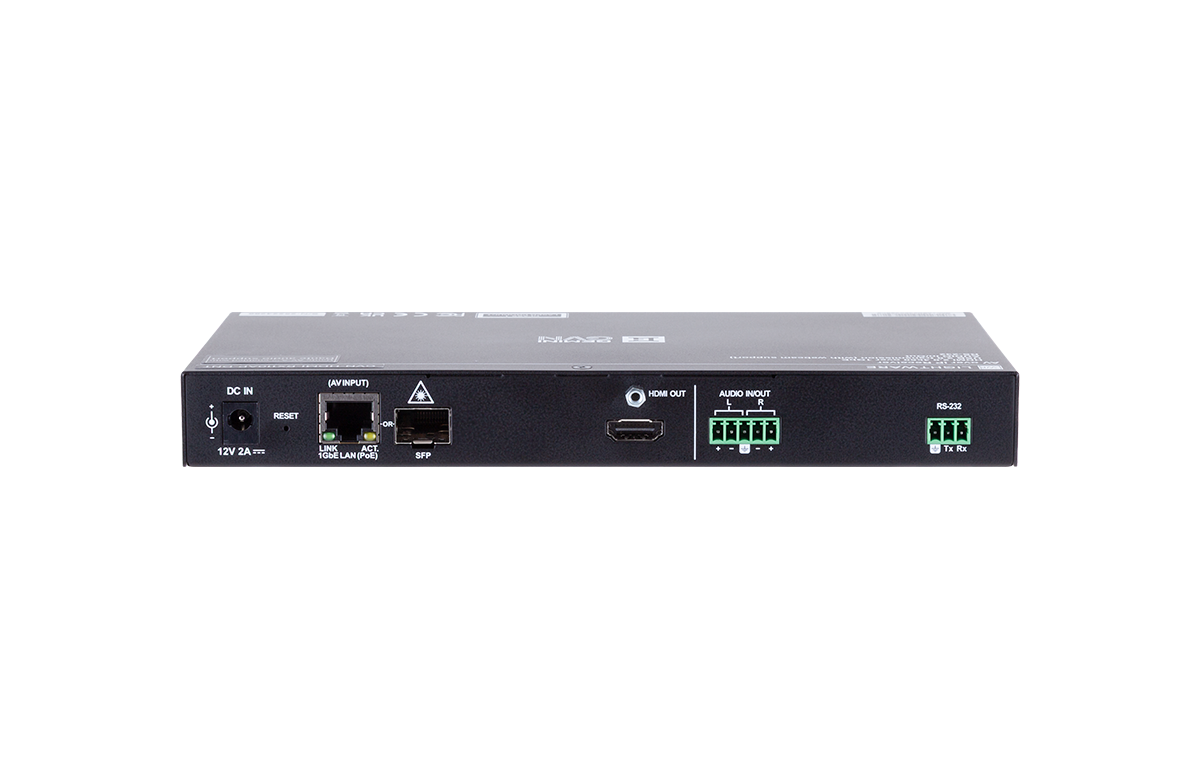

GVN-HDMI-RX110AP-DNT
SKU: 91810038
Coming soon1G AV-over-IP Receiver for 4K60 signals with Dante audio support
Details
Lightware's revolutionary GEMINI GVN 1Gb AV-over-IP extender family, where scalability, flexibility, and rapid deployment take center stage. Designed to meet the demands of modern audiovisual environments, the GEMINI GVN is a virtual matrix system that seamlessly switches audio, video, and USB transmission with unparalleled ease.
At the heart of the GEMINI GVN system is the Matrix Management Unit (MMU) device, providing full functionality from a centralized control point, eliminating the need for individual endpoint configurations. With seamless switching capabilities, users can effortlessly manage their audiovisual setup for optimal performance.
Equipped with Lightware's Advanced EDID Management system, the GEMINI GVN ensures that the decoders are capable of scaling HDMI 2.0 video signals up to a maximum resolution of 4K UHD @ 60 Hz either on CAT (up to 100 meters) or on fiber optics (up to 10 kms) with HDR, HDR+, and Dolby Vision support.
Supporting RS-232 control channel, the GEMINI GVN offers enhanced control options for a seamless user experience. The built-in USB ports support KVM functionality and can handle USB 2.0 touch screen, webcam, mass storage, further enhancing connectivity and versatility.
Compliant with HDCP standards, the GEMINI GVN guarantees secure content transmission. With support for the DHCP network management protocol, configuration and management become effortless, simplifying system integration.

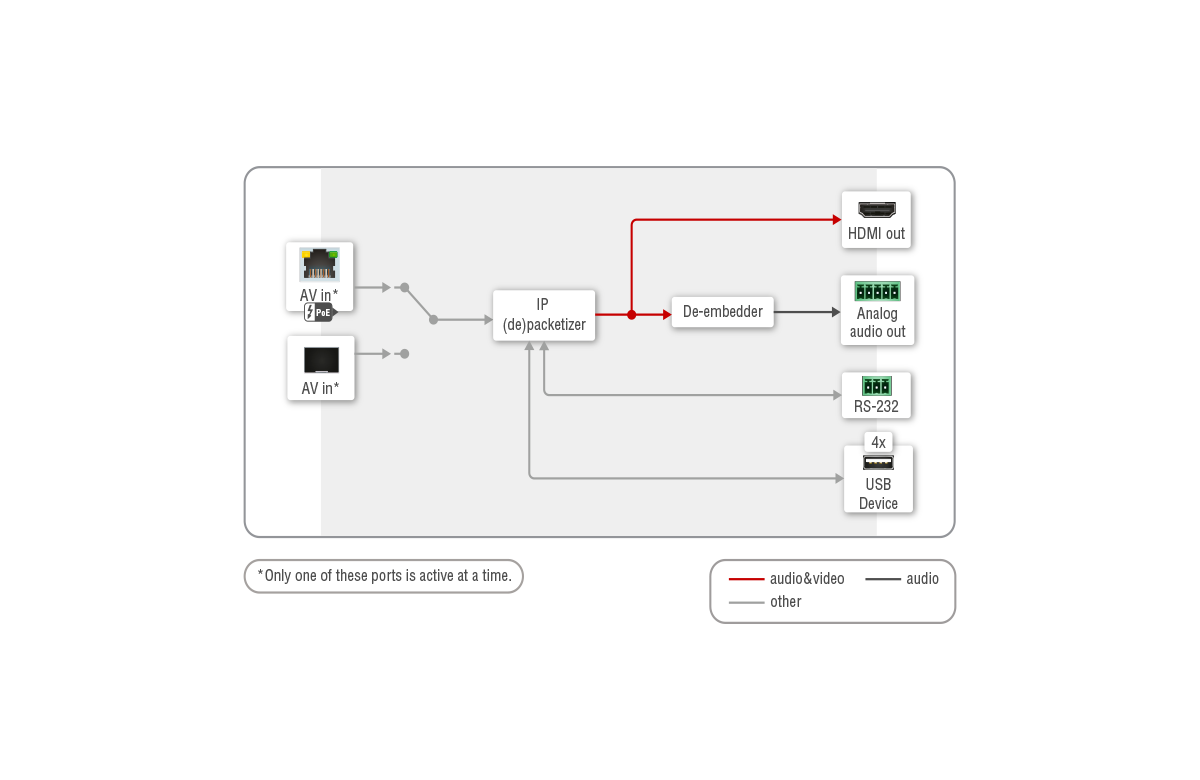

The Dante variants can connect the audio layer to the Dante network in the Gemini ecosystem and send/receive streams back and forth. On the transmitter side, the stereo LPCM audio embedded in HDMI or received via the analog input can be sent to the Dante network, or the audio received from the Dante network can be output via the analog output. On the receiver side, receive a Dante audio stream and embed it in the HDMI output or output an analog output. The receiver can transmit audio from the analog input to the Dante network.
The TX device utilizes PoE (IEEE 802.3af) remote power supply, while the RX requires PoE+, providing efficient power delivery for seamless operation. As part of our commitment to sustainability, no power supply is included, but available separately if needed, aligning with our green policy.
Operating on a 1G Ethernet network, the GEMINI GVN boasts low power consumption (~10W), reducing energy costs and environmental impact. Additionally, our commitment to sustainability extends to our packaging, which is made from paper-based materials, further minimizing our ecological footprint.
Specification Table
| General | ||
|---|---|---|
| Compliance | CE, UKCA | |
| EMC (emission) | EN 55032:2015+A1:2020 | |
| EMC (immunity) | EN 55035:2017+A11:2020 | |
| RoHS | EN 63000:2018 | |
| Electrical safety | EN 62368-1:2020 | |
| Warranty | 3 years | |
| Operating temperature | 0° to +45˚C (+32° to +113˚F) | |
| Operating humidity | 10% to 90%, non-condensing | |
| Cooling | Passive | |
| Power | ||
| GVN-HDMI-TX210AP | ||
| Power consumption (max, measured) | 11 W | |
| Heat dissipation (max) | 38 BTU/h | |
| GVN-HDMI-RX110AP | ||
| Power consumption (max, measured) | 11 W* | |
| Heat dissipation (max) | 38 BTU/h | |
| * without USB devices | ||
| GVN-MMU-X100 | ||
| Power consumption (max, measured) | 4 W | |
| Heat dissipation (max) | 14 BTU/h | |
| Enclosure | ||
| Enclosure Material | 1 mm steel | |
| Dimensions in mm | 221W x 120D x 26H | |
| Dimensions in inch | 8.7W x 4.14D x 1.02H | |
| Weight (GVN-MMU-X100) | 700 g (1.54 lb) | |
| Weight (GVN-HDMI-TX210AP) | 712 g (1.57 lb) | |
| Weight (GVN-HDMI-RX110AP) | 714 g (1.57 lb) | |
| Video Input (GVN-HDMI-TX210AP) | ||
| HDMI Input Port | ||
| Connector type | 19-pole HDMI type A receptacle | |
| AV standard | DVI 1.0, HDMI 1.4, HDMI 2.0 | |
| HDCP Compliance | v2.2 | |
| Color space | RGB, YCbCr | |
| Supported resolutions at 8 bits/color | up to 3840x2160@60Hz (4:4:4) or 3840x2160@60Hz (4:2:0), 1920x1080@60Hz (4:4:4) or 4096x2160@60Hz (4:2:0) up to 12 bits/color | |
| Dante Digital Audio | 2×2 channels of Dante/AES67 audio | |
| Audio formats | Embedded LPCM, Dolby Digital 5.1 ch, Dolby Digital Plus, Dolby Digital Pro-Logic, Dolby TrueHD, DTS:X, Dolby Atmos, DTS 5.1 ch, DTS 96/24, DTS-ES Discrete, DTS-ES Matrix, DTS-HD High Resolution Audio, DTS-HD Master Audio | |
| AV Input Port (GVN-HDMI-RX110AP) | ||
| Connector type | RJ45 connector | |
| Power Over Ethernet | yes (IEE 802.3at) | |
| HDCP Compliance | v2.2 | |
| Color space | RGB, YCbCr | |
| Supported resolutions at 8 bits/color | up to 4096x2160@60Hz (4:4:4) or 4096x2160@60Hz (4:2:0), up to 3840x2160@60Hz (4:4:4) or 3840x2160@60Hz (4:2:0); 1920x1080@60Hz (4:4:4) or 4096x2160@60Hz (4:2:0) up to 12 bits/color | |
| Audio formats | 8 channel PCM, Dolby TrueHD; DTS-HD Master Audio7.1 | |
| SFP Module Slot (GVN-HDMI-RX110AP) | ||
| Number of ports | 1 | |
| Supported data rate | 1 Gbps | |
| Accepted interfaces | SFP optical transceiver modules | |
| Video Output (GVN-HDMI-TX210AP) | ||
| HDMI Output Port | ||
| Connector type | 19-pole HDMI type A receptacle | |
| AV standard | DVI 1.0, HDMI 1.4, HDMI 2.0 | |
| HDCP Compliance | v2.2 | |
| Color space | RGB, YCbCr | |
| Supported resolutions at 8 bits/color | up to 3840x2160@60Hz (4:4:4) or 3840x2160@60Hz (4:2:0), 1920x1080@60Hz (4:4:4) or 4096x2160@60Hz (4:2:0) up to 12 bits/color | |
| Dante Digital Audio | 2×2 channels of Dante/AES67 audio | |
| Audio formats | Embedded LPCM, Dolby Digital 5.1 ch, Dolby Digital Plus, Dolby Digital Pro-Logic, Dolby TrueHD, DTS:X, Dolby Atmos, DTS 5.1 ch, DTS 96/24, DTS-ES Discrete, DTS-ES Matrix, DTS-HD High Resolution Audio, DTS-HD Master Audio | |
| Video Output (GVN-MMU-X100) | ||
| HDMI Output Port | ||
| Connector type | 19-pole HDMI type A receptacle | |
| AV standard | DVI 1.0, HDMI 1.4, HDMI 2.0 | |
| HDCP Compliance | v2.2 | |
| Color space | RGB, YCbCr | |
| Supported resolutions at 8 bits/color | up to 3840x2160@60Hz (4:4:4) or 3840x2160@60Hz (4:2:0), 1920x1080@60Hz (4:4:4) or 4096x2160@60Hz (4:2:0) up to 12 bits/color | |
| Dante Digital Audio | 2×2 channels of Dante/AES67 audio | |
| Audio formats | Embedded LPCM, Dolby Digital 5.1 ch, Dolby Digital Plus, Dolby Digital Pro-Logic, Dolby TrueHD, DTS:X, Dolby Atmos, DTS 5.1 ch, DTS 96/24, DTS-ES Discrete, DTS-ES Matrix, DTS-HD High Resolution Audio, DTS-HD Master Audio | |
| AV Output Port (GVN-HDMI-TX210AP) | ||
| Connector type | RJ45 connector | |
| Power Over Ethernet | yes (IEE 802.3af) | |
| HDCP Compliance | v2.2 | |
| Color space | RGB, YCbCr | |
| Supported resolutions at 8 bits/color | up to 4096x2160@60Hz (4:4:4) or 4096x2160@60Hz (4:2:0), up to 3840x2160@60Hz (4:4:4) or 3840x2160@60Hz (4:2:0); 1920x1080@60Hz (4:4:4) or 4096x2160@60Hz (4:2:0) up to 12 bits/color | |
| Audio formats | 8 channel PCM, Dolby TrueHD; DTS-HD Master Audio7.1 | |
| SFP Module Slot (GVN-HDMI-TX210AP) | ||
| Number of ports | 1 | |
| Supported data rate | 1 Gbps | |
| Accepted interfaces | SFP optical transceiver modules | |
| Video Output (GVN-HDMI-RX110AP) | ||
| HDMI Output Port | ||
| Connector type | 19-pole HDMI type A receptacle | |
| AV standard | DVI 1.0, HDMI 1.4, HDMI 2.0 | |
| HDCP Compliance | v2.2 | |
| Color space | RGB, YCbCr | |
| Supported resolutions at 8 bits/color | up to 3840x2160@60Hz (4:4:4) or 3840x2160@60Hz (4:2:0), 1920x1080@60Hz (4:4:4) or 4096x2160@60Hz (4:2:0) up to 12 bits/color | |
| Audio formats | Embedded LPCM, Dolby Digital 5.1 ch, Dolby Digital Plus, Dolby Digital Pro-Logic, Dolby TrueHD, DTS:X, Dolby Atmos, DTS 5.1 ch, DTS 96/24, DTS-ES Discrete, DTS-ES Matrix, DTS-HD High Resolution Audio, DTS-HD Master Audio | |
| Dante Digital Audio | 2×2 channels of Dante/AES67 audio | |
| Ethernet Ports (GVN-MMU-X100) | ||
| Connector type | RJ45 female connector | |
| Ethernet data rate | 1 Gigabit, full duplex with autodetect | |
| Power over Ethernet (PoE) | via GVN Network RJ45 connector (IEEE802.3af) | |
| USB Ports | ||
| Connector type | A-type receptacle | |
| USB compliance | USB 2.0 (5V DC) | |
| Connector type | B-type receptacle | |
| USB compliance | USB 2.0 (5V DC) | |
| RS-232 Ports | ||
| Connector type | 3-pole Phoenix connector | |
| Baud rates | between 9600 and 115200 baud | |
| Data bits | 8 | |
| Parity | None / Odd / Even | |
| Stop bits | 2-Jan | |
| Analog Audio Output | ||
| Connector type | 5-pole Phoenix connector | |
| Audio formats | 2-ch LPCM | |
| Sampling frequency | 48 kHz |
Features
SFP cage for single mode or multimode SFP modules (the optical module is not part of the product)
Transmission distance of up to 80km (when SM SFP module is used)
Transmission distance of up to 550m (when MM SFP module is used)
Supports PoE PD (IEEE 802.3af)
HDMI 2.0 input up to 4K@60Hz 4:4:4 resolution
HDCP 2.2 support
Visually Lossless Video Codec (proprietary codec based on JPEG2000)
Zero frame latency (~3 ms end-to-end latency at 4K60 transmission)
local HDMI 2.0 output up to 4K@60Hz 4:4:4 resolution
All audio formats supported by the HDMI 2.0 standard are supported up to 7.1-channels, LPCM, compressed audio and High-Bitrate audio (e.g. DTS-X, Dolby Digital, Dolby Atmos)
Analog audio support (LPCM stereo) with selectable direction (input or output)
Offers a RS-232 port
Support the distance up to 100m (328ft) between the transmitter endpoint and Network Switch (Cat5e)
Supports full USB2.0 over IP
2×2 channels of Dante/AES67 audio
Supports USB K+M (keyboard and mouse) over IP
Other Features
External UL certified 12V power supply (not part of the product, can be purchased separately)
Compatible with Lightware rack shelf
eco-friendly paper-based packaging
UKCA, CB, CE EMC, CE LVD, FCC Certification
Security including AES-256 encryption, 802.1x, SSH
Support downscaled, preview MJPEG video stream up to 1280x720
