HDMI-TPN-TX207AU2K
SKU: 91710001
ShippingSDVoE compatible HDMI 2.0 transmitter
Details
Scaling Receiver for HDMI 2.0 Signals
The HDMI-TPN-TX207AU2K and HDMI-TPN-RX107AU2K transmitter and receiver devices are based on SDVoE technology and allow users to extend HDMI 2.0 compliant video, audio and control signals from a single source to multiple destinations through 10G Ethernet networks. Moreover, these USB2.0 capable extenders also allow transparent and composite USB2.0 transmission in the opposite direction.
Ensure Seamless Connectivity
Beyond the benefits of sending high-resolution video and USB2.0 data over long distances, the extenders are also able to handle various connectivity standards, including a 1G user Ethernet channel over the 10G link, as well as command injection into RS-232.
The Gigabit Ethernet ports are also valuable additions, allowing users to connect Ethernet capable devices to the network directly through the TPN extenders. This is particularly useful for controlling external devices like projectors and displays.
Take Control with EDID Management
HDCP 2.3 and basic EDID management functionality are also among the features offered by these devices, such as their connectivity and easy integration into a wide range of AV operations and with 3rd party devices, such as the Christie Terra projector.
Seamlessly Connect USB-HID

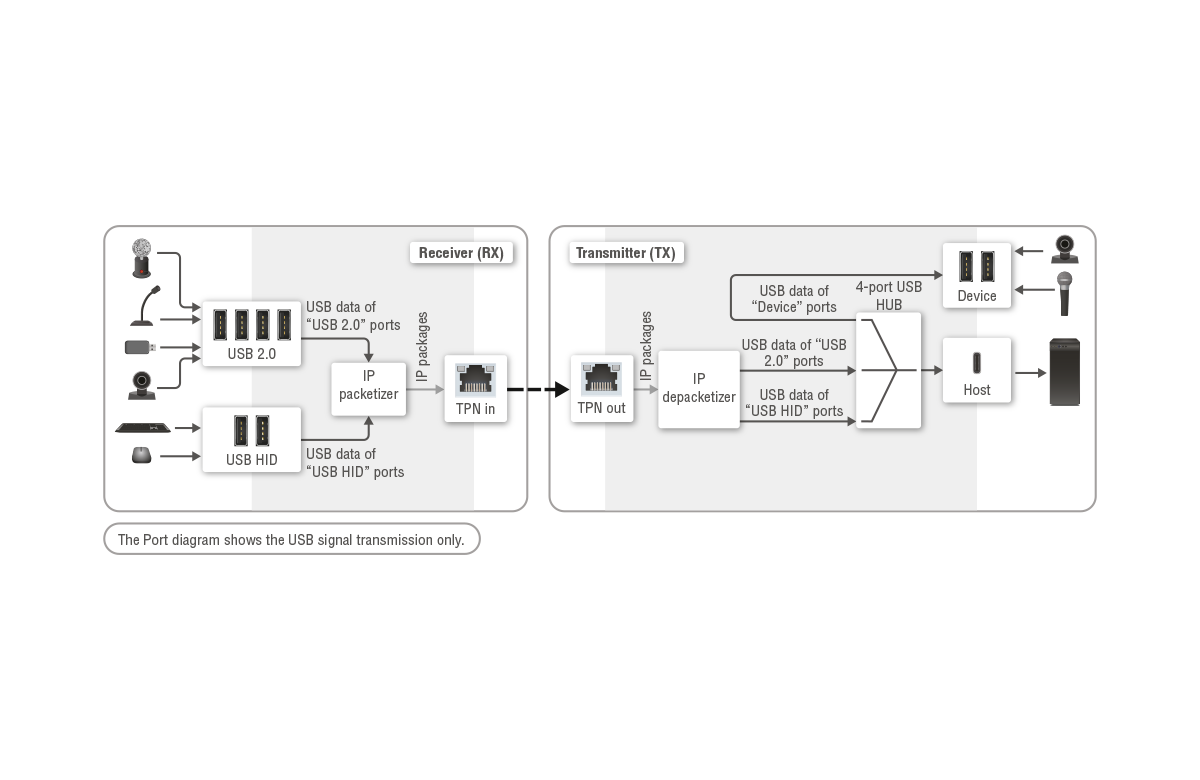

Composite USB2.0 transmission adds the ability to connect remote USB-HID devices to a host computer through an extender pair without re-enumeration on the host side. Besides this being a convenient and instantaneous way of switching keyboard and mouse control between multiple hosts, it also allows for added-value features like mouse roaming and hotkey detection.
Transparent USB2.0, on the other hand, provides support for various types of USB2.0 devices like webcams, microphones, touch displays just to name a few.
When using direct connection in point-to-point mode between HDMI-TPN-TX207AU2K and HDMI-TPN-RX107AU2K endpoints, both the transmitter and receiver are compatible with Lightware’s TPX family of products.
Seamless HDMI Solutions
Effortless AV Connectivity for Professionals
The HDMI-TPN series delivers high-performance HDMI signal extension, ensuring reliable video and audio transmission for professional AV installations over long distances.
Specification Table
| General | |
| Compliance | UL, CE |
| Electrical safety | IEC/EN/UL/CSA 62368-1:2014, Class II |
| EMC (emission) | IEC/EN 55032:2015 |
| EMC (immunity) | IEC/EN 55035:2017 |
| RoHS | EN 63000:2018 |
| Warranty | 3 years |
| Operating temperature | 0° to +50°C (+32° to +122°F) |
| Operating humidity | 10% to 90%, non-condensing |
| Cooling | passive |
| Power | |
| Power supply option | Power adaptor / PoE |
| Power consumption (max) | 8.1W |
| Power consumption (min) | |
| Heat dissipation | 27.6 BTU/h (max) |
| Power over Ethernet (PoE) | via TPN output (IEEE802.3af) (can receive power) |
| Power adaptor | |
| Supported power source | 100-240 V AC; 50/60 Hz |
| Supplied power | 48V DC, 0.83A |
| AC power plug | Interchangable (EU, UK, JP/US, AUS/NZ) |
| DC power plug | 2-pole Phoenix, orange |
| Enclosure | |
| Rack mountable | No |
| Enclosure material | 1 mm steel |
| Dimensions in mm | 100.4 W x 137.8 D x 26 H |
| Dimensions in inch | 3.95 W x 5.43 D x 1.02 H |
| Weight | 0.476 kG |
| Video inputs | |
| HDMI input | |
| Connector type | 19-pole HDMI Type A receptacle |
| A/V standard | DVI 1.0, HDMI 1.4, HDMI 2.0 |
| HDCP compliance | HDCP 2.3 |
| Color space | RGB, YCbCr |
| Video delay | 0 frame |
| Supported resolutions at 8 bits/color * | |
| up to 4096x2048@60Hz (4:4:4) | |
| up to 3840x2160@60Hz (4:4:4) | |
| 4096x2048@60Hz (4:2:2) up to 10 bits/color | |
| Reclocking | Pixel Accurate Reclocking |
| 3D support | yes |
| Audio formats | All HDMI 2.0 formats including multi-channel PCM, Dolby True-HD and DTS-HD master audio |
| EDID management | |
| EDID emulation | yes, default EDID and 1 locally stored EDID |
| EDID memory | 1 stored EDID |
| Supported standard | EDID v1.3 |
| Video Outputs | |
| TPN output | |
| Connector type | RJ45 connector |
| Power over Ethernet (PoE) | IEEE 802.3af (PD) |
| Compliance | SDVoE |
| HDCP compliance | HDCP2.3 |
| Transferred signals | Video, Audio, RS-232, Infrared, Ethernet |
| Color space | RGB, YCbCr |
| Video delay | 0 frame |
| Supported resolutions at 8 bits/color * | up to 4096x2048@60Hz (4:4:4) |
| up to 3840x2160@60Hz (4:4:4) | |
| 4096x2048@60Hz (4:2:2) up to 10 bits/color | |
| Audio formats | All HDMI 2.0 formats including multi-channel PCM, Dolby True-HD and DTS-HD master audio |
| Control Ports | |
| RS-232 serial port | |
| Connector type | 3-pole Phoenix connector |
| Baud rates | Between 4800 and 115200 Baud |
| Data bits | 8 or 9 |
| Parity | None / Odd / Even |
| Stop bits | 1 / 1.5 / 2 |
| Ethernet port | |
| Connector type | RJ45 female connector (2) |
| Ethernet data rate | 10/100/1000Base-T, full duplex with autodetect |
| Power over Ethernet (PoE) | No |
| Infrared port | |
| Output connector type | 3.5 mm TS (approx. 1/8" jack) |
| Input carrier frequency | 38 kHz |
| Output signal | modulated (38kHz) |
Features
Allows for the transmission of HDMI 2.0
embedded audio, Ethernet, RS-232 and USB2.0 between a single source and multiple sinks through a 10G Ethernet switch
Transparent USB transmission mode
for various USB2.0 devices including cameras, microphones, and touch screens and composite USB transmission mode for USB-HID devices
Plug&Play compatible
with Lightware TPX devices
Can be remote powered through CATx cable
PoE PD
Supports HDMI 4K signal formats
4K UHD @60Hz RGB 4:4:4, up to 18 Gbps
HDR and Low Latency Dolby Vision support
