MX2-16x16-HDMI20
SKU: 91310051
ShippingThe MX2-16x16-HDMI20 is a member of the Lightware HDMI 2.0 standalone matrix switcher family supporting uncompromised 4K UHD resolution at 60Hz 4:4:4.
Details
Uncompromised 4K UHD for Ultimate Visual Performance
The MX2-16x16-HDMI20 is a member of the HDMI 2.0 standalone matrix switcher family supporting uncompromised 4K UHD resolution at 60Hz 4:4:4.
Ideal for Rental and Fixed Installations
It has an outstanding port density that makes it particularly suitable for rental and fix install applications, as well as for future-proof operation centers. It is a perfect choice for installations where at most 16 HDMI 2.0 compliant input and output ports are required.
Additional Features
This standalone product has 16 HDMI 2.0 inputs and 16 HDMI 2.0 outputs transmitting up to 4K at 60Hz in 4:4:4 format, while supporting 3D, Dolby TrueHD and DTS-HD Master Audio.
MX2 HDMI 2.0 Matrix Switchers
For Professional Environments
The MX2 HDMI 2.0 Matrix Switcher family provides high-quality 4K UHD switching with HDMI 2.0, HDCP 2.2, and advanced audio support, ideal for corporate and large-scale event installations.
Specification Table
| Specification* | |

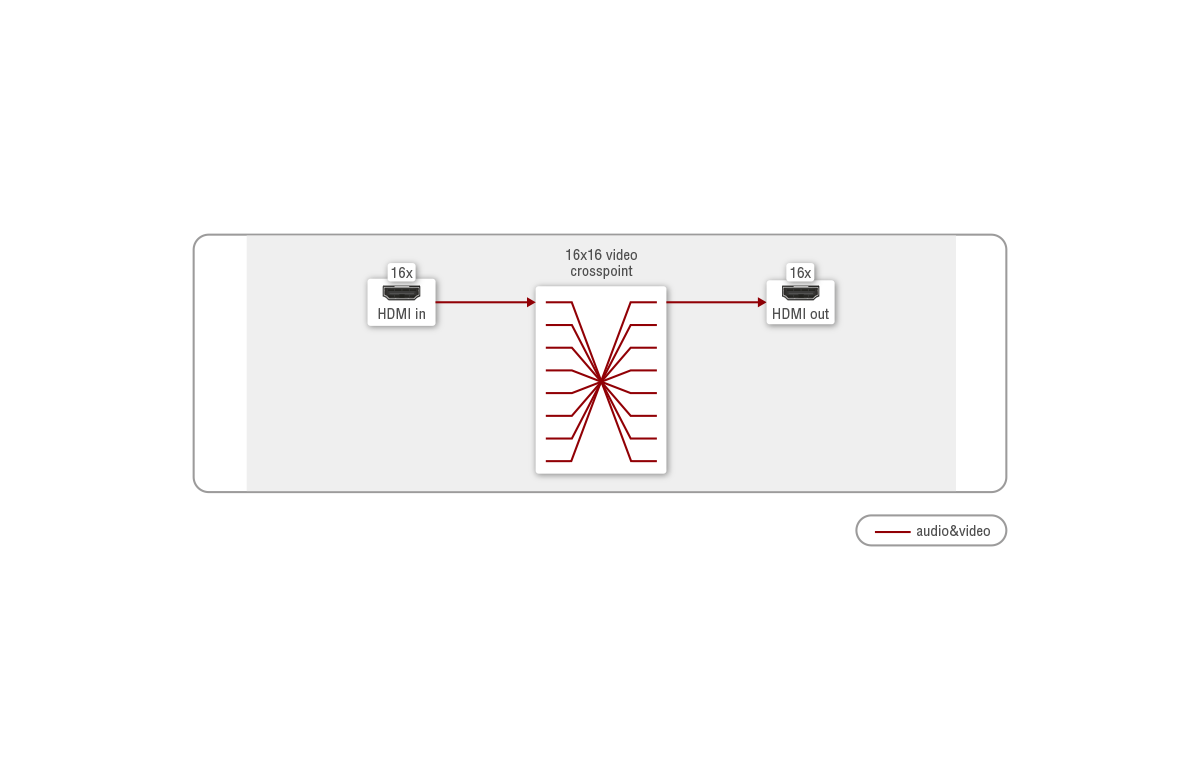

| Routing | 16 input to 16 output, non-blocking architecture |
| Speed | 18 Gbps per port |
| Resolution | Up to 4096x2160@60Hz at RGB or YCbCr 4:4:4 (up to 600MHz pixel clock) |
| Height | 3RU |
| Mounting | Rack mountable, removable rack ears |
* Specifications are subject to change without notice
| Connectors | |
| Power | IEC standard, 110/220V (one for normal build, two for optional redundancy) |
| Video inputs | 19-pole HDMI 2.0 |
| Video outputs 19-pole HDMI 2.0 | 19-pole HDMI 2.0 |
| Serial control | 3-pole Phoenix |
| Ethernet | RJ45 |
| USB | Mini USB B |
Features
HDCP 2.2 and HDCP 1.4 compliant
with cross conversion capabilities
Supports HDMI 4K signal formats
4K UHD @60Hz RGB 4:4:4, up to 18 Gbps
HDMI 2.0, HDMI 1.4 and DVI 1.0 compliant
HDR and Low Latency Dolby Vision support
High bitrate Audio Support
including Dolby Atmos, TrueHD, DTS-HD
