MX2-16x16-HDMI20-Audio-R
SKU: 91310054
Details
Advanced 4K HDMI Switching with Audio Integration and Redundancy
The MX2-16x16-HDMI20-Audio is a member of the HDMI 2.0 standalone matrix switcher family that supports uncompromised 4K UHD resolution at 60Hz 4:4:4 and allows embedding audio to and deembedding audio from the HDMI stream. This device has an R type designation signifying a dual redundant power source with two, independent, rugged power connectors and reinforced RS-232 and Ethernet ports.
It has an outstanding port density that makes it particularly suitable for fix-install applications and for future-proof operation centers. It is also a perfect choice for installations where a huge number of HDMI 2.0 compliant input and output ports are required along with audio inputs and outputs.
Additional Features
This standalone product has 16x HDMI 2.0 inputs and 16x HDMI 2.0 outputs transmitting up to 4K at 60Hz in 4:4:4 format, while supporting 3D, Dolby TrueHD and DTS-HD Master Audio.
Four of its input ports have audio connectors for embedding analog stereo audio into the HDMI stream, while eight audio connectors (four connectors next to the output ports, plus four independent audio connectors) can provide de-embedded stereo LPCM audio from any of the inputs for amplifiers and audio systems.
MX2 HDMI 2.0 Matrix Switchers
For Professional Environments
The MX2 HDMI 2.0 Matrix Switcher family provides high-quality 4K UHD switching with HDMI 2.0, HDCP 2.2, and advanced audio support, ideal for corporate and large-scale event installations.
Specification Table
| Specification* | |
| Routing | 16 input to 16+4 output, non-blocking architecture |
| Speed | 18 Gbps per port |
| Resolution | Up to 4096x2160@60Hz at RGB or YCbCr 4:4:4 (up to 600MHz pixel clock) |
| Height | 3RU |
| Mounting | Rack mountable, removable rack ears |
* Specifications are subject to change without notice

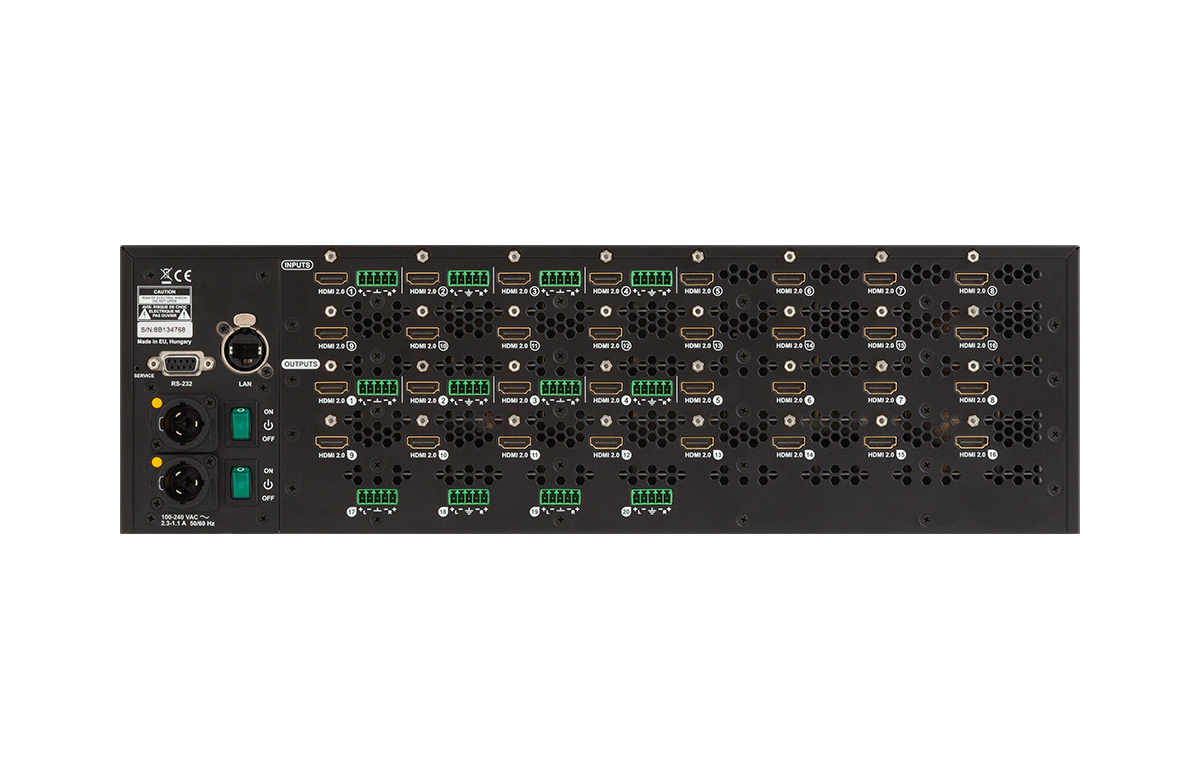

| Connectors | |
| Power | 2x Neutrik Powercon, 110/220V |
| Video inputs | 19-pole HDMI 2.0 |
| Video outputs 19-pole HDMI 2.0 | 19-pole HDMI 2.0 |
| Serial control | D-sub 9-pole |
| Ethernet | Neutrik Ethercon |
| USB | Mini USB B |
Features
Audio embedding and de-embedding
HDCP 2.2 and HDCP 1.4 compliant
with cross conversion capabilities
Supports HDMI 4K signal formats
4K UHD @60Hz RGB 4:4:4, up to 18 Gbps
HDMI 2.0, HDMI 1.4 and DVI 1.0 compliant
HDR and Low Latency Dolby Vision support
High bitrate Audio Support
including Dolby Atmos, TrueHD, DTS-HD
