MX2-24x24-HDMI20
SKU: 91310055
ShippingMX2-24x24-HDMI20 is a member of the HDMI 2.0 standalone matrix switcher family that supports uncompromised 4K UHD resolution at 60Hz 4:4:4.
Details
Uncompromised 4K UHD for Ultimate Visual Performance
MX2-24x24-HDMI20 is a member of the HDMI 2.0 standalone matrix switcher family that supports uncompromised 4K UHD resolution at 60Hz 4:4:4.
Perfect for Large-Scale Installations and Future-Proof Solutions
It has a huge number of input and output ports resulting in outstanding port density that makes it particularly suitable for rental and fix-install applications and for future-proof operation centers. It is a perfect choice for installations where a huge number of HDMI 2.0 compliant input and output ports are required.
MX2 HDMI 2.0 Matrix Switchers
For Professional Environments
The MX2 HDMI 2.0 Matrix Switcher family provides high-quality 4K UHD switching with HDMI 2.0, HDCP 2.2, and advanced audio support, ideal for corporate and large-scale event installations.
Specification Table
| Specification* | |

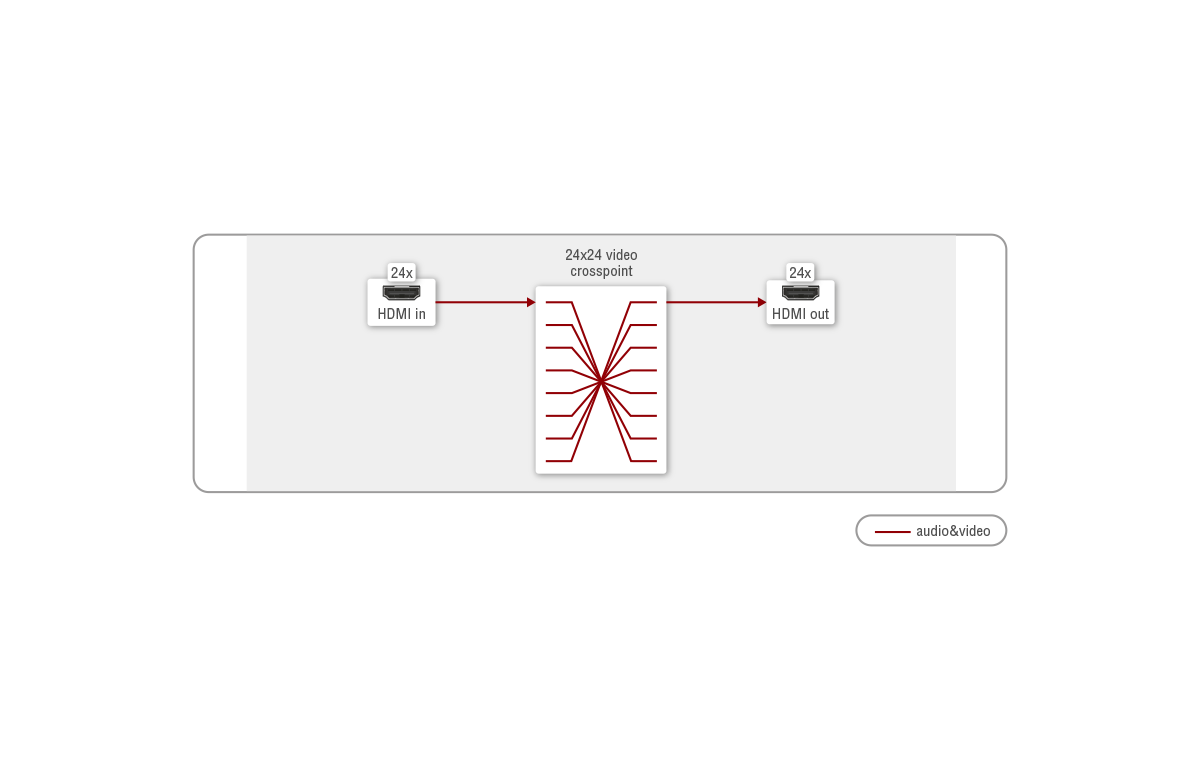

| Routing | 24 input to 24 output, non blocking architecture |
| Speed | 18 Gbps per port |
| Resolution | Up to 4096x2160@60Hz at RGB or YCbCr 4:4:4 (up to 600MHz pixel clock) |
| Height | 4RU |
| Mounting | Rack mountable, removable rack ears |
* Specifications are subject to change without notice
| Connectors | |
| Power | IEC standard, 110/220V (one for normal build, two for optional redundancy) |
| Video inputs | 19-pole HDMI 2.0 |
| Video outputs | 19-pole HDMI 2.0 |
| Serial control | 3-pole Phoenix |
| Ethernet | RJ45 |
| USB | Mini USB B |
Features
HDCP 2.2 and HDCP 1.4 compliant
with cross conversion capabilities
Supports HDMI 4K signal formats
4K UHD @60Hz RGB 4:4:4, up to 18 Gbps
HDMI 2.0, HDMI 1.4 and DVI 1.0 compliant
HDR and Low Latency Dolby Vision support
High bitrate Audio Support
including Dolby Atmos, TrueHD, DTS-HD
