MX2M-4HDMI20-IB
SKU: 91120045
ShippingHDMI 2.0 Input Board
Details
Seamless Integration
The MX2M-4HDMI20-IB is a HDMI 2.0 compatible input board for the MX2M modular matrix family. The hot-swappable input board has four HDMI connectors of type A, all with flange, allowing easy installation and operation on a wide range of applications where flexibility and versatility are key concerns.
All inputs are HDMI 2.0 compliant and can pass HDMI signals with a pixel clock frequency of up to 597 MHz, allowing signal transmission with a maximum resolution of 4K UHD @ 60Hz 4:4:4.
Streamline Video and Audio Transmission
Advanced professional features of the board include audio de-embedding from the audio layer HDCP enable/disable mode, support for signals with high dynamic range or unusual dimensions, EDID management, and Frame detector.
The board extracts the audio from all four incoming HDMI signals to the audio layer, through which the audio streams can be routed to any of the video or audio output ports.
Versatile Connectivity for Modern AV Needs

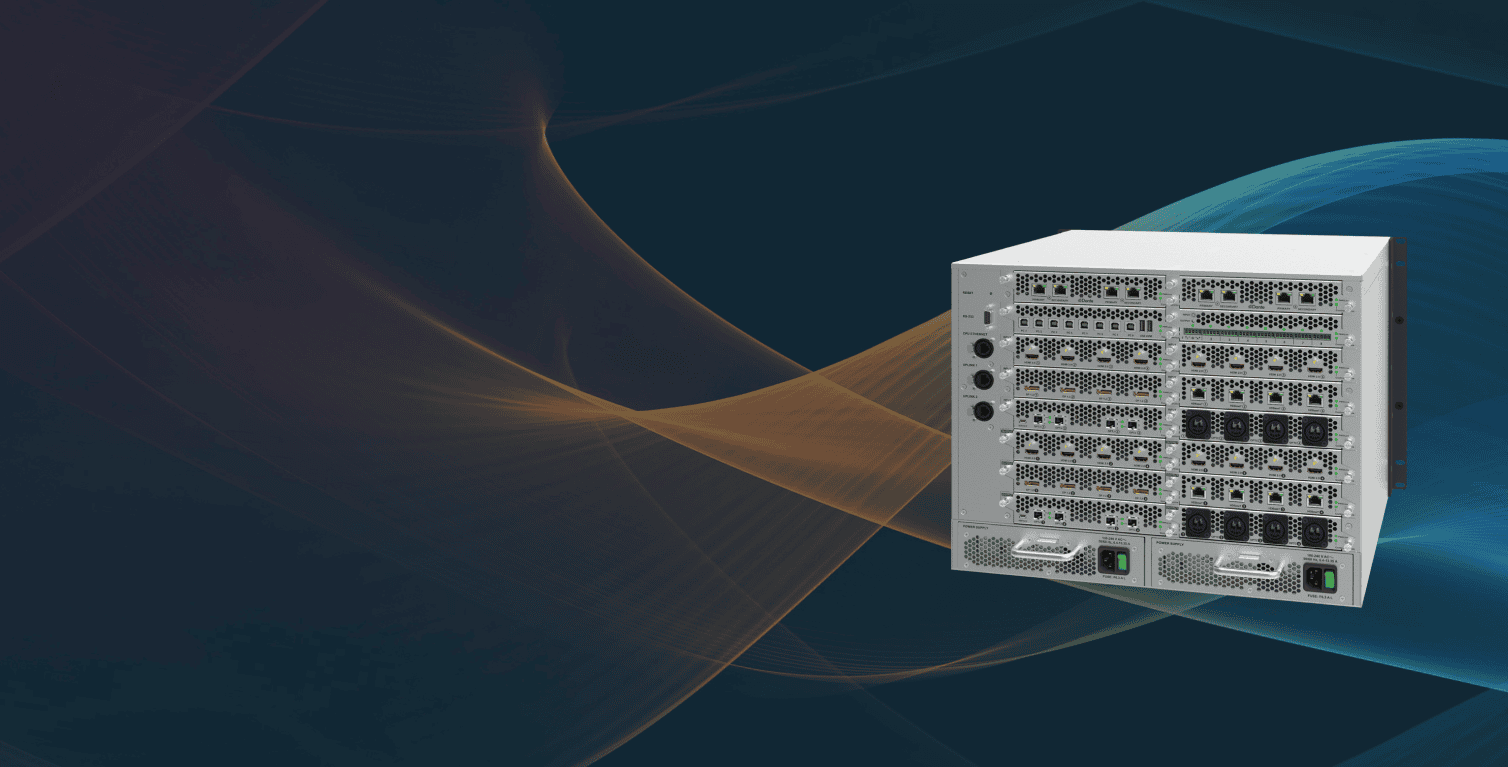

Seamless Integration for Large Systems
The MX2M series delivers modular 4K UHD matrix switchers, perfect for broadcast, control centers, and large installations. It ensures reliable routing and scalable, future-proof performance.
Specification Table
| Video | |
| Resolution | Up to UHD/4k@60Hz 4:4:4 (with support for extreme formats e.g 7kx1k@60Hz 4:4:4) |
| Signal Type | HDMI 2.0, HDMI 1.x, DVI |
| Maximum data rate | 18 Gbps |
| Maximum pixel clock | 600 MHz |
| Content protections | HDCP 1.x, HDCP 2.2, HDCP 2.3 |
| Connector type | 4x HDMI receptacle type A with and without flange |
| Video processing | Signal parameter measurement |
| Standards | HDMI 2.0, HDMI 1.4, DVI |
| Audio |
||
| Audio mode | Simultaneous pass-through and de-embedding to the Audio layer | |
| Supported audio formats for pass-through | All HDMI2.0 audio formats | |
| Supported audio formats for de-embedding | Uncompressed | LPCM (up to 8 channels, 192 kHz, 24 bits per sample) |
| Compressed | MPEG 1 L1, MPEG 1 L2, MPEG 1 L3, AC-3, Dolby Digtal, Dolby Digital Plus, Dolby Digital EX, Dolby Digital Surround EX, DTS, DTS ES | |
| Compressed HBR | Dolby Atmos, Dolby TrueHD, DTS-HD DA | |
| General | ||
| Powering | via MX2M frame | |
| Power consumption (max) | 11 W | |
| Thermal dissipation (max) | 37,5 BTU/hr | |
| Weight | TBD | |
| Operating conditions | Ambient temperature | 0-50oC |
| Relative humidity | 0-90% (non-condensing) | |
| Transportation conditions | Ambient temperature | -20-70oC |
| Relative humidity | 0-95% (non-condensing) | |
| Complience | EN 55032:2015 IEC 61000-3-3:2013+AMD1:2017 IEC 61000-3-2:2018 FCC CFR Title 47, Part 15, Subpart B |
|
| Warranty | 3 years | |
Features
HDCP 2.3 and HDCP 1.4 support
with cross conversion capabilities
DisplayID support for forcing extreme formats
(e.g. 7kx1k@60Hz 4:4:4) from the connected source
Pass-through and de-embedding of embedded audio
including uncompressed (LPCM, DSD), compressed (MPEG 1 L1, MPEG 1 L2, MPEG 1 L3, AC-3, Dolby Digital, Dolby Digital Plus, Dolby Digital EX, Dolby Digital Surround EX, DTS, DTS ES)
Pass-through and de-embedding of embedded audio
also including compressed HBR (Dolby Atmos, Dolby TrueHD, DTS-HD DA) formats
Hot-swap support
HDMI 2.0, HDMI 1.x, and DVI compatible
CEC support (command injection)
Supports HDMI 4K signal formats
4K UHD @60Hz RGB 4:4:4, up to 18 Gbps
Supports HDMI 3D signal formats
(frame packing, side-by-side and top-bottom)
Supports deep color signals
(24/30/36 bit RGB/YCbCr 4:4:4)
No signal latency, zero frame delay
