UCX-4x2-HC30D
SKU: 91310082
Call Sales for AvailabilityUniversal Matrix Switcher with USB-C connectivity and Dante Audio
Details
Bring Collaboration Spaces to the Next Level
The UCX-4x2-HC30D universal matrix switcher enhances and extends the possibilities of a meeting room and allows meeting participants to easily use their own devices such as laptops, and preferred video conference platforms while also utilizing the available assets of the meeting space, just like the HDMI displays, room cameras, and other USB peripherals.
Exploit the Possibilities of USB connectivity
The device utilizes the USB-C connectivity for a simplified transmission of 4K video, audio, control signals, and power, and allows data speeds of up to 5 Gbps under the USB 3.1 Gen1 and allowing video resolution capabilities up to 4K@60Hz at 4:4:4. Users who connect their laptop or other mobile devices to the USB C switch can also enjoy charging up to 60w, thus eliminating the need to look for a wall plug and to avoid sudden interruption of meetings.
Devices such as laptops that do not come with USB-C connectivity can also be connected quickly and easily, using a combination of HDMI 2.0 and USB 3.1 Gen1 connections without compromising on either video resolution or data speeds.
The device is designed to be a centerpiece of any collaboration space and can be connected to four USB peripherals via USB-A type connectors.
The device allows up to four hosts to be connected to the system, and also ensures quick and easy switching between these hosts, making this universal matrix switcher a perfect fit for smaller meeting areas, involving 6-12 people.
Additional Features and Capabilities
Automated room control features are also included through GPIO ports, besides RS-232 and occupancy sensor connectivity.

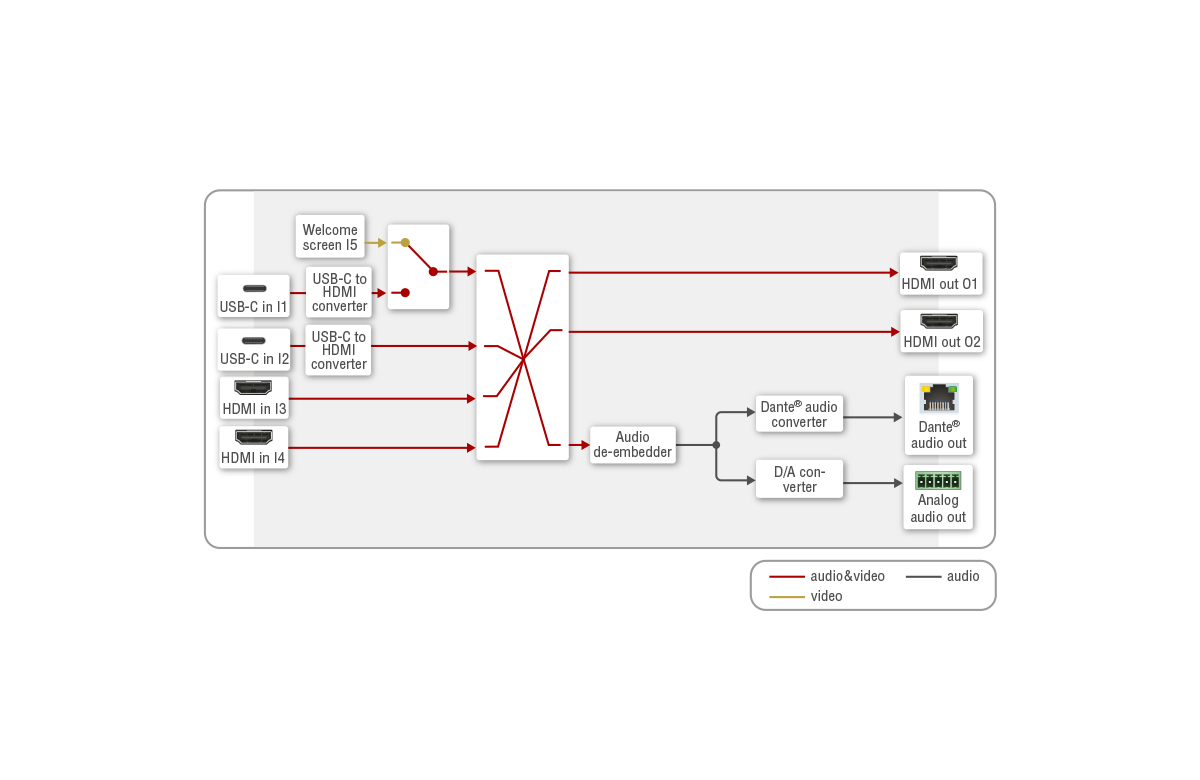

The switcher also thrives when it comes to audio capabilities, offering analog audio de-embedding features as well as support for DANTE/AES67 network connection to send DANTE/AES67 audio stream directly to a dedicated audio system.
Security is always a key concern to our customers, therefore our engineers ensured that the UCX-4x2-HC30D adhere to the strictest security standards

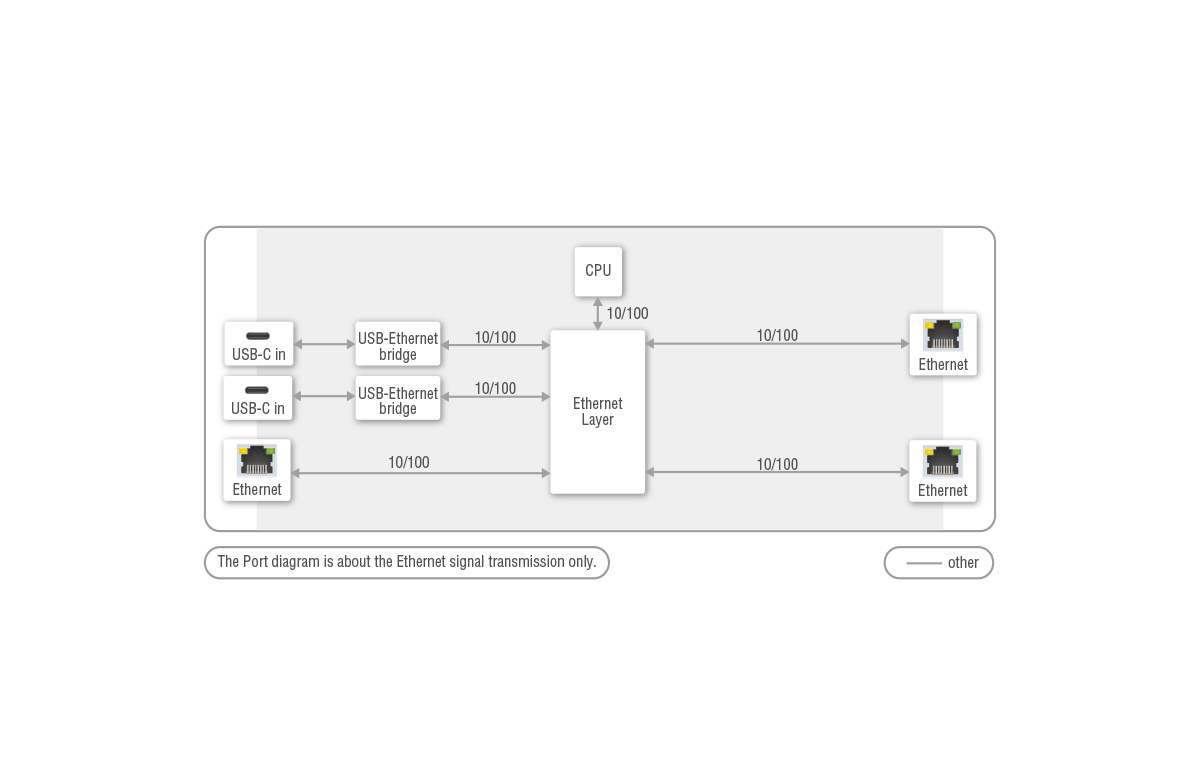

Secure corporate Ethernet interfaces ensure secure device control and configuration under the SSH, SSL, and HTTPS standards, whilst the device can also be securely connected to a closed network of room control devices such as wall panels or routed to the corporate system for additional control options, all via separate Ethernet layers.
The Taurus UCX offers noiseless operation in most environments where conditions are considered regular, just like in a meeting room where temperatures do not exceed the low 20s in Celsius or about 70-75 in Fahrenheit. The built-in fan is designed to operate only if the device is installed in a cabinet or other environment with insufficient airflow. We specified a maximum of 30dBA noise level for our ventilation system in a meeting room, to comply with the NC-30 and NR 30 standards.
In today’s collaboration environments, it is key that the technology offers flexible and versatile ways for participants to unlock the full potential of a collaboration space and to not be limited by the default options offered by their meeting rooms.
The Taurus UCX product family is Lightware’s ground-breaking innovation offered for the increasingly growing demand for cutting-edge solutions in the world of Unified Communications.
The Ultimate Collaboration for Modern Workspaces
Here's the New Taurus UCX
Experience seamless USB-C connectivity with Taurus UCX, offering effortless 4K video, switching, and USB peripheral support for meeting rooms and huddle spaces.
Specification Table
| Video | |
| Resolution | Up to UHD/4k@60Hz 4:4:4 |
| Signal Type | DP Alt Mode, HDMI 2.0, HDMI 1.x, DVI |
| Maximum data rate | 18 Gbps |
| Maximum pixel clock | 600 MHz |
| Content protections | HDCP 1.x, HDCP 2.2 |
| Connector type (IN) | 2x HDMI receptacle type A with screw locking option |
| 2x USB-C receptacle type A with screw locking option | |
| Connector type (OUT) | 2x HDMI receptacle type A with screw locking option |
| Video processing | Signal parameter measurement |
| Audio | ||
| Audio mode | Simultaneous pass-through and de-embedding to the Audio layer | |
| Supported audio formats for pass-through | All HDMI2.0 audio formats | |
| Supported audio formats for de-embedding | Uncompressed | LPCM (up to 2 channels, 192 kHz, 24 bits per sample) |
| Control | ||
| Ethernet | Control | 1x 100Base-T via RJ-45 for Secure Control |
| User Data | 1x 100Base-T via RJ-45 for Utility AV | |
| 1x 100Base-T via RJ-45 for Configurable Ethernet | ||
| Audio | 1x 100Base-T via RJ-45 for Dante audio (output) | |
| RS232 | Connector | 2x 3Pol Phoenix |
| Symbol rate | between 9600 and 115200 baud | |
| Configuration | Parity: none, odd or ever Stopbits: 1 or 2 |
|
| USB | Connectors | 2x USB Type C with charging function (2x60W), Optional Ethernet access |
| 1x mini USB Type B (reserved for service) | ||
| 1x USB Type A (reserved for furure developments) | ||
| 2x USB Type B for user application | ||
| 4x USB Type A for peripherals | ||
| Room Occupancy Sensor | Connector | 3Pol Phoenix |
| GPIO | Connector | 8Pol Phoenix |
| General | ||
| Powering | External 160W power supply | |
| Power consumption (max) | 137.8 W | |
| Heat dissipation | 471 BTU/h (max) | |
| Dimensions | Width | 271 mm |
| Height | 26 mm | |
| Depth | 150 mm | |
| Weight | 968 g | |
| Operating conditions | Ambient temperature | 0-50oC |
| Relative humidity | 0-90% (non-condensing) | |
| Transportation conditions | Ambient temperature | -20-70oC |
| Relative humidity | 0-95% (non-condensing) | |
| Complience | EN 55032:2015 IEC 61000-3-3:2013+AMD1:2017 FCC CFR Title 47, Part 15, Subpart B |
|
| Warranty | 3 years | |
Features
USB-C input connectivity
for 4K Video, Audio, Data, and Power (Video, Audio, Data and Power over a single USB-C connection)
USB 3.1 Gen 1 connectivity for any USB devices
Camera, speakerphone, touch monitor, USB-HID devices etc…
Separate USB 3.1 Host switching layer
for multiple USB hosts and USB devices
Charging via USB-C up to 60w
HDMI Stereo embedded Audio
can be de-embedded and converted to 2 channel Dante/AES67 streams
Secure corporate and room utility
Ethernet connectivity
Smart & noiseless cooling system
USB-C charging up to 2 x 60W
depending on the AC/DC power supply type (from Firmware V1.4)
CEC at the HDMI outputs
from Firmware V1.4
Supports HDMI 4K signal formats
4K UHD @60Hz RGB 4:4:4, up to 18 Gbps
