HDMI-OPTX-RX100A
SDVoE compatible HDMI 2.0 over fiber optical link receiver
The HDMI-OPTX-TX100A and HDMI-OPTX-RX100A transmitter and receiver devices are fiber extenders based on SDVoE technology and allow users to extend HDMI 2.0 compliant video, audio and control signals from a single source to a single destination through a fiber optical link.
Highlighted features
- Transmission distance of up to 10km (when SM SFP+ module is used)
- SFP+ cage for single mode or multimode SFP+ modules
- Allows for the transmission of HDMI 2.0, embedded audio, Ethernet, and RS-232 data between an extender pair through single mode or multimode fiber
- Supports HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps)
- HDR and Low Latency Dolby Vision support
The HDMI-OPTX-RX100A successfully passed and got certified for the Tempest SDIP27 Level B standard, making it suitable for defense and intelligence projects where high levels of reliability is critical.
The HDMI-OPTX-TX100A and HDMI-OPTX-RX100A transmitter and receiver devices are fiber extenders based on SDVoE technology and allow users to extend HDMI 2.0 compliant video, audio and control signals from a single source to a single destination through a fiber optical link.
Beyond the benefits of sending high-resolution video and USB2.0 data to a distance of up to 10km via fiber, the extenders are also able to handle various connectivity standards, including a 1G user Ethernet channel over the 10G link, as well as command injection into RS-232.
The Gigabit Ethernet ports are also valuable additions, allowing users to connect Ethernet capable devices to the network directly through the OPTX extenders. This is particularly useful for controlling external devices like projectors and displays.
HDCP 2.3 and basic EDID management functionality are also among the features offered by these devices, such as their connectivity and easy integration into a wide range of AV operations and with 3rd party devices, such as the Christie Terra projector.
- Transmission distance of up to 10km (when SM SFP+ module is used)
- SFP+ cage for single mode or multimode SFP+ modules
- HDCP 2.3 compliant
- Allows for the transmission of HDMI 2.0, embedded audio, Ethernet, and RS-232 data between an extender pair through single mode or multimode fiber
- Compatible with third-party SDVoE devices and controllers
- Command injection on RS-232 ports
- Ethernet extension (1 Gbps)
- Supports HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps)
- HDR and Low Latency Dolby Vision support

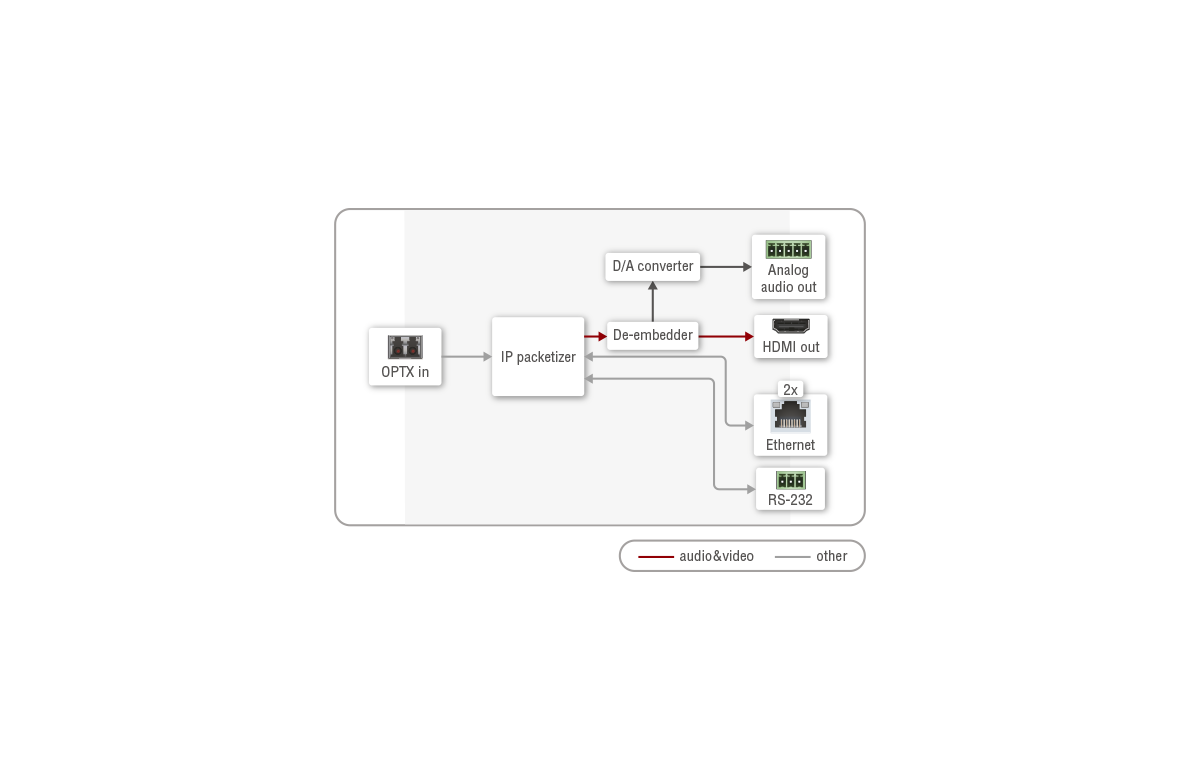

| General | |
| Compliance | UL, CE |
| Electrical safety | IEC/EN/UL/CSA 62368-1:2014, Class II |
| EMC (emission) | IEC/EN 55032:2015 |
| EMC (immunity) | IEC/EN 55035:2017 |
| RoHS | EN 63000:2018 |
| Warranty | 3 years |
| Operating temperature | 0° to +50°C (+32° to +122°F) |
| Storage temperature | -30° to +80˚C (-22° to +176˚F) |
| Operating humidity | 10% to 90%, non-condensing |
| Cooling | passive |
| Power | |
| Power supply option | Power adaptor |
| Supported power source | |
| Power consumption (max) | 6,3 W |
| Power consumption (stand by) | 3,45 W |
| Heat dissipation | TBD |
| AC power connector | |
| AC fuse | |
| Power over Ethernet (PoE) | |
| Power adaptor | |
| Supported power source | 100-240 V AC; 50/60 Hz |
| Supplied power | 12V DC, 2A |
| AC power plug | Interchangable (EU, UK, JP/US, AUS/NZ) |
| DC power plug | Locking DC connector (2.1/5.5 mm pin) |
| Enclosure | |
| Rack mountable | No |
| Enclosure material | 1 mm steel |
| Dimensions in mm | 100.4 W x 151.8 D x 26 H |
| Dimensions in inch | 3.95 W x 5.98 D x 1.02 H |
| Weight | TBD kg |
| * with rack mounting ears |
| OPTX input | |
| Connector type | SFP+ cage |
| Power over Ethernet (PoE) | |
| Compliance | SDVoE |
| HDCP compliance | HDCP2.3 |
| Transferred signals | Video, Audio, RS-232, Ethernet |
| Color space | RGB, YCbCr |
| Video delay | 0 frame |
| Supported resolutions at 8 bits/color * | up to 4096x2048@60Hz (4:4:4) |
| up to 3840x2160@60Hz (4:4:4) | |
| 4096x2048@60Hz (4:2:2) up to 10 bits/color | |
| Audio formats | All HDMI 2.0 formats including multi-channel PCM, Dolby True-HD and DTS-HD master audio |
| * The horizontal resolution for signals above the bandwith limit of HDMI 1.4 cannot exceed 4096 pixels. |
| SFP+ Port Slots | |
| Number of ports | 1 |
| Supported data rate | 10Gbps |
| Video Outputs | |
| HDMI output | |
| Connector type | 19-pole HDMI Type A receptacle |
| A/V standard | DVI 1.0, HDMI 1.4, HDMI 2.0 |
| HDCP compliance | HDCP 2.3 |
| Color space | RGB, YCbCr |
| Supported resolutions at 8 bits/color * | up to 4096x2048@60Hz (4:4:4) |
| up to 3840x2160@60Hz (4:4:4) | |
| 4096x2048@60Hz (4:2:2) up to 10 bits/color | |
| Audio formats | All HDMI 2.0 formats including multi-channel PCM, Dolby True-HD and DTS-HD master audio |
| * All standard VESA and CEA resolutions up to 600MHz (HDMI2.0) and other custom resolutions up to 600Mhz are supported. |
| Analog audio output | |
| Connector type | 5-pole Phoenix connector |
| Audio formats | 2-ch PCM |
| Sampling frequency | 48 kHz |
| Volume | -78 dB - 0 dB |
| Balance | 0 - 100 (50 = center) |
| Nominal Differential Output Level @ 0 dB Gain | +4 dBu |
| Nominal Differential Output Level @ 3 dB Gain | +7 dBu |
| Control Ports | |
| RS-232 serial port | |
| Connector type | 3-pole Phoenix connector |
| Baud rates | Between 4800 and 115200 Baud |
| Data bits | 8 or 9 |
| Parity | None / Odd / Even |
| Stop bits | 1 / 1.5 / 2 |
| Ethernet port | |
| Connector type | RJ45 female connector (2) |
| Ethernet data rate | 10/100/1000Base-T, full duplex with autodetect |
| Power over Ethernet (PoE) | No |
