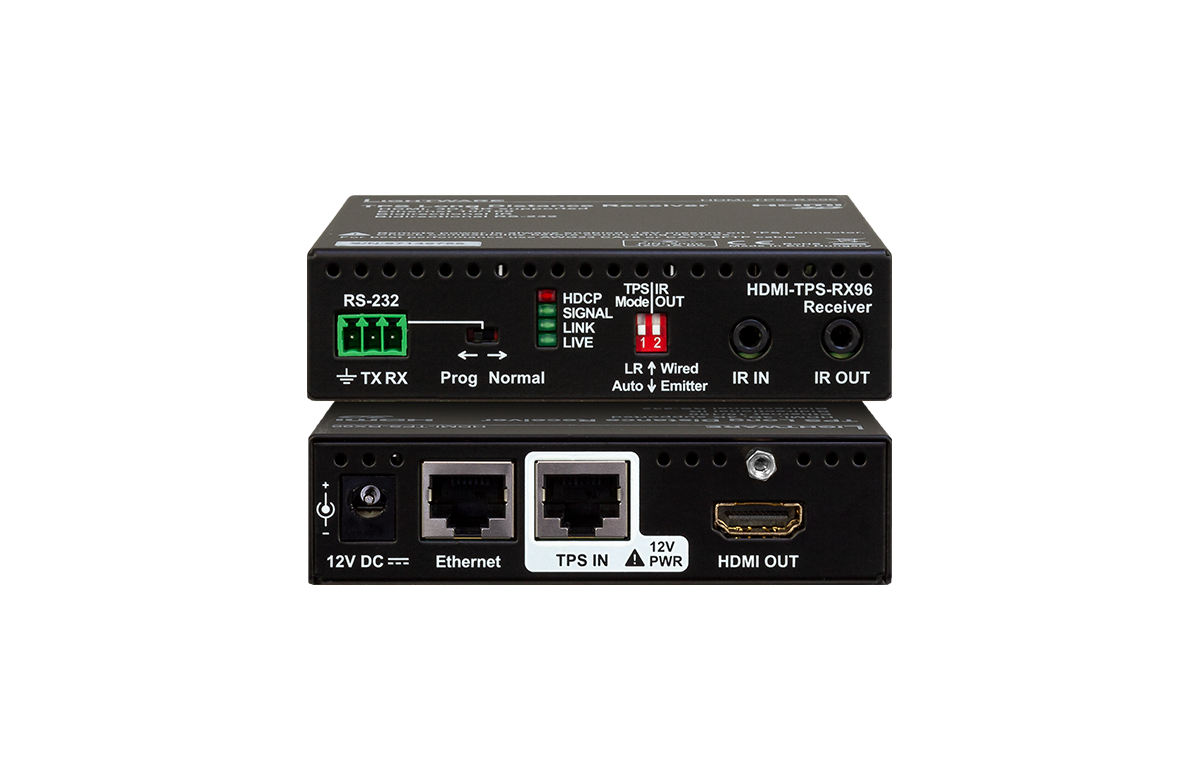

HDMI-TPS-RX96

Shipping
SKU
91540066
Be the first to review this product

TPS extender for single CATx cable

Lightware’s HDMI‑TPS‑RX96 twisted pair HDBaseT™ extenders provide full HDCP and EDID compliance, receive universal 4K video, audio and Bi-directional RS-232 and IR up to a range of 170 m over a single CATx cable.

CISCO compatible

Highlighted features

  • Selectable operation mode (Auto or forced Long Reach mode)
  • Ethernet extension (100 Mbps)
  • Bi-directional RS-232 and IR extension (pass-through)
  • Extends DVI or HDMI 1.4 + Audio + Ethernet + RS-232 + IR over one CAT5/6/7 cable

Vertical Markets

Education & Training
Corporate
Defense & Intelligence
Esport & Gaming
Rental & Staging
Digital Signage
Medical
Government
Industrial

Our regional offices and dedicated AV experts are at your disposal and would happily assist you finding the most suitable solution for your AV project.

Simply choose your location and get in touch with your Lightware partner today.

Our dedicated Lightware experts are ready to discuss the needs of your AV projects!

HDBASET

HDMI-TPS-TX96 and HDMI-TPS-RX96 twisted pair HDBaseTTM extenders provide extension of uncompressed Full-HD video for long distances over a single CATx cable. The unit offers bi-directional RS-232, IR, and Ethernet pass-through on the same CATx cable that carries the video signal. The TPS extenders support full HDCP and EDID compliance and work at all standard AV resolutions up to 4K and 48-bit color depth handling all standard audio formats and also 120 Hz 3D signals. Remote powering is available through a single CATx cable, but a local power supply can also be used. All devices can be mounted on a rack shelf or used standalone.

The Auto operation mode allows the device to detect the far end extender’s mode and adopt it. If the far end device is in Auto mode or it is a third party HDBaseTTM device the link will be set to HDBT mode. If the far device is in forced Long Reach Mode then the auto operation will set the Link to Long Reach Mode.

Applications

  • Post production studios
  • Control room
  • Digital Signage
  • Multiroom video
  • Conference rooms, collaborative telepresence

Remote Powering Remote Power Compatibility Table

Check the remote power compatibilities and functionalities across our devices

  • Can be remote powered through CATx cable (12V)
  • Supports HDMI 3D signal formats (frame packing, side-by-side and top-bottom)
  • Supports deep color signals (24/30/36 bit RGB/YCbCr 4:4:4)
  • 1920x1080@120Hz/4:4:4, 4096x2160@30Hz/4:4:4 or 60Hz/4:2:0 maximum resolutions (300MHz)
  • Supports all VESA and HDTV resolutions
  • HDMI 1.4, HDCP 1.4 and DVI 1.0 compliant
  • Bi-directional RS-232 extension (pass-through)
  • HDCP 2.2 compliant (transparent pass-through)
  • Compatible with 120 Hz 3D video signals
  • Uncompressed video up to 9 Gbps datarate (300 MHz pixel clock)
  • No signal latency, zero frame delay
  • Extends DVI or HDMI 1.4 + Ethernet + RS-232 + IR over one CAT5/6/7 cable
  • Selectable operation mode (Auto or forced Long Reach mode)
  • Cross compatible with TPS series Lightware extenders and I/O boards (HDBaseT compatible)
  • Supports all embedded audio formats (including PCM, Dolby Digital and DTS high bitrate audio)
  • Extension distance up to 170 meters (with CAT7 S/FTP AWG23 cable, 1920x1080p60)
  • HDBaseT compatible
  • Ethernet extension (100 Mbps)
  • Transparent EDID pass-through
  • Bi-directional IR extension (pass-through)
  • CEC support (pass-through)
  • Supports HDMI 4K signal formats (4K UHD @30Hz RGB 4:4:4 or @60Hz YUV 4:2:0, up to 9 Gbps)
  • No video compression
  • Bi-directional RS-232 and IR extension (pass-through)
  • Status LEDs (Live, TPS link, signal and HDCP detect)
  • Twist-and-lock DC power connector
  • Low power mode (standby)
  • Local or remote (remote-send / remote-receive) power source
  • External universal power adaptor
  • Mounting options for rack, furniture or truss
  • Extends DVI or HDMI 1.4 + Audio + Ethernet + RS-232 + IR over one CAT5/6/7 cable
Specifications
Data rate: 3.4 Gbps per color
Resolution: All HDMI 1.4a resolutions supported
Equalization: Adaptive, automatic
EDID support: Transparent
HDCP pass through: Yes
Ethernet pass-through: Yes
RS-232 pass through: Yes
IR pass through: Yes
Power: Universal power adaptor, DC 12 V 2.5 A
Overall signal delay: 10µs (including 100m CATx cable)
Power consumption: 5.3 W (typ) 6.1 W (max)
Enclosure: 1 mm metal
Dimensions: 100.4 W x 100.4 D x 26 H mm
Weight: 330 g / product
Compliance: CE
Warranty: 3 years

Connectors
TX input, RX output: HDMI connector
TX output, RX input: RJ45 (TPS interface)
Ethernet: RJ45
IR In, out: 3.5mm TRS connector (1/8’’ mini-jack)
Serial port: 3-pole PHOENIX
Power: Locking DC connector (2.1 / 5.5 mm)

Max cable lengths with the available firmware versions
 Resolution  Pixel clock rate Cable lengths (Auto / LR link mode)
CAT5e AWG24 CAT7 AWG26** CAT7 AWG23
1024x768@60Hz 65 MHz 100 m / 130 m* 90 m / 120 m* 120 m / 170 m*
1280x720p@60Hz 73,8 MHz 100 m / 130 m* 90 m / 120 m* 120 m / 170 m*
1920x1080p@60Hz / 24bpp 148,5 MHz 100 m / 130 m* 90 m / 120 m* 120 m / 170 m*
1920x1200@60Hz 152,9 MHz 100 m / NA 90 m / NA 120 m / NA
1600x1200@60Hz 162 MHz 100 m / NA 90 m / NA 120 m / NA
1920x1080@60Hz / 36bpp 223 MHz 70 m / NA 70 m / NA 100 m / NA
3840x2160@30Hz UHD 297 MHz 70 m / NA 70 m / NA 100 m / NA
4096x2160@30Hz 4K 297 MHz 70 m / NA 70 m / NA 100 m / NA
*with long reach firmware option. Long reach firmware supports pixel clock frequencies up to 148,5 MHz.
**Distances are 20% shorter if remote powering used. AWG 26 cables are not recommended with remote powering.
