MMX4x2-HT200
SKU: 91310035
Shipping4x2 Matrix Switcher with TPS and HDMI Inputs and Breakaway Analog Audio
Interested in this product?
The MMX4x2-HT200 is a matrix switcher that supports both HDMI and TPS signals, enabling seamless switching of 4K video across multiple inputs and outputs, ideal for complex AV systems.
Details
Elevate Your AV Experience with Seamless Connectivity

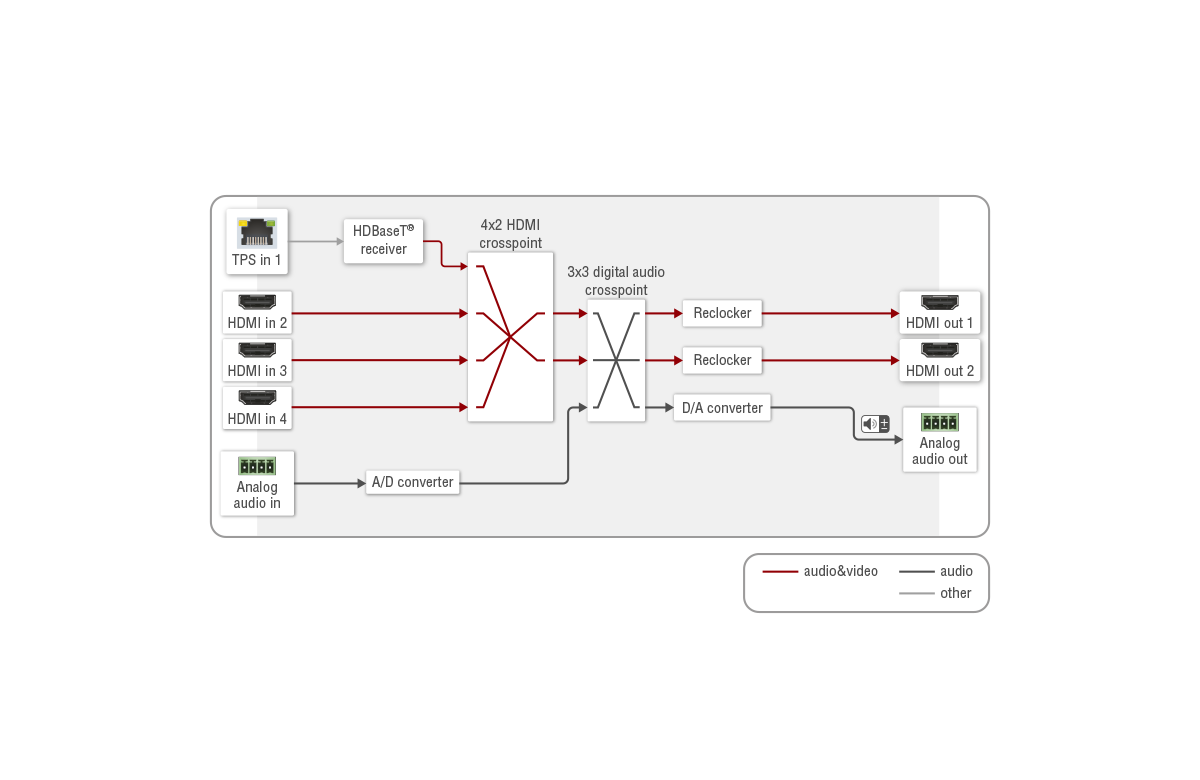

MMX4x2-HT is a uniquely mini size matrix switcher. It has three HDMI inputs and one HDBaseTTM compatible TPS input port. It has two independent HDMI outputs. Audio can be de-embedded from the HDMI signal to a balanced 5-pole Phoenix (Euroblock) port and external audio signal can be embedded into the HDMI stream from another 5-pole Phoenix input port. The volume and gain properties of the audio signal can be modified at both input and output. The unit is fully 4K/UHD/3D capable and HDCP compliant. The device has a built-in Event Manager configurable via the Lightware Device Controller software. Further control options are served by the USB, RS-232, IR (in and out) and Ethernet ports.
Specification Table
| Max Supported Cable Lengths | ||||
| Resolution | Pixel clock rate | Cable lengths (Auto / LR link mode) | ||
| CAT5e AWG24 | CAT7 AWG26** | CAT7 AWG23 | ||
| 1024x768@60Hz | 65 MHz | 100 m / 130 m* | 90 m / 120 m* | 120 m / 170 m* |
| 1280x720p@60Hz | 73,8 MHz | 100 m / 130 m* | 90 m / 120 m* | 120 m / 170 m* |
| 1920x1080p@60Hz / 24bpp | 148,5 MHz | 100 m / 130 m* | 90 m / 120 m* | 120 m / 170 m* |
| 1920x1200@60Hz | 152,9 MHz | 100 m / NA | 90 m / NA | 120 m / NA |
| 1600x1200@60Hz | 162 MHz | 100 m / NA | 90 m / NA | 120 m / NA |
| 1920x1080@60Hz / 36bpp | 223 MHz | 70 m / NA | 70 m / NA | 100 m / NA |
| 1920x1080@120Hz | 297 MHz | 70 m / NA | 70 m / NA | 100 m / NA |
| 3840x2160@30Hz UHD | 297 MHz | 70 m / NA | 70 m / NA | 100 m / NA |
| 4096x2160@30Hz 4K | 297 MHz | 70 m / NA | 70 m / NA | 100 m / NA |
| * with Long reach operation mode which supports pixel clock frequencies up to 148,5 MHz. ** when remote powering is used with AWG26 cables, distances are 20% shorter. |
||||
| Connectors | |
| Digital Video Inputs | 3x HDMI; 1 HDBT connector |
| Digital Video Outputs | 2x HDMI connector |
| Balanced audio input: | 5-pole Phoenix (Euroblock) connector |
| Balanced audio output: | 5-pole Phoenix (Euroblock) connector |
| Ethernet: | 1 x RJ45 |
| USB: | mini-USB-B connector |
| IR in and out: | 3.5 mm jack |
| Serial port: | 3-pole Phoenix (Euroblock) |
| Power: | Locking DC connector (2.1 / 5.5 mm) |
| Specification | |
| Resolution: | Up to 4K UHD 3840×2160@30Hz,1600x- 1200@60Hz, FullHD 1920x1080@60Hz |
| Digital audio formats: | Supports up to 8 channel PCM, Dolby TrueHD and DTS-HD Master Audio 7.1 formats |
| Input cable equalization (TPS): | Automatic max 170 m* |
| EDID emulation: | Yes, Advanced EDID Management |
| EDID memory: | 120 factory preset, 12 user programmable |
| HDCP compatibility: | Yes |
| RS-232 pass-through | Yes, configurable |
| RS-232 (control option): | 9600, 19200, 38400, 57600, 115200 Baud Rx,Tx (default: 57600) |
| Local power: | DC Power supply 12V, 2A |
| Power consumption: | 10W (max) |
| Enclosure: | 1 mm metal |
| Dimensions: | 221 W x 100.4 D x 26 H mm |
| Compliance: | CE |
| Warranty: | 3 years |
| *Depends on cable category and quality | |
| Analog Audio Input | |
| Volume: | -96 .. 0 dB |
| Balance: | -100 .. 0 .. 100 |
| Mute function: | Yes |
| Analog Audio Output | |
| Volume: | -57 .. +3 dB |
| Balance: | -100 .. 0 .. 100 |
| Mute function: | Yes |
Features
Cisco VC room integration compatibility
Advanced control feature pack
for 3rd party video conference collaboration
Command injection on RS-232 and IR ports
Built-in Event Manager control automation
