MMX8x8-HDMI-4K-A

Coming soon
SKU
91310043

HDMI Matrix Switcher with Event Manager

MMX8x8-HDMI-4K-A is a standalone matrix switcher with eight HDMI video inputs and eight HDMI video outputs. 4K / UHD (30Hz RGB 4:4:4, 60Hz YCbCr 4:2:0), 3D capabilities and HDCP are fully supported.

Highlight Features

  • 8x8 port HDMI matrix switcher
  • 4K / UHD (30Hz RGB 4:4:4, 60Hz YCbCr 4:2:0) and 3D capabilities
  • 8x HDMI inputs + 8x HDMI outputs
  • 4+2 Balanced, analog, audio ports with user-selectable signal direction
  • Front panel control buttons, LCD display and jog dial button
  • 1x Ethernet input port for device control
  • 2x bi-directional RS-232 ports
  • 2x Serial/IR ports for display control
  • 2x IR ports for display control
  • Event Manager built-in control feature

MMX8x8-HDMI-4K-A is a standalone matrix switcher with eight HDMI video inputs and eight HDMI video outputs. 4K / UHD (30Hz RGB 4:4:4, 60Hz YCbCr 4:2:0), 3D capabilities and HDCP are fully supported.

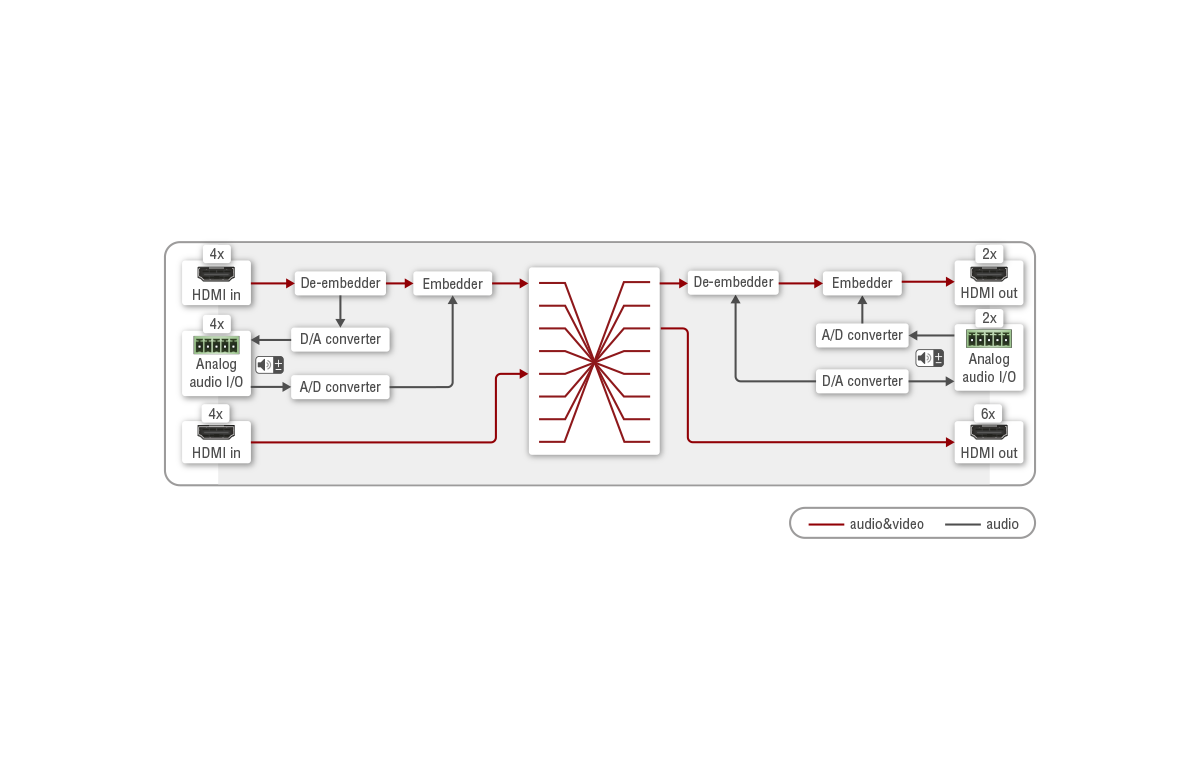

MMX8x8-HDMI-4K-A has 4+2 balanced, bi-directional, 5-pole Phoenix audio ports for embedding and de-embedding audio.

Using factory, custom or transparent EDID emulation users can fix and lock EDID data on each input connector. Advanced EDID Management forces the required resolution from any video source and fixes the output format to conform to the system requirements.

The unit can be controlled via RS-232, Ethernet or USB ports, but it also offers RS-232, Serial and IR command injection capabilities allowing to send any control command directly to end points.

The built-in Event Manager feature provides control via RS-232and IR ports.

CAD Language File format Size Date
CAD - MMX8x8-HDMI-4K-A English zip 0.5 MB 2018-02-05 Download
Product brief Language File format Size Date
Product brief - MMX8×8-HDMI-4K-A English pdf 1.03 MB 2018-01-18 Download
