MX-FR33L
Shipping
SKU
91110003

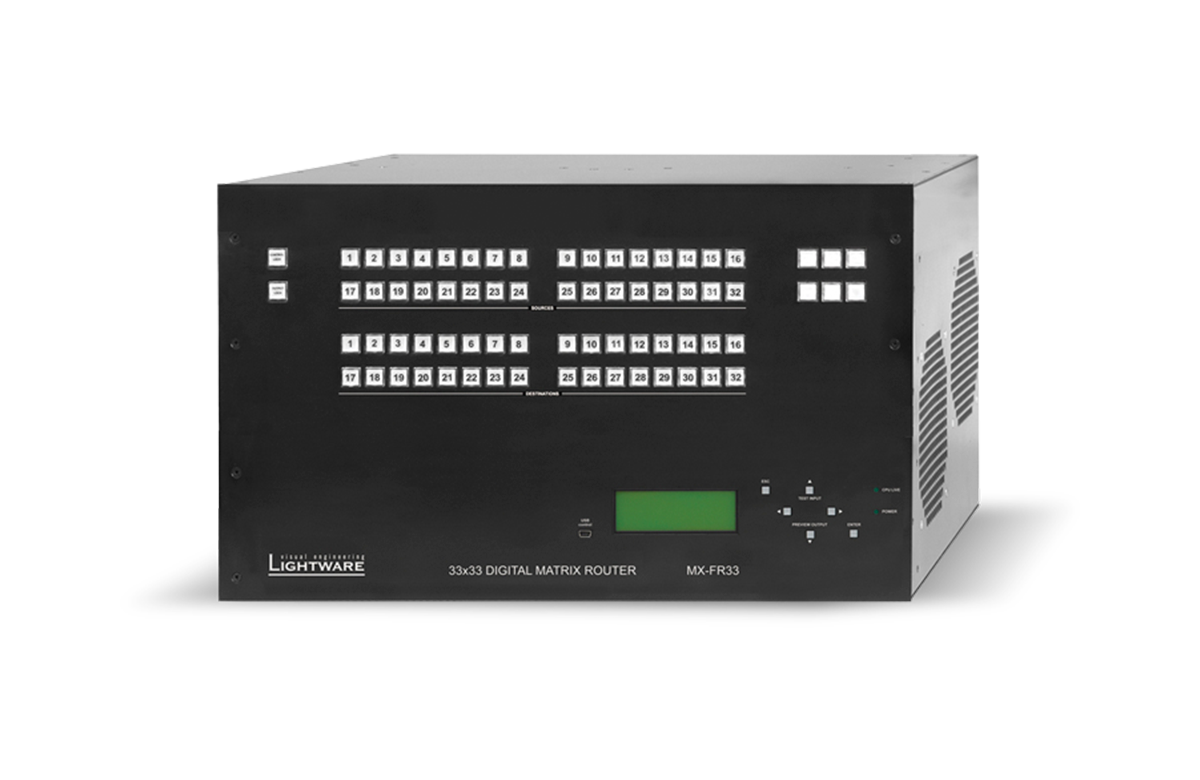

33x33 Crosspoint MX Modular Digital Router Frame
The MX series matrix routers are the highest performance, modular expandable DVI and HDMI compliant switchers, available in five different frame sizes. The built‑in sophisticated software and hardware features make these routers the most flexible integrated solution for AV professionals, and high‑end home theatre applications
Highlighted features
The MX series modular matrix routers are the highest performance, expandable DVI and HDMI compliant switchers, available in five different frame sizes. The built‑in sophisticated software and hardware features make these routers the most flexible integrated solution for AV professionals and high‑end home theatre applications. These frames and their I/O board product line incorporate proprietary features, broad signal compatibility, precise switching, control, troubleshooting and signal measurement. The MX router frames start from 9x9 I/O size the largest available MX frame size is 80x80. The Hybrid Modular Design of MX modular routers allow AV professionals to select I/O sizes, video signal types and transport media options according to their application requirements and fully customize their system.
.
Incorporated Proprietary Lightware Technologies
- No signal latency – Zero frame Delay
- Advanced EDID Management
- HDCP compatibility:
red screen alert
HDCP key counter
HDCP key caching
HDCP enabling/disabling function - Instantaneous Switching
- Frame Detector and Input Signal Analysis
- Built-in cable compensation
- Pixel Accurate Reclocking
| Input Boards | |
| MX-DVID-IB | DVI-D Single-Link input board with DVI-I connectors |
| MX-DVIDL-IB | Dual-Link DVI digital only input board with DVI-I connectors |
| MX-DVI-HDCP-IB | DVI, HDCP and HDMI compliant input board |
| MX-DVII-HDCP-IB | DVI-I input board supporting VGA, YUV, DVI and HDMI with HDCP signals |
| MX-HDMI-3D-IB | HDMI input board including 4K, 3D and Deep Color |
| MX-HDMI-3D-IB-A | HDMI input board including 4K, 3D and Deep Color, with Phoenix connectors |
| MX-HDMI-3D-IB-S | HDMI input board including 4K, 3D and Deep Color, with S/PDIF connectors |
| MX-4TPS2-4HDMI-IB | TPS-HDMI input board |
| MX-4TPS2-4HDMI-IB-A | TPS-HDMI input board with analog audio |
| MX-4TPS2-4HDMI-IB-S | TPS-HDMI input board with digital audio |
| MX-4TPS2-4HDMI-IB-P | TPS-HDMI input board with PoE |
| MX-4TPS2-4HDMI-IB-AP | TPS-HDMI input board with PoE and analog audio |
| MX-4TPS2-4HDMI-IB-SP | TPS-HDMI input board with PoE and digital audio |
| MX-3GSDI-IB | 3G-SDI input board supporting SDI embedded, S/PDIF and AES/EBU audio |
| MX-TPS-IB | TPS input board |
| MX-TPS-IB-A | TPS input board with analog audio |
| MX-TPS-IB-S | TPS input board with digital audio |
| MX-TPS2-IB-P | TPS input board for HDMI, Ethernet, audio and control, with optional PoE |
| MX-TPS2-IB-AP | TPS input board for HDMI, Ethernet, audio and control, with optional PoE and analog audio |
| MX-TPS2-IB-SP | TPS input board for HDMI, Ethernet, audio and control, with optional PoE and digital audio |
| MX-DVI-TP-IB | Twisted pair input board for DVI over CAT5-CAT7 cables |
| MX-DVI-TP-IB+ | Twisted pair input board for DVI over CAT5-CAT7 cables |
| MX-HDMI-TP-IB | Twisted pair HDMI input board for CAT5-CAT7 cables |
| MXD-HDMI-TP-IB | Double slot twisted pair HDMI input board with control |
| MX-DVI-OPT-IB-LC | Fiber optical input board for Single-Link DVI-D signal extension, with LC connectors |
| MX-DVI-OPT-IB-NT | Fiber optical input board for Single-Link DVI-D signal extension, with Neutrik OpticalCON connectors |
| MX-DVI-OPT-IB-SC | Fiber optical input board for Single-Link DVI-D signal extension, with SC connectors |
| MX-DVI-OPT-IB-ST | Fiber optical input board for Single-Link DVI-D signal extension, with ST connectors |
| MX-DVIDL-OPT-IB-LC | Dual-Link DVI fiber optical input board, with LC connectors |
| MX-DVIDL-OPT-IB-NT | Dual-Link DVI fiber optical input board, with Neutrik OpticalCON connectors |
| MX-HDMI-OPT-IB-LC | HDMI and HDCP compliant fiber optical input board including 4K, 3D, with LC connectors |
| MX-HDMI-OPT-IB-NT | HDMI and HDCP compliant fiber optical input board including 4K, 3D, with Neutrik OpticalCON connectors |
| MX-HDMI-OPT-IB-SC | HDMI and HDCP compliant fiber optical input board including 4K, 3D, with SC connectors |
| Output Boards | |
| MX-AUDIO-OB | Analog audio output board |
| MX-DVID-OB | DVI-D Single-Link output board with DVI-I connectors |
| MX-DVIDL-OB | Dual-Link DVI digital only output board with DVI-I connectors |
| MX-DVI-HDCP-OB | DVI, HDCP and HDMI compliant output board |
| MX-HDMI-3D-OB | HDMI output board including 4K, 3D and Deep Color |
| MX-HDMI-3D-OB-A | HDMI output board including 4K, 3D and Deep Color, with Phoenix connectors |
| MX-HDMI-3D-OB-S | HDMI output board including 4K, 3D and Deep Color, with S/PDIF connectors |
| MX-TPS-OB | TPS output board for HDMI, Ethernet, audio and control |
| MX-TPS-OB-A | TPS output board for HDMI, Ethernet, audio and control with analog audio |
| MX-TPS-OB-S | TPS output board for HDMI, Ethernet, audio and control with digital audio |
| MX-TPS2-OB-P,-AP,-SP | TPS output board with PoE option |
| MX-4TPS2-4HDMI-OB | TPS and HDMI Output board for Ethernet, audio and Control |
| MX-DVI-TP-OB | Twisted pair output board for DVI over CAT5-CAT7 cables |
| MX-DVI-TP-OB+ | Twisted pair output board for DVI over CAT5-CAT7 cables |
| MX-HDMI-TP-OB | Twisted pair HDMI output board for CAT5-CAT7 cables |
| MXD-HDMI-TP-OB | Double slot twisted pair HDMI output board with control and audio |
| MX-HDMI-OPT-OB-LC | Fiber optical output board for extending DVI-D signals, with LC connectors |
| MX-DVI-OPT-OB-SC | Fiber optical output board for extending DVI-D signals, with SC connectors |
| MX-DVI-OPT-OB-ST | Fiber optical output board for extending DVI-D signals, with ST connectors |
| MX-DVI-OPT-OB-R-LC | Fiber optical output board with Pixel Accurate Reclocking, with LC connectors |
| MX-DVI-OPT-OB-R-NT | Fiber optical output board with Pixel Accurate Reclocking, with Neutrik OpticalCON connectors |
| MX-DVI-OPT-OB-R-SC | Fiber optical output board with Pixel Accurate Reclocking, with SC connectors |
| MX-DVI-OPT-OB-R-ST | Fiber optical output board with Pixel Accurate Reclocking, with ST connectors |
| MX-DVIDL-OPT-OB-LC | Dual-Link DVI fiber optical output board, with LC connectors |
| MX-DVIDL-OPT-OB-NT | Dual-Link DVI fiber optical output board, with Neutrik OpticalCON connectors |
| MX-HDMI-OPT-OB-LC | HDMI and HDCP compliant fiber optical output board, with LC connectors |
| MX-HDMI-OPT-OB-NT | HDMI and HDCP compliant fiber optical output board, with Neutrik OpticalCON connectors |
| MX-HDMI-OPT-OB-SC | HDMI and HDCP compliant fiber optical output board, with SC connectors |
| MX-HDMI-OPT-OB-R-LC | HDMI optical output board with Pixel Accurate Reclocking including 4K, 3D and Deep Color with LC connectors |
| MX-HDMI-OPT-OB-R-NT | HDMI optical output board with Pixel Accurate Reclocking including 4K, 3D and Deep Color with NT connectors |
- Active fan cooling
- Directly mountable in 19" rack
- EtherCON ruggedized LAN connector
- Built-in universal power supply
- Vista Spyder and Barco Encore compatibility
- Combine non-HDCP and HDCP capable I/O boards in the same frame
- Compatible with all MX-... and MXD-... I/O boards
- Multiple TCP/IP connections
- Advanced EDID Management
- Save and reload full crosspoint configurations as preset
- Front panel LCD menu and buttons for crosspoint control
- Intuitive control software for device configuration
- Device control via Ethernet (TCP/IP), RS-232 and USB
- Fully non-blocking switching architecture
- Built-in website for device configuration
- No video compression
- Bi-directional RS-232 extension (pass-through)
- Firmware upgrade through Ethernet
- Supports all embedded audio formats (including PCM, Dolby Digital and DTS high bitrate audio)
- No signal latency, zero frame delay
| Specifications for all frames: | |
| EDID memory: | 100 factory preset and 50 user programmable |
| EDID emulation: | 256-Byte Extended EDID v1.3 |
| Front panel buttons: | Yes |
| Front panel LCD: | Yes, 4 x 20 characters |
| RS-232/422: | Selectable (9600, 38400, 57600, 115200) Baud RX, TX (default: 57600) |
| LAN: | Ethernet 10Base-T or 100Base-TX (Auto-sensing) |
| WEB: | Built-in website |
| Temperature: | 0°C to +50°C operational -40°C to +70°C storage |
| Humidity: | 10 to 90% non-condensing |
| Altitude: | 2000 m operational |
| EMI/EMC compliance: | Yes, EN 55022 Class B |
| RoHS compliance: | Yes |
| Warranty: | 3 years |
