MX2M-FR24R-F

Shipping
SKU
91110023
Be the first to review this product

Modular 24x24 4K Hybrid Matrix Switcher

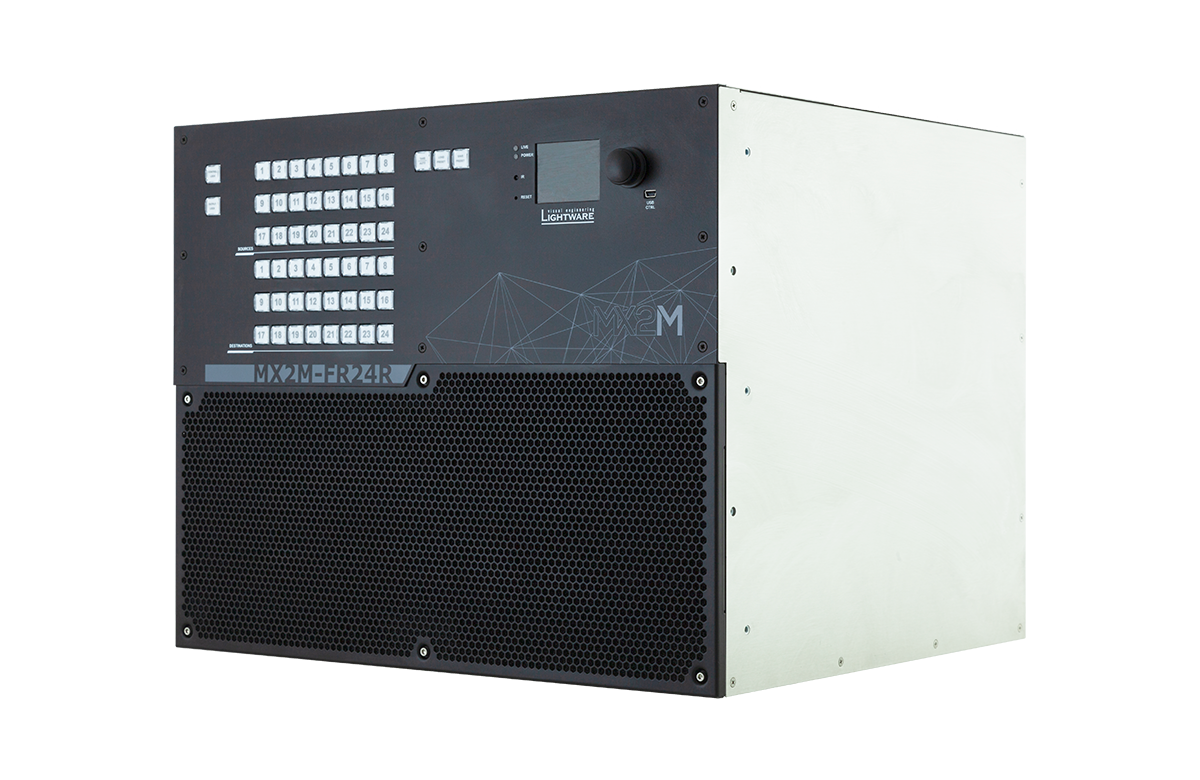

MX2M-FR24R-F is a member of the Lightware MX2 modular matrix switcher series, supporting uncompromised 4K UHD resolution at 60Hz with RGB 4:4:4 colorspace. Equipped with one single PSU to provide power supply for the frame itself, with a redundancy upgrade possibility

Highlighted features

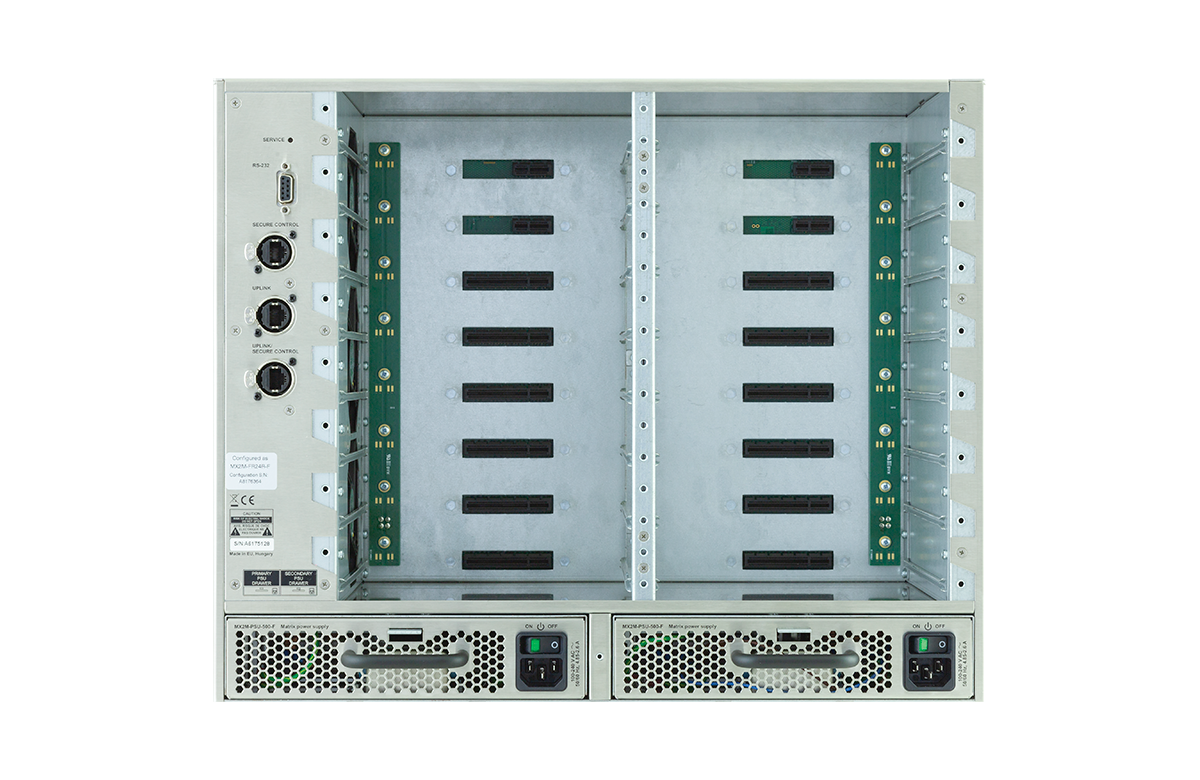

  • Six slots for 4-port video input boards, six slots for 4-port video output boards and additional four slots for low-speed (audio, GPIO, etc) IO boards
  • Audio layer for independent audio routing of uncompressed (e.g. 7.1 LPCM) and compressed
  • HBR audio signals received and extracted by the video IO boards or via low-speed audio IO boards
  • IT security features e.g. LDAP and AD integration, SSH, HTTPS for control, etc.
  • Flexible design with support for hot-swappable IO boards
  • Connectivity for breakout boxes that can accommodate additional low-speed IO boards
  • HDCP 2.2 and HDCP 1.4 compliant with cross conversion capabilities
  • Device control via Ethernet (TCP/IP)
  • Supports HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps)
  • HDR and Low Latency Dolby Vision support
  • Redundant power supplies available

Vertical Markets

Rental & Staging
Digital Signage
Government
Industrial

Our regional offices and dedicated AV experts are at your disposal and would happily assist you finding the most suitable solution for your AV project.

Simply choose your location and get in touch with your Lightware partner today.

Our dedicated Lightware experts are ready to discuss the needs of your AV projects!

MX2M-FR24R-F is a member of the Lightware MX2 modular matrix switcher series, supporting uncompromised 4K UHD resolution at 60Hz with 4:4:4 sampling pattern and with downconversion capabilities to 4:2:2, supporting HDCP 1.x and 2.3, 3D, Dolby TrueHD and DTS-HD Master Audio. The non-blocking matrix architecture distributes and switches 24 video signals to 24 outputs, distributed along six 4-port boards respectively per direction.

This versatile and customizable device is suitable for various types of applications, the actual application determining the choice of input and output boards to be included in the frame. It is a perfect choice for installations where a huge number of HDMI 2.0 compliant and other types of input and output video ports are required, including HDMI 2.0, DisplayPort 1.2 and compressed AV-Over-IP standards, as well as extension through fibre.

Besides the six 4-port input and six 4-port output video boards, there are four low speed installable slots for Dante, ADC and DAC audio input and output boards, GPIO, USB and other connectivity options.

Control for connected extenders is served by Ethernet layer. The Ethernet layer can also be used for IP extension, as well as for command injection for IR and serial control by third party devices.

For operation safety power redundancy is available, and PSU drawers are field-exchangeable for ease of maintenance. The device also supports various IT security standards.

Upon installing a second power supply unit for the MX2M-FR24R matrix frame, in order to unlock the possibility for redundant operation users need to upgrade the device’s firmware by purchasing the Redundancy Upgrade.

For users who purchased their device with two PSU drawers and only looking to get additional PSU drawers as a spare or backup do not need to perform the firmware upgrade as their device is fully power redundancy capable by default.

MX2M Series I/O Cards for MX2M Modular Matrix switchers:

HDMI 2.0 Input Board

MX2M-4HDMI20-IB

  • 4K@60Hz 4:4:4, 18 Gbps bandwidth
  • HDMI 2.0 compliant
  • HDCP 1.x and 2.3 support
  • Audio de-embedding to the Audio layer
  • Hot-swappable design

HDMI 2.0 Output Board

MX2M-4HDMI20-OB

  • 4K@60Hz 4:4:4, 18 Gbps bandwidth
  • HDMI 2.0 compliant
  • HDCP 1.x and 2.3 support
  • Supports conversion from 4:4:4 to 4:2:0
  • Audio de-embedding to the Audio layer
  • Hot-swappable design

Single Stream DP 1.2 Input Board

MX2M-DH-4DP12-IB

  • DisplayPort 1.2 compliant
  • DisplayPort input signals are converted to HDMI signals via the built-in chipset on each port
  • Supported input format of 4K@60Hz with 4:4:4 sampling pattern and 10 bit per component
  • Supports conversion from 4K/UHD at 60Hz 4:4:4 10bit to 4K/UHD at 60 Hz YCbCr 4:2:2 10 bit
  • Audio de-embedding to the Audio layer
  • Hot-swappable design

HDMI 2.0 Multimode Fiber Input Board

MX2M-4OPTJ-IB

  • Single Fiber Technology, multimode transmission via SC connector
  • Uncompressed video up to 18 Gbps datarate (600 MHz pixel clock)
  • 4096x2160@60Hz/4:4:4 maximum resolution (600MHz)
  • Compatible with HDMI20-OPTJ-TX90
  • Audio de-embedding to the Audio layer
  • Hot-swappable design

HDMI 2.0 Multimode Fiber Output Board

MX2M-4OPTJ-OB

  • Single Fiber Technology, multimode transmission via SC connector
  • Uncompressed video up to 18 Gbps datarate (600 MHz pixel clock)
  • 4096x2160@60Hz/4:4:4 maximum resolution (600MHz)
  • Supports conversion from 4:4:4 to 4:2:0
  • Compatible with HDMI20-OPTJ-RX90
  • Audio embedding from the Audio layer
  • Hot-swappable design

2 x 16-channel Dante Input and Output Board

MX2M-AUX-DANTE-32CH

  • Transmission of 2 x 16 umcompressed mono audio channels from the audio layer to a Dante network
  • Reception of 2 x 16 mono audio channels from a Dante network to the Audio layer
  • Dante and AES67 support
  • Redundant configuration for the Dante network
  • Independent transmission of the same audio content from the Audio layer to two separate Dante networks
  • Hot-swappable design

Stereo Analog Input and Output Board

MX2M-AUX-8AUDIO

  • 8x 5-pole Phoenix connectors for analog audio input or output
  • Independently configurable audio interface direction with interface direction indicator
  • ADC conversion of balanced or unbalanced stereo analog audio input to the Audio layer
  • DAC conversion of uncompressed audio from the Audio layer to the
  • balanced stereo analog audio output

AVX (non switchable) HDMI 2.0 input board

MX2M-4TPX-IB

  • HDCP 2.3 and HDCP 1.4 support
  • HDMI 2.0, HDMI 1.x, and DVI compatible
  • Extension distance of up to 100 meters for 4K@60Hz 4:4:4 signals
  • Compatible with TPX extenders and SDVoE-based third-party products
  • Command injection on RS-232 and IR ports
  • Hot-swappable design

AVX (non switchable) HDMI 2.0 output board

MX2M-4TPX-OB

  • HDCP 2.3 and HDCP 1.4 support
  • HDMI 2.0, HDMI 1.x, and DVI compatible
  • Extension distance of up to 100 meters for 4K@60Hz 4:4:4 signals
  • Compatible with TPX extenders and SDVoE-based third-party products
  • Command injection on RS-232 and IR ports
  • Hot-swappable design

HDMI 2.0 Input Board

MX2M-4HDMI20-IB-E

  • HDCP 2.3 and HDCP 1.4 support
  • HDMI 2.0, HDMI 1.x, and DVI compatible
  • HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps)
  • DisplayID support for forcing extreme formats (e.g. 7kx1k@60Hz 4:4:4)
  • Supports deep color signals
  • Hot-swappable design

HDMI 2.0 Output Board

MX2M-4HDMI20-OB-E

  • HDCP 2.3 and HDCP 1.4 support
  • HDMI 2.0, HDMI 1.x, and DVI compatible
  • HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps)
  • DisplayID support for forcing extreme formats (e.g. 7kx1k@60Hz 4:4:4)
  • Supports deep color signals
  • Hot-swappable design

HDMI 2.0 Multimode Fiber Output Board

MX2M-4OPTJ-OB-E

  • Single Fiber Technology, multimode transmission via SC connector
  • Uncompressed video up to 18 Gbps data rate (600 MHz pixel clock)
  • 4K@60Hz 4:4:4, 18 Gbps bandwidth
  • Compatible with HDMI20-OPTJ-TX90 fiber optical extender
  • Audio signal passthrough (not connected to the Audio layer)
  • Hot-swappable design

HDMI 2.0 Multimode Fiber Input Board

MX2M-4OPTJ-IB-E

  • Single Fiber Technology, multimode transmission via SC connector
  • Uncompressed video up to 18 Gbps data rate (600 MHz pixel clock)
  • 4K@60Hz 4:4:4, 18 Gbps bandwidth
  • Compatible with HDMI20-OPTJ-TX90 fiber optical extender
  • Audio signal passthrough (not connected to the Audio layer)
  • Hot-swappable design

DisplayPort 1.2 Input Board

MX2M-DH-4DP12-IB-E

  • DisplayPort 1.2 compliant
  • DisplayPort input signals are converted to HDMI signals via the built-in chipset on each port 1
  • Supported input format of 4K@60Hz with 4:4:4 sampling pattern and 10 bit per component
  • Supports conversion from 4K/UHD at 60Hz 4:4:4 10bit to 4K/UHD at 60 Hz YCbCr 4:2:2 10 bit
  • Audio signal passthrough (not connected to the Audio layer)
  • Hot-swappable design
  • Six slots for 4-port video input boards, six slots for 4-port video output boards and additional four slots for low-speed (audio, GPIO, etc) IO boards
  • Audio layer for independent audio routing of uncompressed (e.g. 7.1 LPCM) and compressed
  • HBR audio signals received and extracted by the video IO boards or via low-speed audio IO boards
  • IT security features e.g. LDAP and AD integration, SSH, HTTPS for control, etc.
  • Flexible design with support for hot-swappable IO boards
  • Connectivity for breakout boxes that can accommodate additional low-speed IO boards
  • HDCP 2.2 and HDCP 1.4 compliant with cross conversion capabilities
  • Device control via Ethernet (TCP/IP)
  • Built-in website for device configuration
  • Supports HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps)
  • HDR and Low Latency Dolby Vision support
  • Redundant power supplies available
Video
Number of input slots 6
Number of output slots 6
Crosspoint 24 x 24 non-blocking
Maximum data rate per video channel 18 Gbps
Maximum pixel clock 600 MHz
Audio
Number of dedicated IO slots 4
Crosspoint 88 x 88 non-blocking
Maximum net data rate per audio stream 36.86 Mbps
Control
Ethernet Control 1x 100Base-T via EtherCON for direct control
User Data 1x 1000Base-T via EtherCON for user data pass-through
Mixed 1x 1000Base-T via EtherCON for control or user data pass-through
RS232 Connector 1x Dsub 9
Symbol rate between 200 and 115200 baud
Configuration 8N1
USB Connector 1x mini USB Type B for LDC control

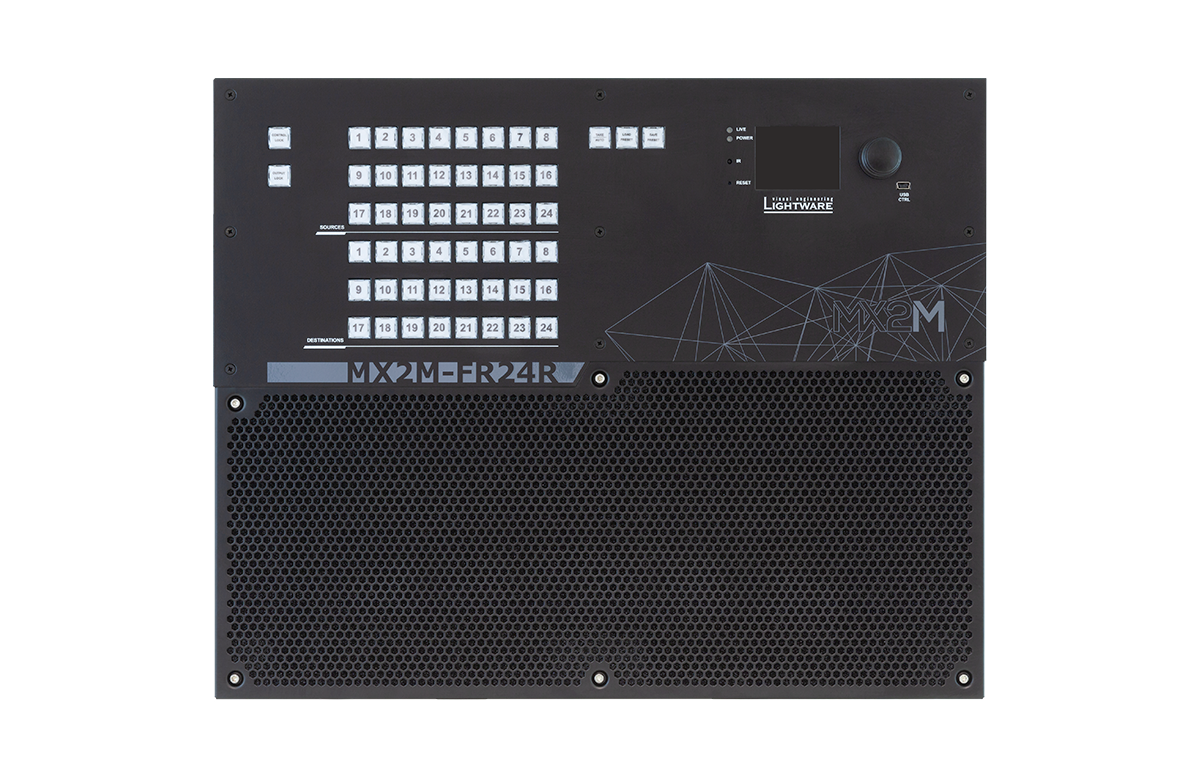

Front panel crosspoint control 24 + 24 + 2 + 3 keys for crosspoint and preset control
Front panel LCD 2.2" 240x320 TFT LCD Display with rotary switch
General
PSU drawer Standrad configuration 1x PSU drawer with IEC connector (90-240 VAC, 50-60 Hz, max 13,5 A)
Redundant configuration 2x PSU drawers with 1x IEC connector per drawer (90-240 VAC, 50-60 Hz, max 13,5 A)
AC line power redundancy 1+1 up to 500 W frame powering, 1+1 up to 600 W PoE powering
Power consumption (max) 500 W
PoE powering Standard configuration up to 600 W
Redundant configuration up to 1200 W (with redundant operation up to 600 W)
Maximum PoE powering per endpoint 100 W
Thermal dissipation (max) Without PoE 1706 BTU per hour
With PoE in a Redundant configuration and maximum PoE powering 2730 BTU per hour
Cooling front-to-back
Mounting Rack mounting Yes
Dimensions Without protruding parts (Chassis handle, PSU drawer handle, mountic bracket) 354.8 mm H x 447 mm W x 400 mm D
With protruding parts (Chassis handle, PSU drawer handle, mountic bracket) 354.8 mm H x 483 mm W x 473 mm D
Weight TBD
Operating conditions Ambient temperature 0-50oC
Relative humidity 0-90% (non-condensing)
Transportation conditions Ambient temperature -20-70oC
Relative humidity 0-95% (non-condensing)
Complience EN 55032:2015
IEC 61000-3-3:2013+AMD1:2017
IEC 61000-3-2:2018
FCC CFR Title 47, Part 15, Subpart B
UL
Warranty 3 years
