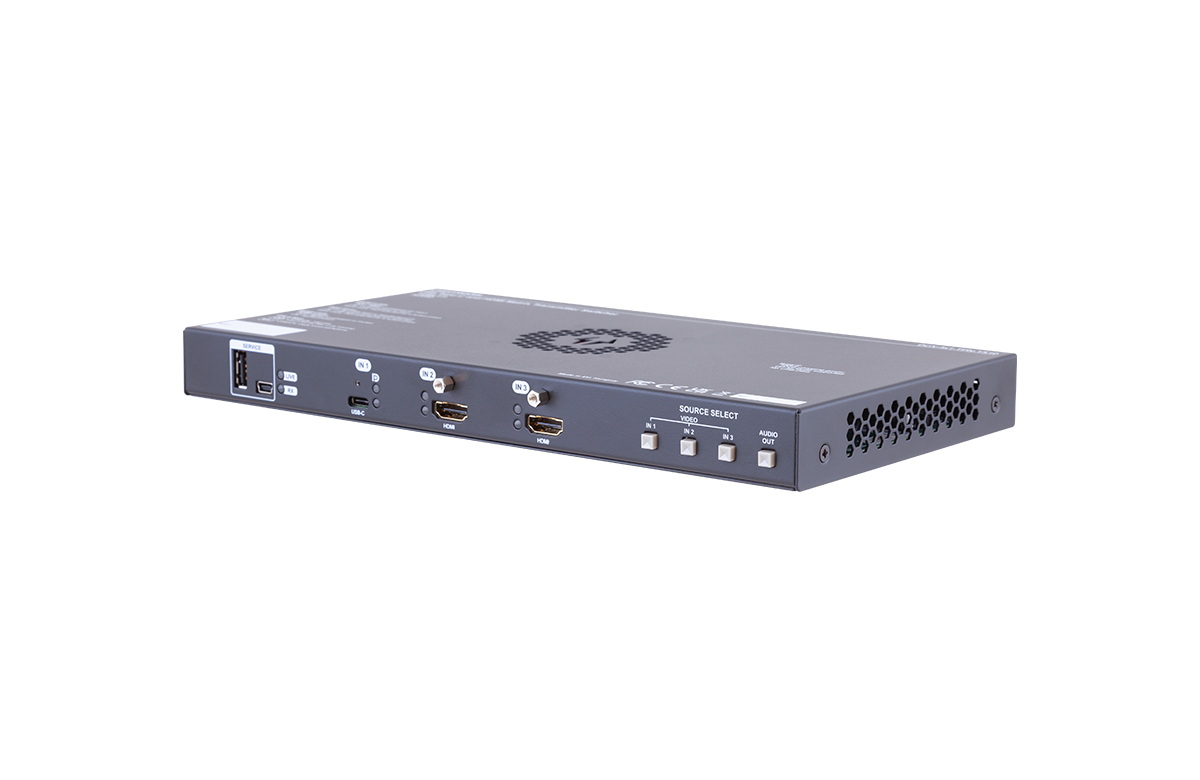

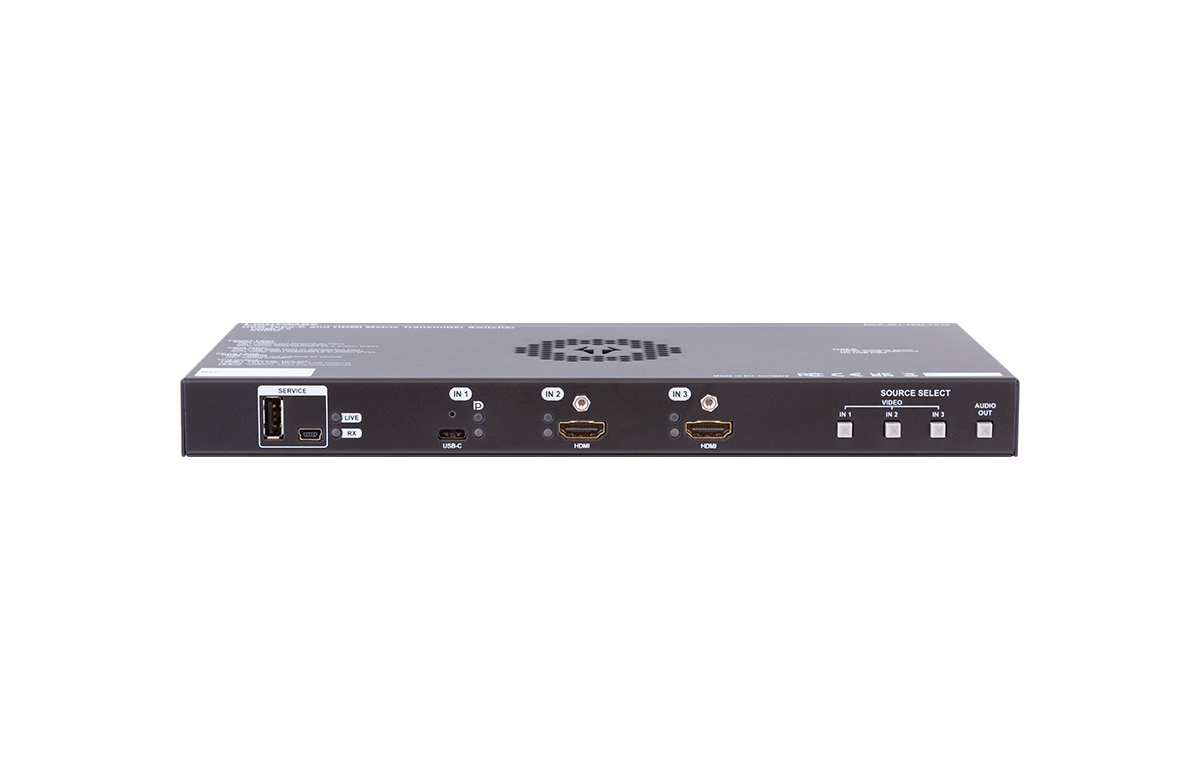

DCX-3x1-TPN-TX10
SKU: 91310096
ShippingUSB Type-C and HDMI Transmitter Switcher
Interested in this product?
Universal transmitter switcher is part of the AV over IP ecosystem with SDVoE technology that provides the same functionality as the DCX product range from a single source to multiple destinations through 10G Ethernet networks.
Details
Universal transmitter switcher is part of the AV over IP ecosystem with SDVoE technology that provides the same functionality as the DCX product range from a single source to multiple destinations through 10G Ethernet networks.
- DCX-TPN combines USB-C and SDVoE technologies
- HDMI 2.0 4K@60 4:4:4 matrix switching over 10G network
- Independent, full bandwidth USB 2.0 matrix switching layer
- Taurus UCX, DCX and HDMI-TPN devices can be combined in a media-over-IP matrix switching system
Specification Table
| General | Compliance | CE; UKCA | |
| Electrical safety | IEC 61000-3-3:2013+AMD1:2017 | ||
| EMC (emission) | IEC/EN 55032:2015 | ||
| EMC (immunity) | IEC/EN 55035:2017 | ||
| RoHS | EN 63000:2018 | ||
| Warranty | 3 years | ||
| Operating temperature | 0° to +50°C (+32° to +122°F) | ||
| Operating humidity | 10% to 90%, non-condensing | ||
| Cooling | Cooling fan | ||
| Power | Power supply | External 160W Power Supply | |
| Supported power source | 100-240 V AC; 50/60 Hz | ||
| AC power plug | Interchangeable (EU, UK, JP/US, AUS/NZ) | ||
| Battery cell type | BR1632A | ||
| Enclosure | Enclosure material | 1 mm steel | |
| Dimensions in mm | 271 W x 140,3 D x 26 H | ||
| Dimensions in inch | 10.7 W x 5.57 D x 1.01 H | ||
| Weight (UCX-4x2-HC30) | 900 g (TO BE CONFIRMED) | ||
| Video Inputs | USB-C input | Connector type | 24-pole USB type C receptacle |
| A/V standard | DP 1.2a | ||
| HDCP compliance | HDCP 1.4, HDCP 2.2 | ||
| Color space | RGB, YCbCr | ||
| Video delay | O frame | ||
| Max. video resolution | 4096x2160@60Hz RGB 4:4:4 (up to 600MHz pixel clock);1920x1080@120 Hz, 36 bit | ||
| Audio formats | all formats in line with HDMI 2.0 standard | ||
| 3D support | yes | ||
| HDMI input | Connector type | 19-pole HDMI Type A receptacle (with screw locking option) | |
| A/V standard | DVI 1.0, HDMI 1.4, HDMI 2.0 | ||
| Maximum data rate | 18Gbps | ||
| Maximum pixel clock | 597MHz | ||
| HDCP compliance | HDCP 1.4, HDCP 2.2 | ||
| Color space | RGB, YCbCr | ||
| Video delay | O frame | ||
| Max. video resolution | 4096x2160@60Hz RGB 4:4:4 (up to 600MHz pixel clock);1920x1080@120 Hz, 36 bit | ||
| Max. input HDMI cable length (with premium certified cable) at 3840x2160@60Hz 4:4:4 | 5m | ||
| Re-clocking | Pixel Accurate Re-clocking | ||
| 3D support | yes | ||
| Audio mode | Simultaneous pass-through and de-embedding to the Audio layer | ||
| Supported audio formats for pass-through | All HDMI2.0 audio formats | ||
| Supported audio formats for de-embedding | Uncompressed | ||
| Compressed | Dolby Digital, DTS; Compressed HBR; Dolby TrueHD, DTS-HD | ||
| Video Outputs | HDMI output | Connector type | 19-pole HDMI Type A receptacle |
| A/V standard | DVI 1.0, HDMI 1.4, HDMI 2.0 | ||
| HDCP compliance | HDCP 1.4, HDCP 2.2 | ||
| Color space | RGB, YCbCr | ||
| Supported resolutions | Up to UHD/4k@60Hz 4:4:4 | ||
| Audio formats | 8 channel PCM, Dolby TrueHD; DTS-HD Master Audio 7.1 | ||
| TPN output | Connector type | RJ45 connector | |
| Power over Ethernet | Not supported | ||
| Data rate | 10GBase-T | ||
| Compliance | AVXT | ||
| HDCP compliance | HDCP 2.3 | ||
| Transferred signals | Video, Audio, USB 2.0, RS-232, OCS, Ethernet | ||
| Color space | RGB, YCbCr | ||
| Supported resolutions at 8 bits/color | up to 4096x2160@60Hz (4:4:4) | ||
| Audio formats | 8-channel PCM, Dolby TrueHD, DTS-HD Master Audio 7.1 | ||
| Audio Ports | Analog audio output | Connector type | 5-pole Phoenix connector |
| Audio formats | 2-ch PCM | ||
| Sampling frequency | 48 kHz | ||
| Volume | -95.62 dB-0 dB | ||
| Balance | -100 +100 (0 = center) | ||
| GPIO port | Connector type | 8-pole Phoenix | |
| Function (pin 1-6) | Configurable (input/output) | ||
| Function (pin 7) | 5V output | ||
| Function (pin 8) | Ground | ||
| Control ports | Ethernet port | Connector type | RJ45 female connector |
| Ethernet data rate | 10/100/1000 Base-T, full duplex with auto detect | ||
| Power over Ethernet (PoE) | Not supported | ||
| USB port | Connector type | A-type receptacle | |
| USB compliance | USB 2.0 | ||
| Connector type | mini B-type | ||
| USB compliance | USB 2.0 | ||
| RS-232 port | Connector type | 3-pole Phoenix connector | |
| Baud rates | between 9600 and 115200 baud | ||
| Data bits | 8 | ||
| Parity | None Odd/Even | ||
| Stop bits | 1/2 | ||
| Output voltage: Low level | 3-15V | ||
| Output voltage: High level | -15V - 3V | ||
Features
USB-C charging up to 100W
Video, Audio and Charging Power over a single USB-C connection
Allows for the transmission of USB-C
Integrated SDVoE Control Server
Other Features
CEC at the HDMI outputs
Supporting Lightware Advanced Room Automation (LARA)
Fitting various IT security standards (e.g. 802.1x compliance)
SSH, SSL, and HTTPS for IT security
Supports uncompressed HDMI 4K signal formats
4K UHD @60Hz RGB 4:4:4, up to 18 Gbps, 600 MHz pixel clock
Audio de-embedding
HDMI 2.0
embedded audio
Ethernet
RS-232 to multiple TPN receiver devices through a 10G Ethernet switch
