UBEX-Pro20-HDMI-R100

Shipping
SKU
9182030X

R-type Uncompressed AV-Over-IP Multimedia System for 10G Ethernet Networks

Highlighted features

  • Scaling of video signals to match the properties of the target display/sink
  • Multiviewer operation mode
  • Support for high bitrate audio, including Dolby TrueHD, Dolby ATMOS and DTS-HD Master Audio
  • HDR support
  • Supports HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps)
  • HDCP 2.2 and HDCP 1.4 compliant with cross conversion capabilities
  • 4096x2160@60Hz/4:4:4 maximum resolution (600MHz)
  • Uncompressed video up to 18 Gbps datarate (600 MHz pixel clock)

Our regional offices and dedicated AV experts are at your disposal and would happily assist you finding the most suitable solution for your AV project.

Simply choose your location and get in touch with your Lightware partner today.

Our dedicated Lightware experts are ready to discuss the needs of your AV projects!

lightware ubex logo

Learn More About The Unrivalled Features of UBEX

Lightware’s UBEX 10G AV-over-IP system brings a plethora of features highly-specific for esport applications, including the support of video signal resolutions up to 4K60 through HDMI 2.0 as well as seamless switching, video wall capabilities and silent operation.

Ubex is a fiber-optical, scaling AV-Over-IP system which allows uncompressed 4K UHD@60Hz 4:4:4 signal extension with latency-free multistreaming, designed to use in a 10G Ethernet network. UBEX operates with zero frame latency, provides seamless switching and lossless reproduction of source signals of up to 4K60Hz 4:4:4, without artifacts. Uncompressed 4K60Hz 4:4:4 data transmission, or visually lossless compression at higher data rates.

It has standard, 10 Gbps SFP+ optical modules installed, which are fieldexchangeable by the user. UBEX can transfer two video signals over a single 10G link with minimal compression, which requires half the router size compared to the needs of similar, 10G IP based architectures. With a 20G configuration, UBEX can transfer 4K@60Hz 4:4:4 over two links uncompressed. The maximum reachable distance is ranging between 400 m and 80 km, depending on the type of singlemode or multimode SFP+ optical modules installed in the device. The UBEX design also favors dual-screen applicationsas a single UBEX device can handle 2x HDMI 2.0 video ports. For video signals which can be transferred within the 10G speed limit of a single optical fiber, a video signal redundancy feature is available employing the second optical fiber channel.

Multiview Feature

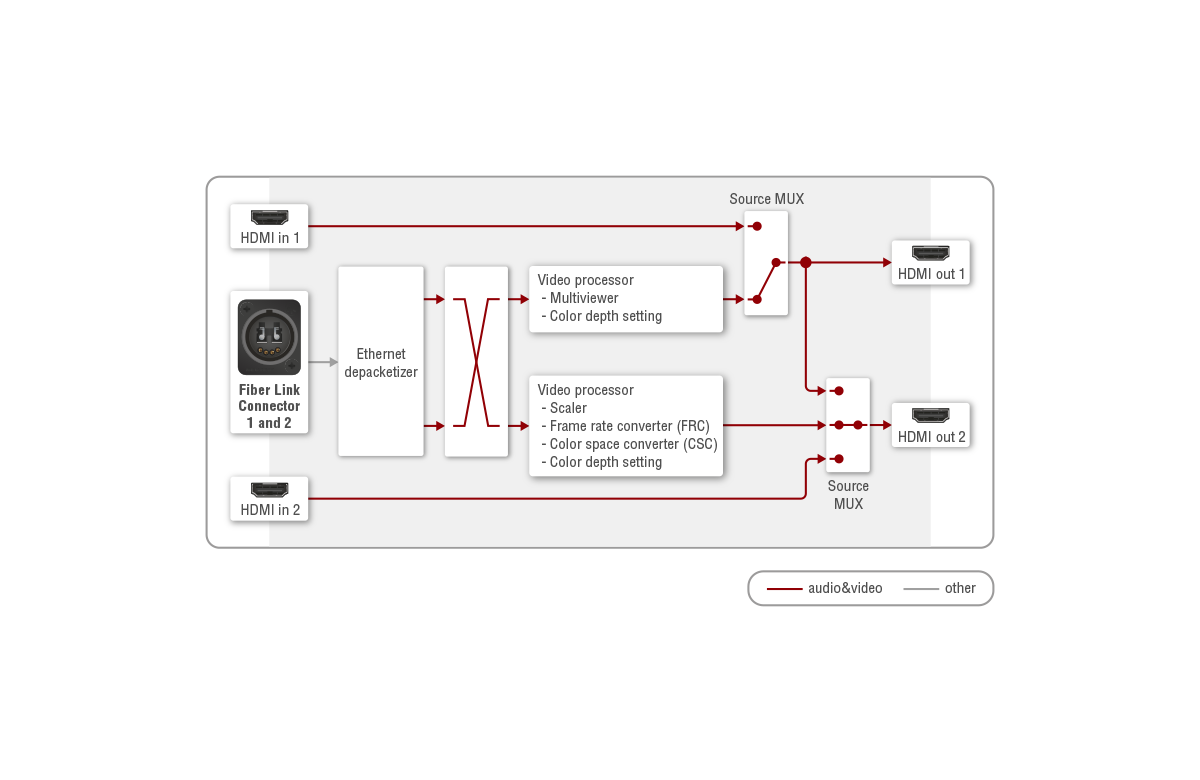

The UBEX receiver in multiviewer operation mode is able to receive 5 video streams (in matrix mode) from the network and create two output videos from them. The 1st output is the multiview built from the 4 streams, and the 5th stream is the 2nd output.

The output image can be positioned in any manner, including the option to turn it off for implementing Picture-in-Picture (PIP) and Picture-by-Picture (PBP). Letterboxing is achievable within each channel, and settings allow the image to fit into the specified frame using Fit, Stretch, or Center options.

In addition, in the multiviewer operation of UBEX, it is possible to set fades for different image transitions using an external controller through the alpha layer.

The Video Wall Wizard for UBEX features quick video wall installation with bezel adjustment and cropping, includes options for various layouts within the video wall matrix and also allows zones for smart management.

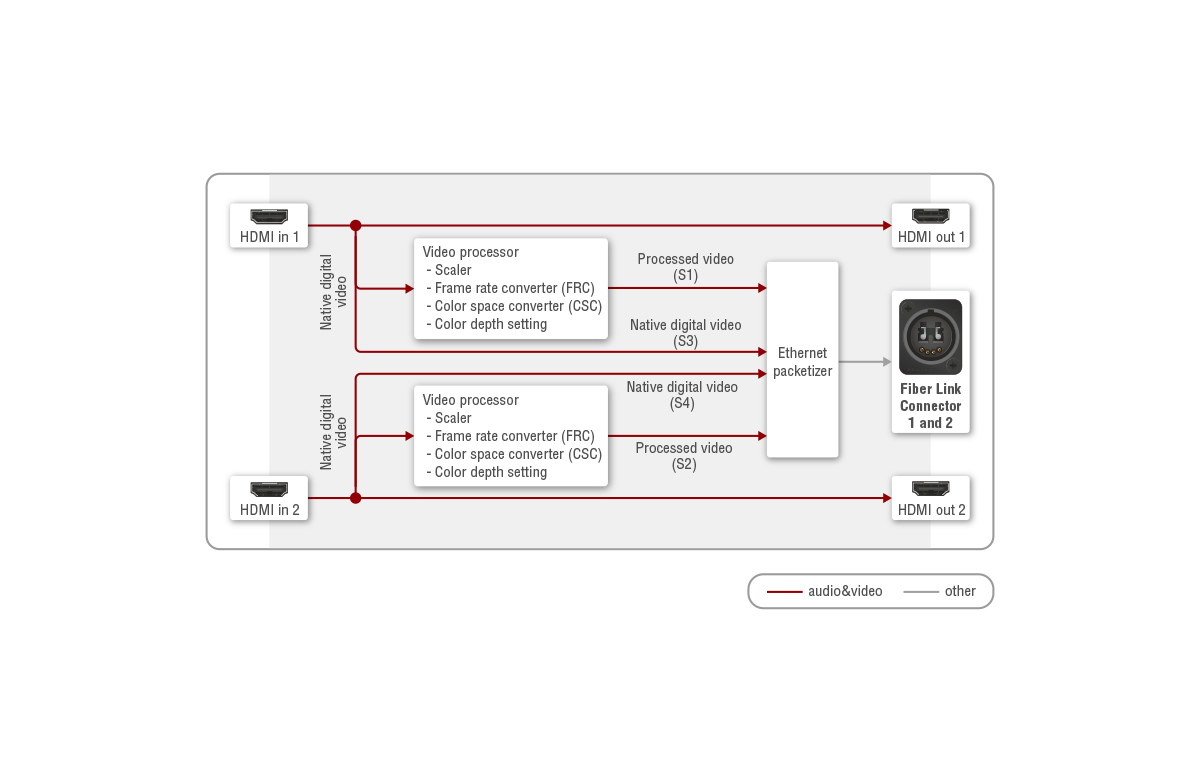

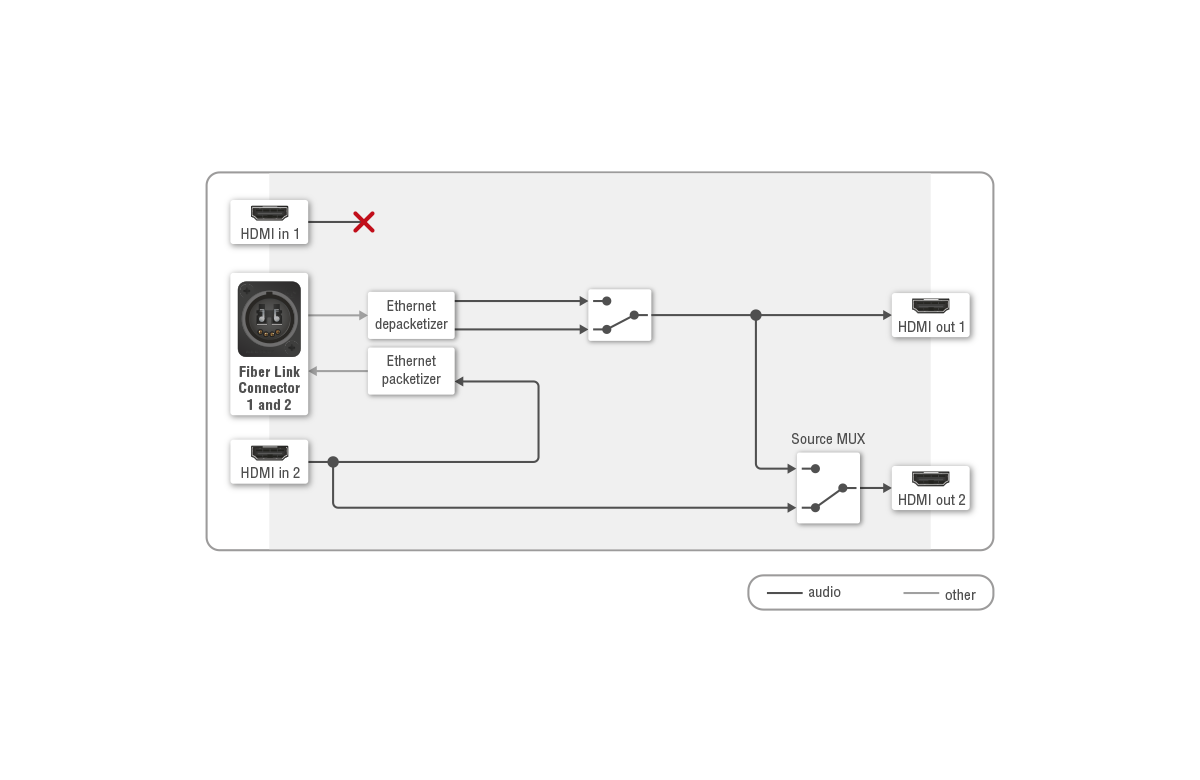

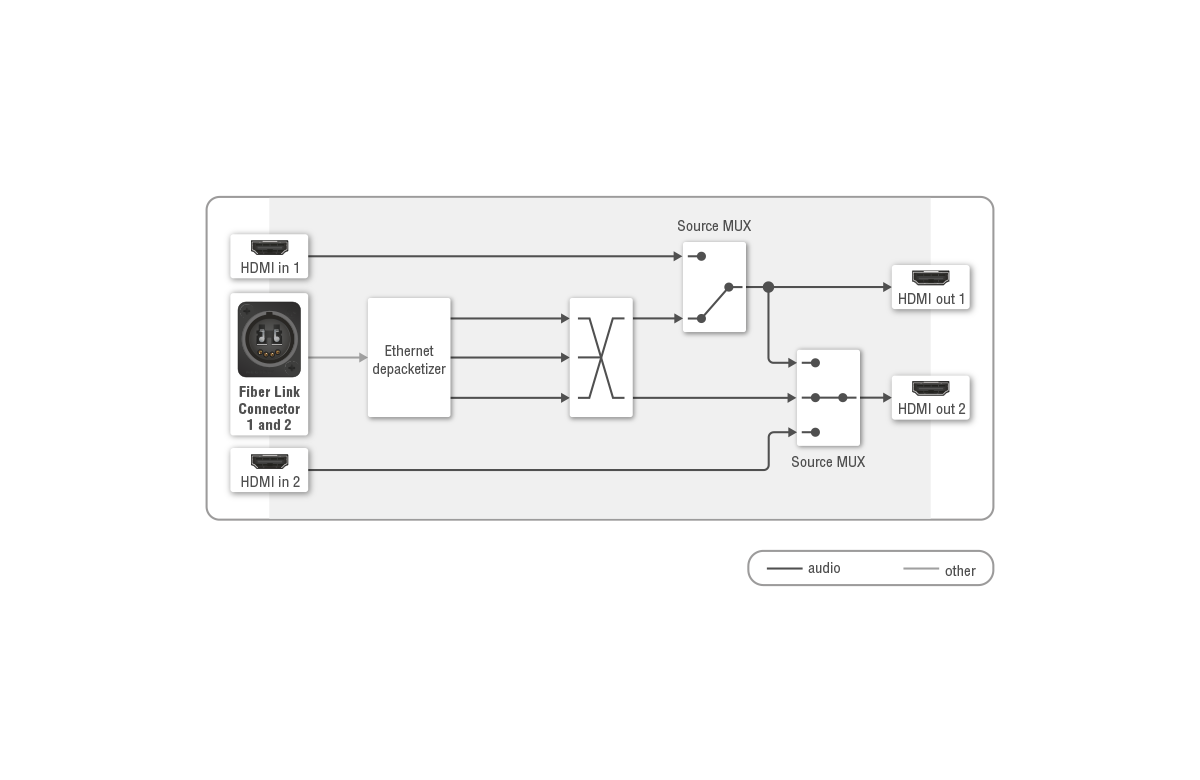

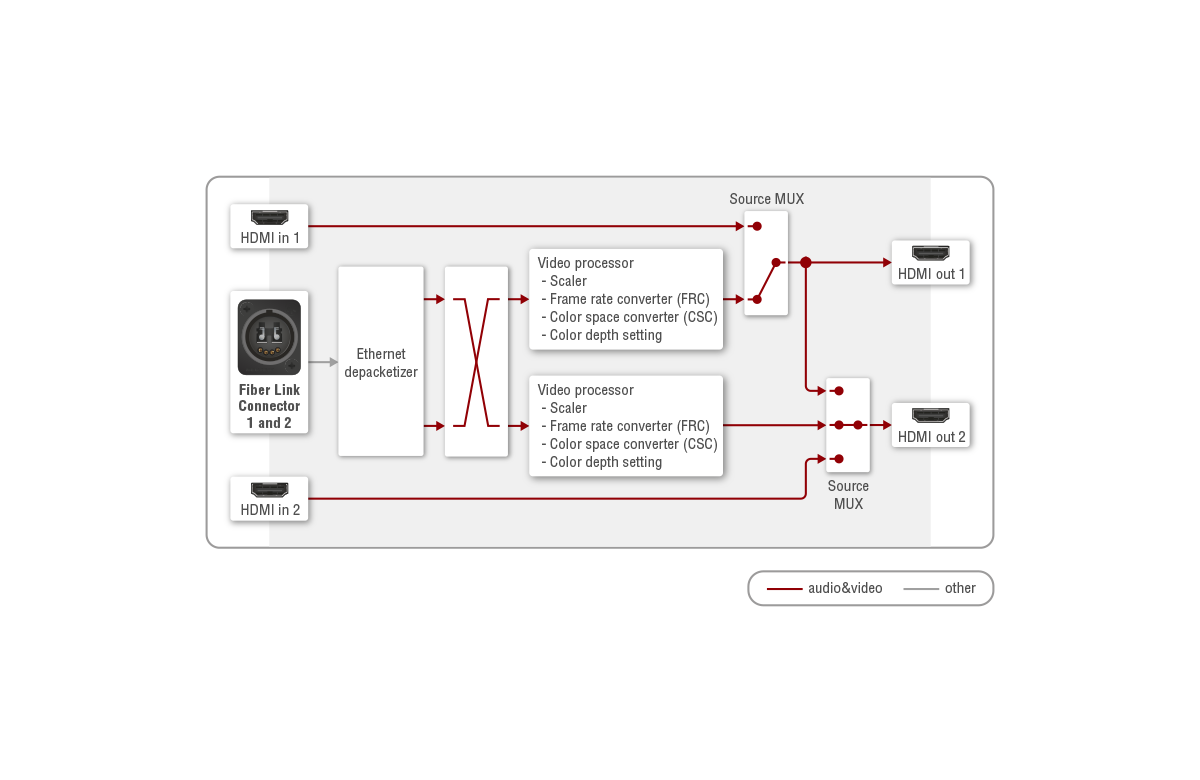

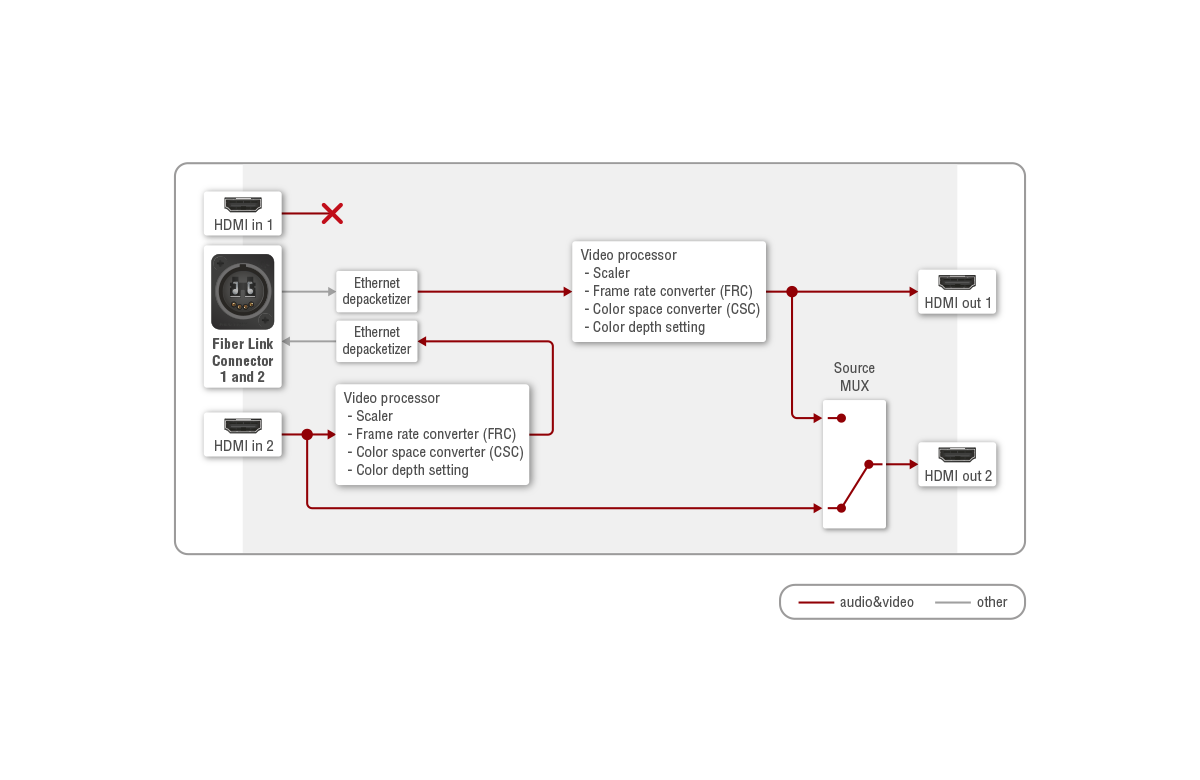

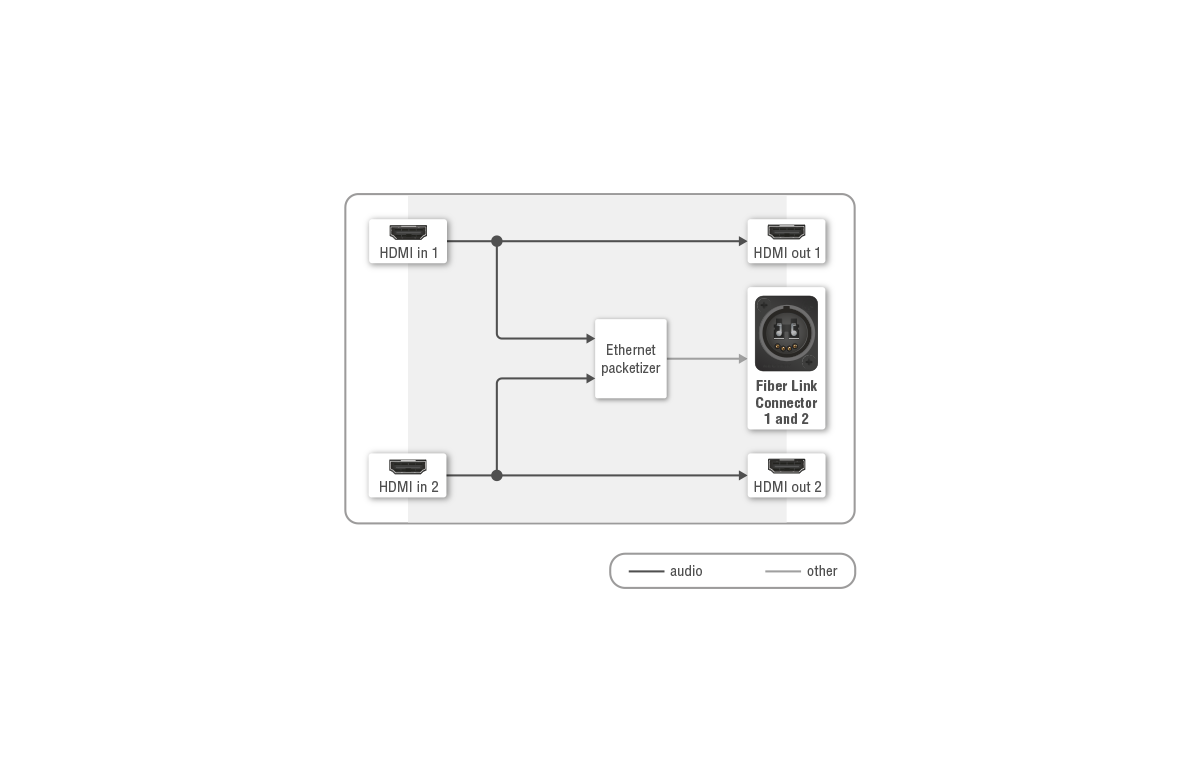

The R-type UBEX product variant is specifically designed to withstand the daily wear and tear impacts of dynamic, Rental&Staging type of applications. The devices shares the features of the standard UBEX–PRO20–HDMI–F100 model, with additional features and changes in build and dimensions.

The internal power source of UBEX has Medical (60601) and ITE (60950) grade classifications for maximum reliability.

R-type Features:

  • Exchangeable cooling air filter inlay
  • Reinforced SFP+ module connector, modules can be changed by removing protective top cover
  • Standard M10 threads on side and top for safe and secure mounting onto truss assemblies
  • Mounting ears and loops for secondary safety clamps
  • Various reinforced optical and power connector type options (see below table for details)
Part Number Product Name SFP+ Module Installed Optical Connector(s) Ethernet Port for Control Power Connector
 91820301 UBEX-Pro20-HDMI-R100 2xMM-2xDUO 2x 10G SFP+ multimode 2x Neutrik OpticalCON DUO 1x Neutrik EtherCON Neutrik PowerCON True1
 91820302 UBEX-Pro20-HDMI-R100 2xMM-QUAD 2x 10G SFP+ multimode 1x Neutrik OpticalCON QUAD 2x Neutrik EtherCON
 91820303 UBEX-Pro20-HDMI-R100 2xSM-2xDUO 2x 10G SFP+ singlemode 2x Neutrik OpticalCON DUO 1x Neutrik EtherCON
 91820304 UBEX-Pro20-HDMI-R100 2xSM-QUAD 2x 10G SFP+ singlemode 1x Neutrik OpticalCON QUAD 2x Neutrik EtherCON
 91820305 UBEX-Pro20-HDMI-R100 2xSM-BiDi-DUO 2x 10G BiDi SFP+ singlemode 1x Neutrik OpticalCON DUO 2x Neutrik EtherCON
Part Number Product Name SFP+ Module Installed Optical Connector(s) Ethernet Port for Control Power Connector
 91820301 UBEX-Pro20-HDMI-R100 2xMM-2xDUO 2x 10G SFP+ multimode 2x Neutrik OpticalCON DUO 1x Neutrik EtherCON Neutrik PowerCON True1
 91820302 UBEX-Pro20-HDMI-R100 2xMM-QUAD 2x 10G SFP+ multimode 1x Neutrik OpticalCON QUAD 2x Neutrik EtherCON
 91820303 UBEX-Pro20-HDMI-R100 2xSM-2xDUO 2x 10G SFP+ singlemode 2x Neutrik OpticalCON DUO 1x Neutrik EtherCON
 91820304 UBEX-Pro20-HDMI-R100 2xSM-QUAD 2x 10G SFP+ singlemode 1x Neutrik OpticalCON QUAD 2x Neutrik EtherCON
 91820305 UBEX-Pro20-HDMI-R100 2xSM-BiDi-DUO 2x 10G BiDi SFP+ singlemode 1x Neutrik OpticalCON DUO 2x Neutrik EtherCON
