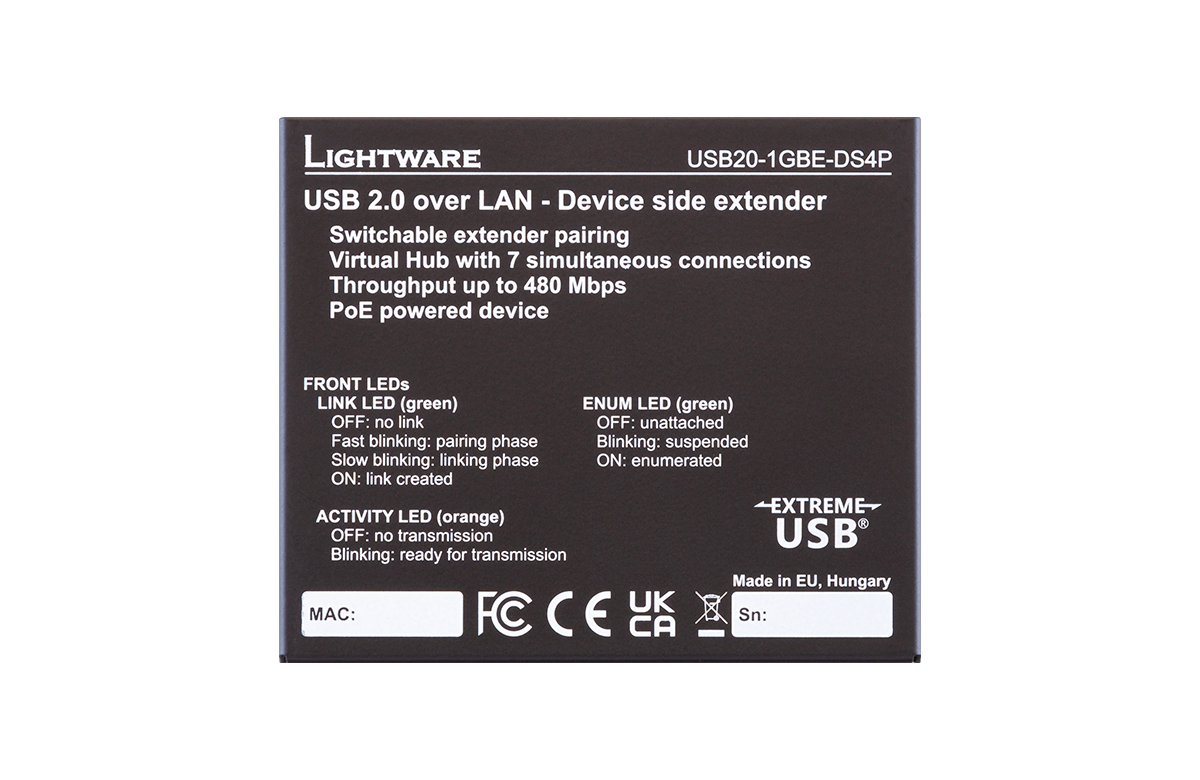

USB20-1GBE-DS4P PoE+ USB 2.0 over LAN device side extender
Being part of an ExtremeUSB(R) USB 2.0 extension solution, this remotely powerable extender can be used to attach USB devices and transmit their data over the LAN or directly towards any AV device that functions as a compatible host side extender.
Highlighted features
- 1500mA charging on the USB ports (3A maximum on all ports)
- LAN and direct cable connectivity supported
- Dynamic pairing to compatible host side extenders
- Transparent USB extension
- Throughput up to 480 Mbps
- PoE+ remote powering capability according to IEEE 802.3at
It is not uncommon that the distance between a USB 2.0 device and a host is more than 5 meters. In such cases, a direct USB cable cannot be used to connect them reliably. With the help of this device side extender USB 2.0 extension solutions can be built that make use of CAT5e/6/7 cables up to 100 meters. Both LAN and direct cable infrastructures are supported.
Another challenging situation where these extenders can be of help is when USB 2.0 devices from multiple locations need to be connected to a single host at the same time. Using a LAN infrastructure, up to 7 of these device side extenders can be paired to a compatible host side extender.
A USB device may be used by a host at a given point of time and another host may want to use the same USB device somewhat later. The device side extender under discussion meets the above need because it can be paired to any compatible host side extender which is also present on the same LAN.
This product focuses solely on USB 2.0 extension and therefore it is a cost-effective product in its category.
As compared to the USB20-1GBE-DS4 extender, this device side extender can also remotely be powered using PoE+ (IEEE 802.3at).
- 1500mA charging on the USB ports (3A maximum on all ports)
- LAN and direct cable connectivity supported
- Dynamic pairing to compatible host side extenders
- Transparent USB extension
- Throughput up to 480 Mbps
- Device class filtering
- True Plug and Play
- Several mounting possibilities
- Small form factor and light weight
- Compatibility with ExtremeUSB® USB 2.0 vendor lock free extension devices
- PoE+ remote powering capability according to IEEE 802.3at

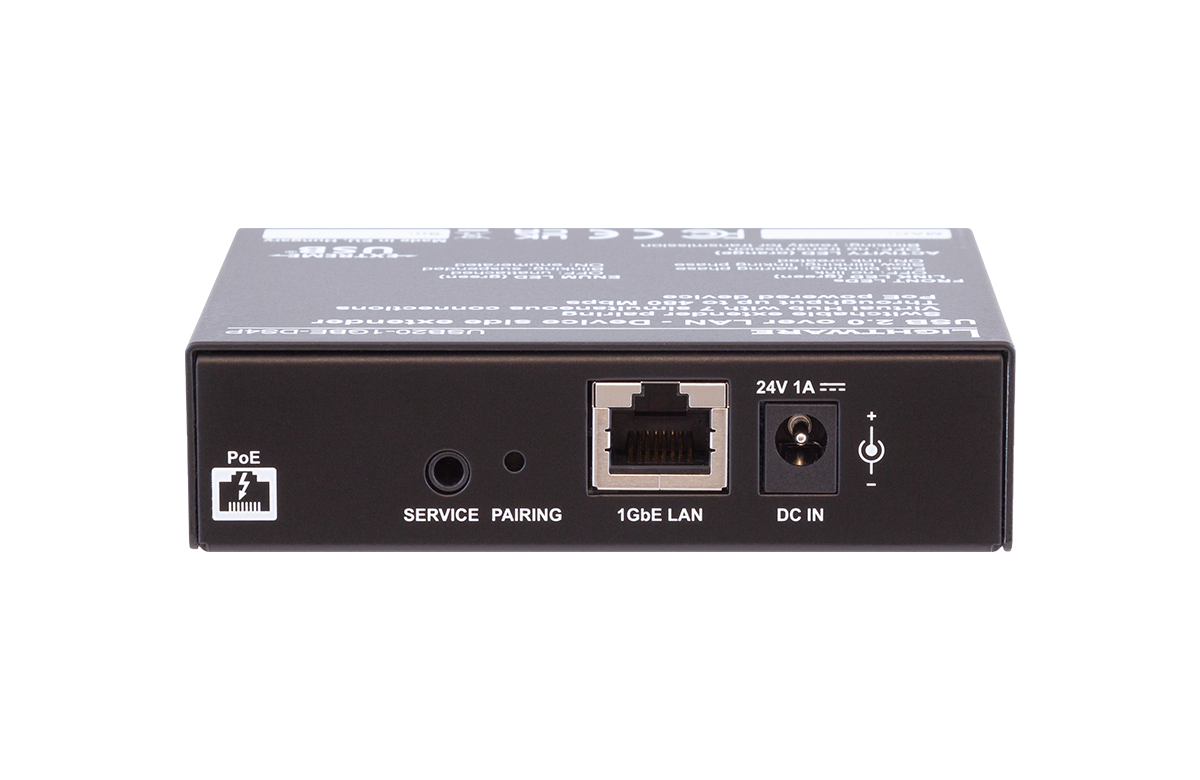

| General | |
| Traffic types | All USB 2.0 and USB 1.1 traffic types |
| Extension range (network infrastructure) | maximum 100m (330 ft) using solid core CAT5e/6/7 cables |
| Extension range (direct connection) | maximum 100m (330 ft) using a single CAT5e/6/7 cable |
| Throughput (USB 2.0) | maximum 480 Mbps |
| Throughput (USB 1.1) | maximum 12 Mbps |
| Supported device types | Control, Interrupt, Isochronous and Bulk |
| Compliance | FCC, CE, UKCA |
| Electrical safety | IEC/EN/UL/CSA 62368-1:2014, Class II |
| EMC (emission) | TBD |
| EMC (immunity) | TBD |
| RoHS | EN 63000:2018 |
| Warranty | 3 years |
| Operating temperature | 0° to +50°C (+32° to +122°F) |
| Storage temperature | -20° to +70˚C (-4° to +158˚F) |
| Operating humidity | 10% to 90%, non-condensing |
| Cooling | passive |
| Pairing control | with pairing buttons and a UDP control protocol |
| Number of USB devices/hubs in a solution | maximum 30 |
| Power | |
| Power supply option | Power adaptor and PoE+ (IEEE 802.3at) |
| Power consumption (max) | TBD |
| Power consumption (min) | TBD |
| Heat dissipation | TBD |
| Power adaptor | |
| Supported power source | 100-240 V AC; 50/60 Hz |
| Supplied power | 24V DC, 1A |
| AC power plug | Interchangable (EU, UK, US, AUS) |
| DC power plug | DC connector (2.1/5.5 mm pin) |
| Enclosure | |
| Rack mountable | Yes, 1U high |
| Enclosure material | 1 mm steel |
| Dimensions in mm | 100.4 W x 85.6 D x 26 H |
| Dimensions in inch | 3.95 W x 3.37 D x 1.02 H |
| Weight | TBD |
| Ports | |
| USB device ports | |
| Number | 4 |
| Connector type | A-type receptacle |
| USB compliance | USB 2.0 |
| Device class | All device classes |
| Ethernet port | |
| Connector type | RJ45 female connector |
| Ethernet data rate | Gigabit Ethernet |
| Power over Ethernet (PoE) | Not supported |
| Number of TIER to USB2.0 layer | 1 |
