MX2-8X8-HDMI20-L
HDMI 2.0 Compatible Full 4K Matrix Switcher
The MX2-8x8-HDMI20 L is an HDMI 2.0 compatible, standalone matrix switcher that supports uncompromised 4K UHD resolution at 60Hz 4:4:4.
Highlighted features
- HDCP 2.2 and HDCP 1.4 compliant with cross conversion capabilities
- Device control via Ethernet (TCP/IP), RS-232 and USB
- Supports HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps)
- HDMI 2.0, HDMI 1.4 and DVI 1.0 compliant
- HDR and Low Latency Dolby Vision support
- High bitrate Audio Support including Dolby Atmos, TrueHD, DTS-HD
- Uncompressed video up to 18 Gbps datarate (600 MHz pixel clock)
The MX2-8x8-HDMI20 L is an HDMI 2.0 compatible, standalone matrix switcher that supports uncompromised 4K UHD resolution at 60Hz 4:4:4.
Its compact size, silent design and its crosspoint switching front panel keys make it is particularly suitable for live events.
This standalone product has 8 HDMI 2.0 inputs and 8 HDMI 2.0 outputs transmitting up to 4K at 60Hz in 4:4:4 format, while supporting 3D, Dolby TrueHD and DTS-HD Master Audio.
The MX2-8x8-HDMI20 L matrix switcher supports both HDR and Dolby Vision in the HDMI signal.
- Front to back cooling airflow
- Built-in universal power supply
- Supports several embedded audio formats (including PCM, Dolby Digital and DTS)
- HDCP 2.2 and HDCP 1.4 compliant with cross conversion capabilities
- Vista Spyder and Barco Encore compatibility
- Advanced EDID Management
- Front panel LCD menu and buttons for crosspoint control
- Device control via Ethernet (TCP/IP), RS-232 and USB
- CEC support (command injection)
- Supports HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps)
- HDMI 2.0, HDMI 1.4 and DVI 1.0 compliant
- HDR and Low Latency Dolby Vision support
- Pixel Accurate Reclocking
- High bitrate Audio Support including Dolby Atmos, TrueHD, DTS-HD
- Uncompressed video up to 18 Gbps datarate (600 MHz pixel clock)
- No signal latency, zero frame delay
|
Product name |
|||||
|
Recommended application |
All purposes |
Rental and staging |
Fix installation |
Fix installation |
Fix installation |
|
HDMI inputs |
8x |
8x |
8x |
8x |
4x |
|
HDMI outputs |
8x (with split feature) |
8x |
8x |
4x |
4x |
|
Audio inputs |
8x |
No |
2x |
2x |
No |
|
Audio outputs |
8x |
No |
2x |
2x |
2x |
|
Front panel buttons |
Yes |
Yes |
No |
No |
No |
|
Front panel LCD menu |
Yes |
Yes |
Yes |
Yes |
Yes |
|

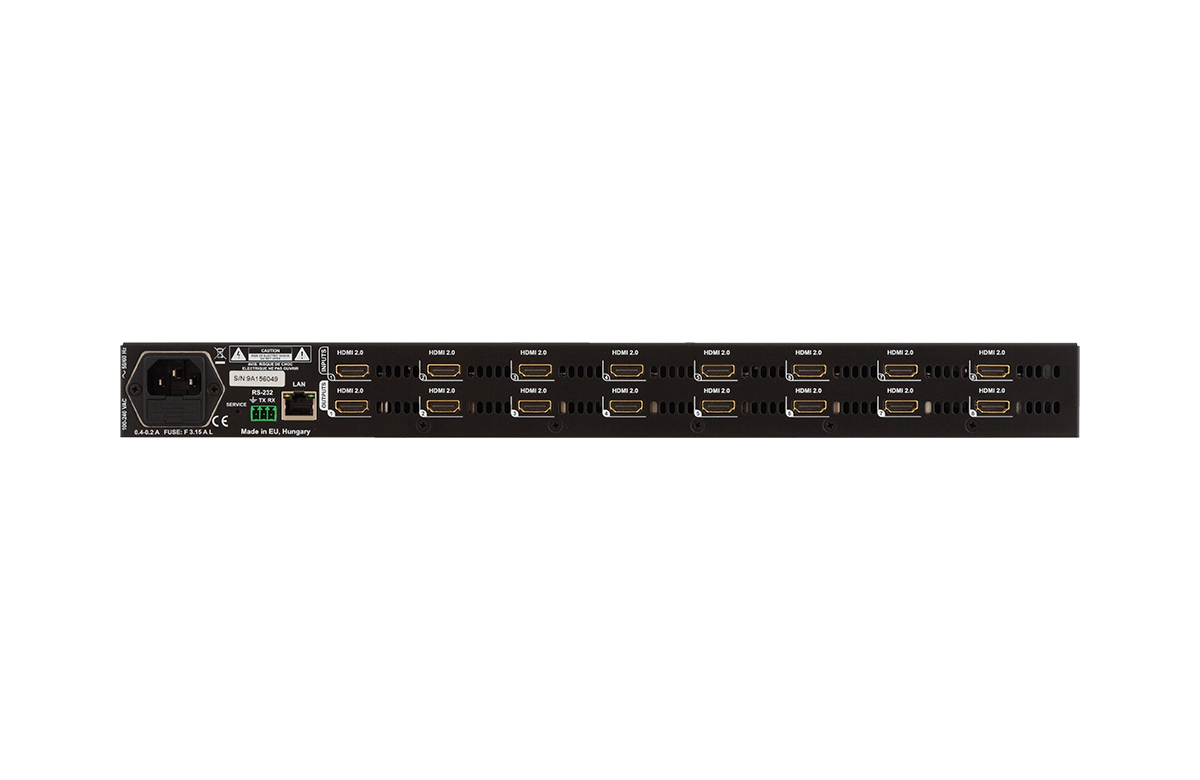

Connectors |
|
|
Power: |
IEC standard, 110/220V |
|
Video inputs: |
8 x HDMI 2.0 |
|
Video outputs: |
8 x HDMI 2.0 |
|
Audio inputs / outputs: |
Stereo, balanced, 5-pole Phoenix |
|
Serial control: |
3-pole Phoenix |
|
Ethernet: |
RJ45 |
|
USB: |
mini USB |
|
Specifications |
|
|
Routing: |
8 input 8 output, non blocking architecture |
|
Speed: |
18 Gbps per port |
|
Resolution: |
Up to 4096x2160@60Hz at RGB 4:4:4 |
|
Dimensions: |
1RU height, 442 W x 277.5 D x 43,7 H mm* |
|
Mounting: |
Rack mountable, removable rack ears |
