UCX-2x1-TPN-TX20
Shipping
SKU
91310102
USB Type-C and HDMI Transmitter Switcher
Universal transmitter switcher is part of the AV over IP ecosystem with SDVoE technology that provides the same functionality as the UCX product range from a single source to multiple destinations through 10G Ethernet networks.
Highlighted features
- USB-C charging up to 100W
- Variant available with NIST FIPS 140-2 certified Lightware Crypto Core (UCX-2x1-TPN-TX20-LCC, SKU: 91360033)
- Multiple USB 2.0 connectivity for any type of USB device (Camera, speakerphone, touch monitor, USB-HID devices etc.)
- Room device control via Ethernet (TCP/IP), Serial, OCS or local GPIOs
- Independent USB Host switching layer for multiple USB hosts, for devices connected to TPN receivers and for 4 devices at TX side
- Video, Audio, Data and Charging Power over a single USB-C connection
- Allows for the transmission of USB-C, HDMI 2.0, embedded audio, Ethernet, RS-232 to multiple TPN receiver devices through a 10G Ethernet switch
- Integrated SDVoE Control Server
- UCX-TPN combines Full-Featured USB-C and SDVoE
- HDMI2.0 4K@60 4:4:4 matrix switching over 10G network
- Independent, full bandwidth USB 2.0 matrix switching layer, supporting multiple USB camera sources
- Taurus UCX, DCX and HDMI-TPN devices can be combined in a media-over-IP matrix switching system
- Also available with NIST FIPS 140-2 certified cryptography (SKU: 91360033)
- USB-C charging up to 100W
- CEC at the HDMI outputs
- Variant available with NIST FIPS 140-2 certified Lightware Crypto Core (UCX-2x1-TPN-TX20-LCC, SKU: 91360033)
- Supporting Lightware Advanced Room Automation (LARA)
- SSH, SSL, and HTTPS for IT security
- Multiple USB 2.0 connectivity for any type of USB device (Camera, speakerphone, touch monitor, USB-HID devices etc.)
- Room device control via Ethernet (TCP/IP), Serial, OCS or local GPIOs
- Supports uncompressed HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps, 600 MHz pixel clock)
- Welcome screen for custom corporate logo and on-screen display warning messages
- Multiple Ethernet network configurations fitting various corporate network topologies and IT security standards (e.g. 802.1x compliance)
- Independent USB Host switching layer for multiple USB hosts, for devices connected to TPN receivers and for 4 devices at TX side
- Video, Audio, Data and Charging Power over a single USB-C connection
- Allows for the transmission of USB-C, HDMI 2.0, embedded audio, Ethernet, RS-232 to multiple TPN receiver devices through a 10G Ethernet switch
- Integrated SDVoE Control Server
- Audio de-embedding
- Serial and GPIO control ports
| General | Compliance | CE; UKCA | |
| Electrical safety | IEC 61000-3-3:2013+AMD1:2017 | ||
| EMC (emission) | IEC/EN 55032:2015 | ||
| EMC (immunity) | IEC/EN 55035:2017 | ||
| RoHS | EN 63000:2018 | ||
| Warranty | 3 years | ||
| Operating temperature | 0° to +50°C (+32° to +122°F) | ||
| Operating humidity | 10% to 90%, non-condensing | ||
| Cooling | Cooling fan | ||

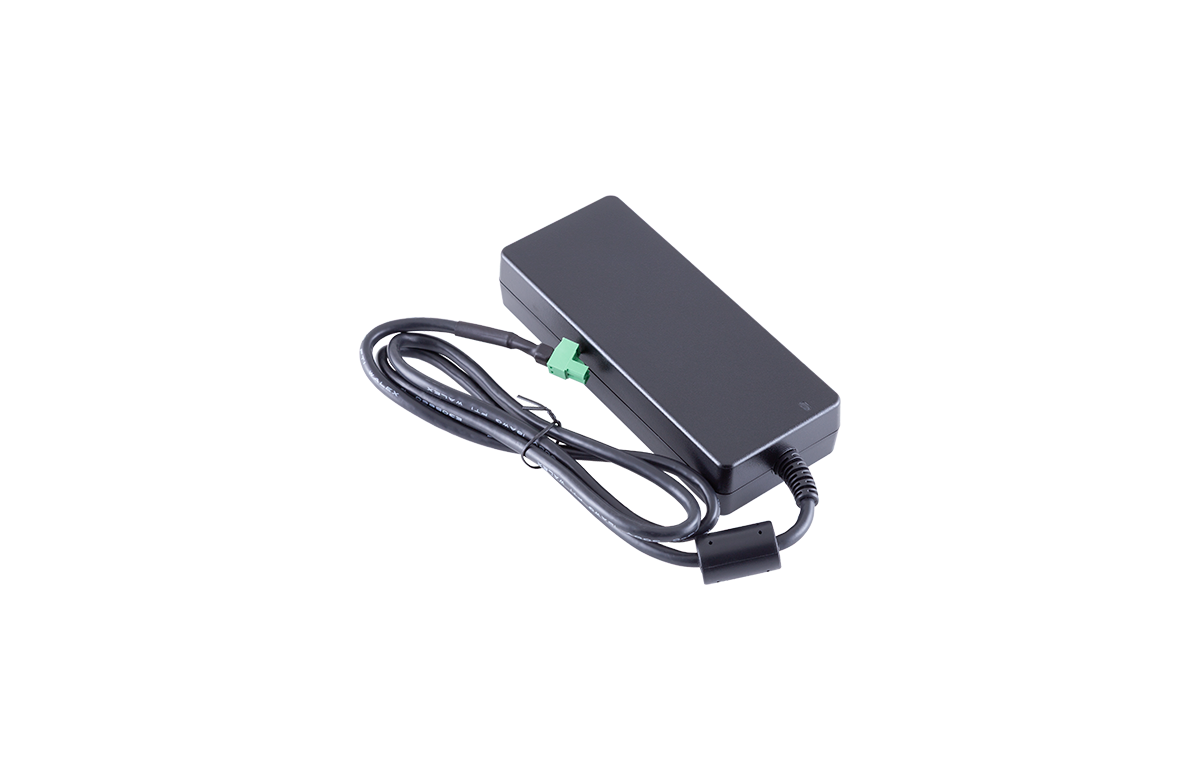

| Power | Power supply | External 160W Power Supply | |
| Supported power source | 100-240 V AC; 50/60 Hz | ||
| AC power plug | Interchangeable (EU, UK, JP/US, AUS/NZ) | ||
| Battery cell type | BR1632A | ||
| Enclosure | Enclosure material | 1 mm steel | |
| Dimensions in mm | 271 W x 140,3 D x 26 H | ||
| Dimensions in inch | 10.7 W x 5.57 D x 1.01 H | ||
| Weight (UCX-4x2-HC30) | 900 g (TO BE CONFIRMED) | ||
| Video Inputs | USB-C input | Connector type | 24-pole USB type C receptacle |
| A/V standard | DP 1.2a | ||
| HDCP compliance | HDCP 1.4, HDCP 2.2 | ||
| Color space | RGB, YCbCr | ||
| Video delay | O frame | ||
| Max. video resolution | 4096x2160@60Hz RGB 4:4:4 (up to 600MHz pixel clock);1920x1080@120 Hz, 36 bit | ||
| Audio formats | all formats in line with HDMI 2.0 standard | ||
| 3D support | yes | ||
| HDMI input | Connector type | 19-pole HDMI Type A receptacle (with screw locking option) | |
| A/V standard | DVI 1.0, HDMI 1.4, HDMI 2.0 | ||
| Maximum data rate | 18Gbps | ||
| Maximum pixel clock | 597MHz | ||
| HDCP compliance | HDCP 1.4, HDCP 2.2 | ||
| Color space | RGB, YCbCr | ||
| Video delay | O frame | ||
| Max. video resolution | 4096x2160@60Hz RGB 4:4:4 (up to 600MHz pixel clock);1920x1080@120 Hz, 36 bit | ||
| Max. input HDMI cable length (with premium certified cable) at 3840x2160@60Hz 4:4:4 | 5m | ||
| Re-clocking | Pixel Accurate Re-clocking | ||
| 3D support | yes | ||
| Audio mode | Simultaneous pass-through and de-embedding to the Audio layer | ||
| Supported audio formats for pass-through | All HDMI2.0 audio formats | ||
| Supported audio formats for de-embedding | Uncompressed | ||
| Compressed | Dolby Digital, DTS; Compressed HBR; Dolby TrueHD, DTS-HD | ||
| Video Outputs | HDMI output | Connector type | 19-pole HDMI Type A receptacle |
| A/V standard | DVI 1.0, HDMI 1.4, HDMI 2.0 | ||
| HDCP compliance | HDCP 1.4, HDCP 2.2 | ||
| Color space | RGB, YCbCr | ||
| Supported resolutions | Up to UHD/4k@60Hz 4:4:4 | ||
| Audio formats | 8 channel PCM, Dolby TrueHD; DTS-HD Master Audio 7.1 | ||
| Audio Ports | Analog audio output | Connector type | 5-pole Phoenix connector |
| Audio formats | 2-ch PCM | ||
| Sampling frequency | 48 kHz | ||
| Volume | -95.62 dB-0 dB | ||
| Balance | -100 +100 (0 = center) | ||
| GPIO port | Connector type | 8-pole Phoenix | |
| Function (pin 1-6) | Configurable (input/output) | ||
| Function (pin 7) | 5V output | ||
| Function (pin 8) | Ground | ||
| USB Ports | Host port (UFP) | Connector type | C-type receptacle |
| USB compliance | USB 2.0 | ||
| Connector type | B-type receptacle | ||
| USB compliance | USB 2.0 | ||
| Device port (DFP) | Connector type | A-type receptacle | |
| USB compliance | USB 2.0 | ||
| Control ports | Ethernet port | Connector type | RJ45 female connector |
| Ethernet data rate | 10/100/1000 Base-T, full duplex with auto detect | ||
| Power over Ethernet (PoE) | Not supported | ||
| USB port | Connector type | A-type receptacle | |
| USB compliance | USB 2.0 | ||
| Connector type | mini B-type | ||
| USB compliance | USB 2.0 | ||
| RS-232 port | Connector type | 3-pole Phoenix connector | |
| Baud rates | between 9600 and 115200 baud | ||
| Data bits | 8 | ||
| Parity | None Odd/Even | ||
| Stop bits | 1/2 | ||
| Output voltage: Low level | 3-15V | ||
| Output voltage: High level | -15V - 3V | ||
