HDMI-TPX-RX107A-SR
SKU: 91580014
ShippingSDVoE compatible HDMI 2.0 scaling receiver
Details
Scaling Receiver for HDMI 2.0 Signals
The HDMI-TPX-RX107A-SR is a scaling receiver device based on SDVoE technology that allows users to receive HDMI 2.0 compliant video, audio, and control signals coming from a compatible SDVoE transmitter (like HDMI-TPX-TX209AK extender or the MX2M-4TPX-OB matrix board from Lightware) through a direct CAT6A copper connection.

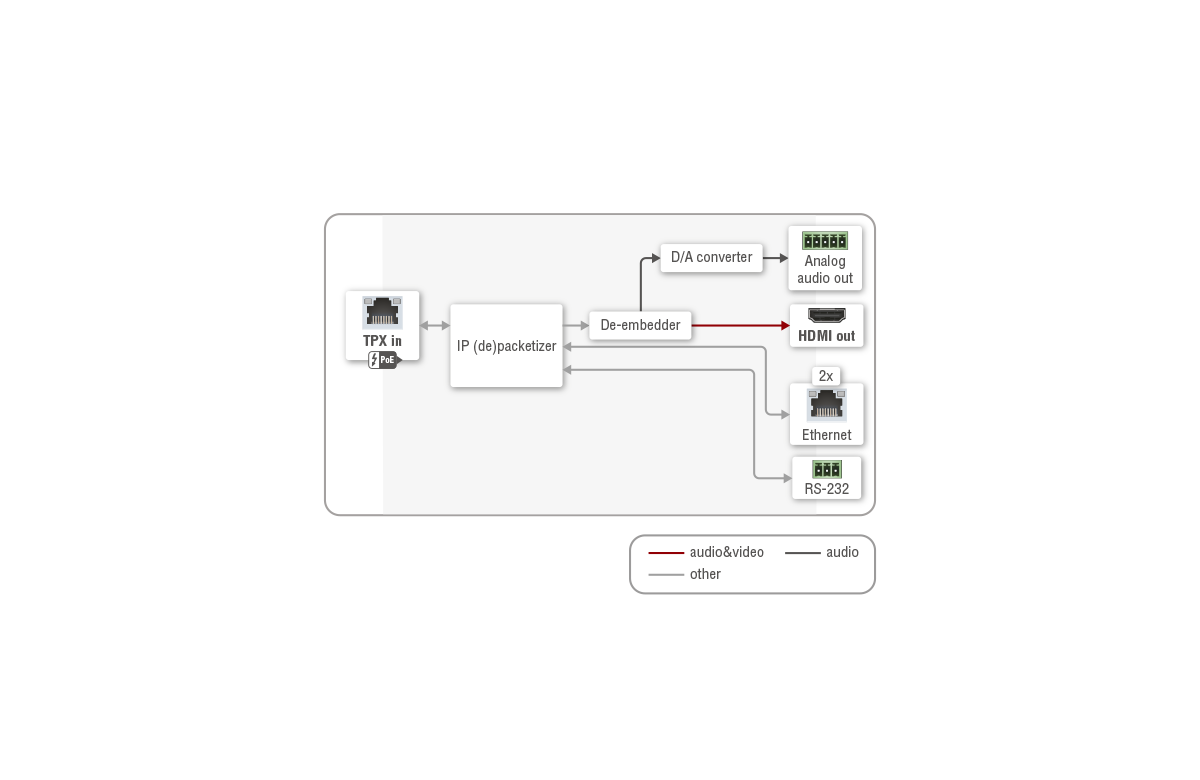

Ensure Seamless Connectivity
Beyond the benefits of receiving high-resolution video with corresponding audio content through a distance of at most 100m, the HDMI-TPX-RX107A-SR is also able to handle various connectivity standards including a 1GbE user Ethernet channel over the TPX link, as well as command injection into RS-232.
The in-built scaler can cater for adjusting the video content to the format of the attached display. Moreover, the scaler is also able to handle glitches in the video arriving at the input of the corresponding transmitter by outputting an uninterrupted HDMI signal.
The Gigabit Ethernet ports are valuable additions allowing users to connect Ethernet capable devices to the corporate user network directly through the TPX extender. This is particularly useful for controlling external devices like projectors and displays.
TPX Series
for Seamless AV Connectivity
The TPX Series offers high-performance signal extension and conversion, ideal for professional AV environments. With support for HDMI, DisplayPort, and other formats, TPX ensures reliable, long-distance transmission for demanding installations. Explore more on our product page.
Specification Table
| General | |
| Compliance | UL, CE |
| Electrical safety | IEC/EN/UL/CSA 62368-1:2014, Class II |
| EMC (emission) | IEC/EN 55032:2015 |
| EMC (immunity) | IEC/EN 55035:2017 |
| RoHS | EN 63000:2018 |
| Warranty | 3 years |
| Operating temperature | 0° to +50°C (+32° to +122°F) |
| Storage temperature | -30° to +80˚C (-22° to +176˚F) |
| Operating humidity | 10% to 90%, non-condensing |
| Cooling | passive |
| Power | |
| Power supply option | Power adaptor / PoE |
| Power consumption (max) | TBD |
| Heat dissipation | TBD |
| Power over Ethernet (PoE) | via TPX input (IEEE802.3af) (can receive power) |
| Supported power source | 100-240 V AC; 50/60 Hz |
| Supplied power | 12V DC, 2A |
| AC power plug | Interchangable (EU, UK, JP/US, AUS/NZ) |
| DC power plug | Locking DC connector (2.1/5.5 mm pin) |
| Enclosure | |
| Rack mountable | No |
| Enclosure material | 1 mm steel |
| Dimensions in mm | 138 W x 151.8 D x 26 H |
| Dimensions in inch | 5.43 W x 5.98 D x 1.02 H |
| Weight | TBD kg |
| Video Inputs | |
| TPX Input | |
| Connector type | RJ45 connector |
| Power over Ethernet (PoE) | IEEE 802.3af (PD) |
| Compliance | SDVoE (point-to-point) |
| HDCP compliance | HDCP2.3 |
| Transferred signals | Video, Audio, RS-232, Infrared, Ethernet |
| Color space | RGB, YCbCr |
| Video delay | 0 frame |
| Supported resolutions at 8 bits/color * | up to 4096x2048@60Hz (4:4:4) |
| up to 3840x2160@60Hz (4:4:4) | |
| 4096x2048@60Hz (4:2:2) up to 10 bits/color | |
| Audio formats | All HDMI 2.0 formats including multi-channel PCM, Dolby True-HD and DTS-HD master audio |
| * The horizontal resolution for signals above the bandwith limit of HDMI 1.4 cannot exceed 4096 pixels. | |
| Video Outputs | |
| HDMI Output | |
| Connector type | 19-pole HDMI Type A receptacle |
| A/V standard | DVI 1.0, HDMI 1.4, HDMI 2.0 |
| HDCP compliance | HDCP 2.3 |
| Color space | RGB, YCbCr |
| Supported resolutions at 8 bits/color * | up to 4096x2048@60Hz (4:4:4) |
| up to 3840x2160@60Hz (4:4:4) | |
| 4096x2048@60Hz (4:2:2) up to 10 bits/color | |
| Audio formats | All HDMI 2.0 formats including multi-channel PCM, Dolby True-HD and DTS-HD master audio |
| Scaling | Scaling to EDID preferred resoltion or custom resolution with the following limitations: * When scaling is used, the scaler output is always RGB 8 bit/component. * A picture with resolution of 3840 x 2160 cannot be scaled down to 640 x 480, 800 x 600, 960 x 1280, 1024 x 768, 1050 x 1400, or 1200 x 1600 when the aspect ratio is kept by utilizing letterbox. * A picture with resolution of 4096 x 2160 cannot be scaled down to 640 x 480, 800 x 600, 960 x 1280, 1024 x 768, 1050 x 1400, 1200 x 1600, 1280 x 768, 1680 x 1050, or 1900x1200 when the aspect ratio is kept by utilizing letterbox. |
| * All standard VESA and CEA resolutions up to 600MHz (HDMI2.0) and other custom resolutions up to 600Mhz are supported. | |
| Audio Ports | |
| Analog Audio Output | |
| Connector type | 5-pole Phoenix connector |
| Audio formats | 2-ch PCM |
| Sampling frequency | 48 kHz |
| Volume | -78 dB - 0 dB |
| Balance | 0 - 100 (50 = center) |
| Nominal Differential Output Level @ 0 dB Gain | +4 dBu |
| Nominal Differential Output Level @ 3 dB Gain | +7 dBu |
| Control Ports | |
| RS-232 serial port | |
| Connector type | 3-pole Phoenix connector |
| Baud rates | Between 4800 and 115200 Baud |
| Data bits | 8 or 9 |
| Parity | None / Odd / Even |
| Stop bits | 1 / 1.5 / 2 |
| Ethernet port | |
| Connector type | RJ45 female connector (2) |
| Ethernet data rate | 10/100/1000Base-T, full duplex with autodetect |
| Power over Ethernet (PoE) | No |
Features
Offers scaling
for format conversion and uninterrupted output
Allows for the transmission of HDMI 2.0 video
embedded audio, Ethernet, RS-232 and USB2.0 between an extender pair directly connected together
Can be remote powered through CATx cable
PoE PD
Supports HDMI 4K signal formats
4K UHD @60Hz RGB 4:4:4, up to 18 Gbps
HDR and Low Latency Dolby Vision support
Compatible Devices
7 products
