HDMI-TPX-TX106A
SKU: 91580003
ShippingAVX (non-switchable) HDMI 2.0 extender
Details
Extend 4K HDMI Signals
The HDMI-TPX-TX106A extender with AVX technology are Lightware’s newest development and a natural progression from the widely popular HDMI-TPS-TX/RX96 series, allowing users to extend HDMI 2.0 signals up to 4K60 4:4:4 video resolution through a single CATx cable over distances up to 100 meters.

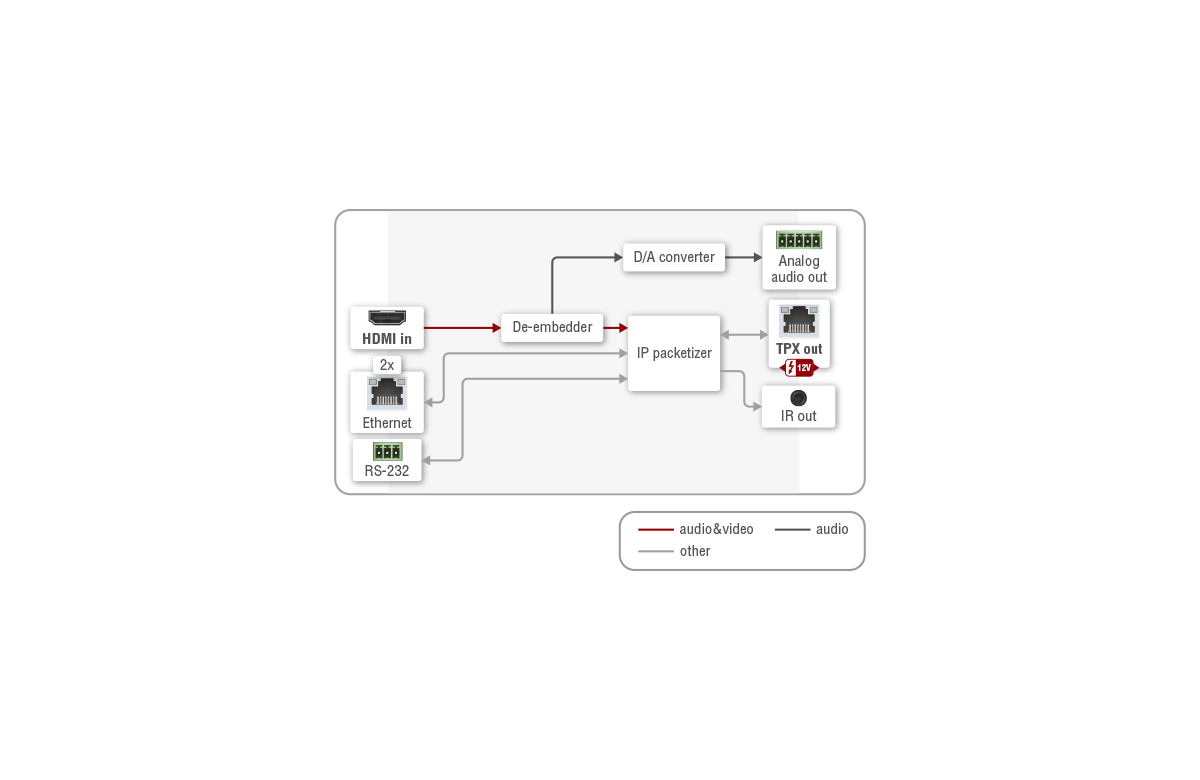

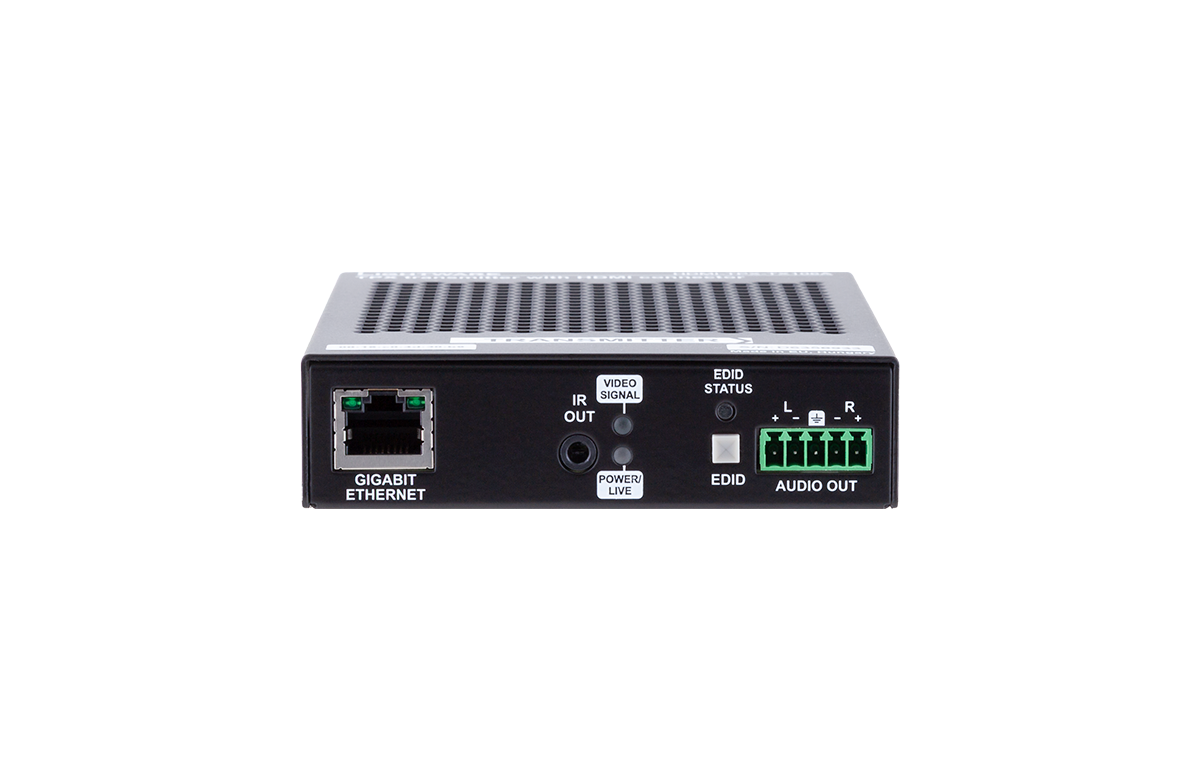

The HDMI-TPX-TX106A features a stereo analog audio output DAC converted from the input HDMI stream for feeding local audio receivers.

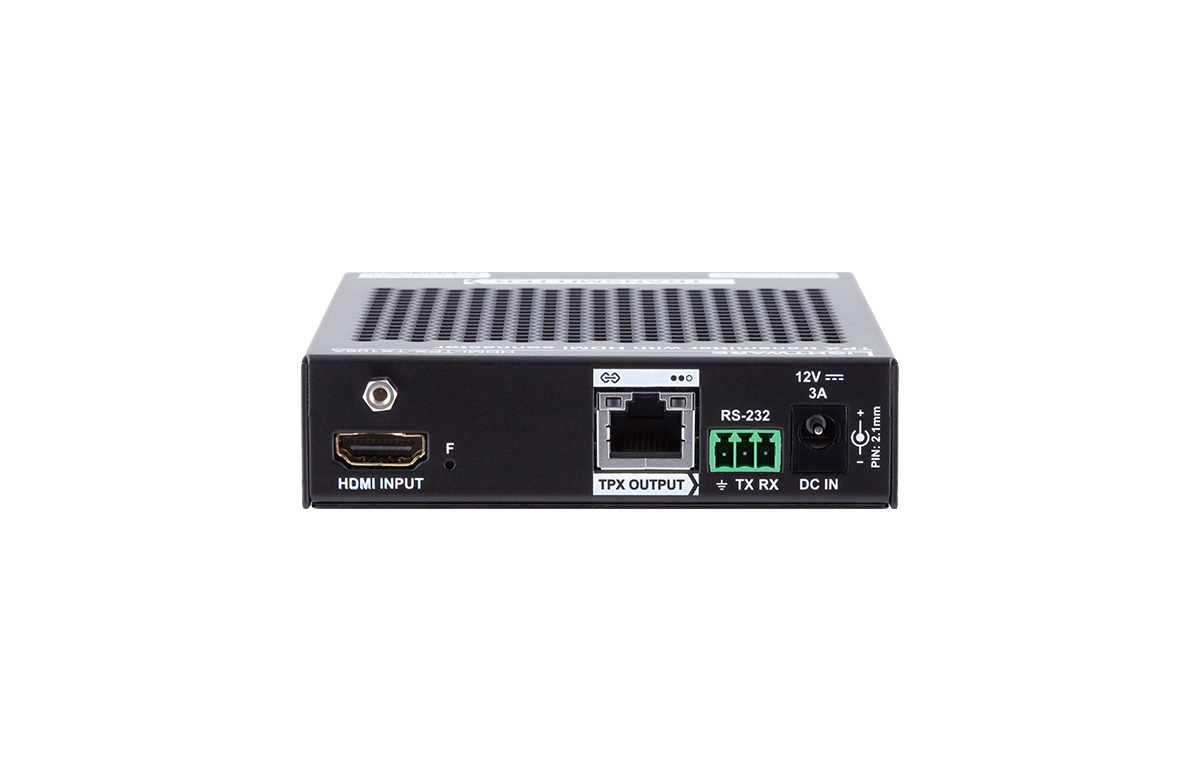

Seamless Connectivity
Beyond the benefits of sending high-resolution video over long distances, the extenders are also capable to handle various connectivity standards, including bi-directional RS-232, command injection over IR (output only) * as well as sending and receiving *PoC remote powering.

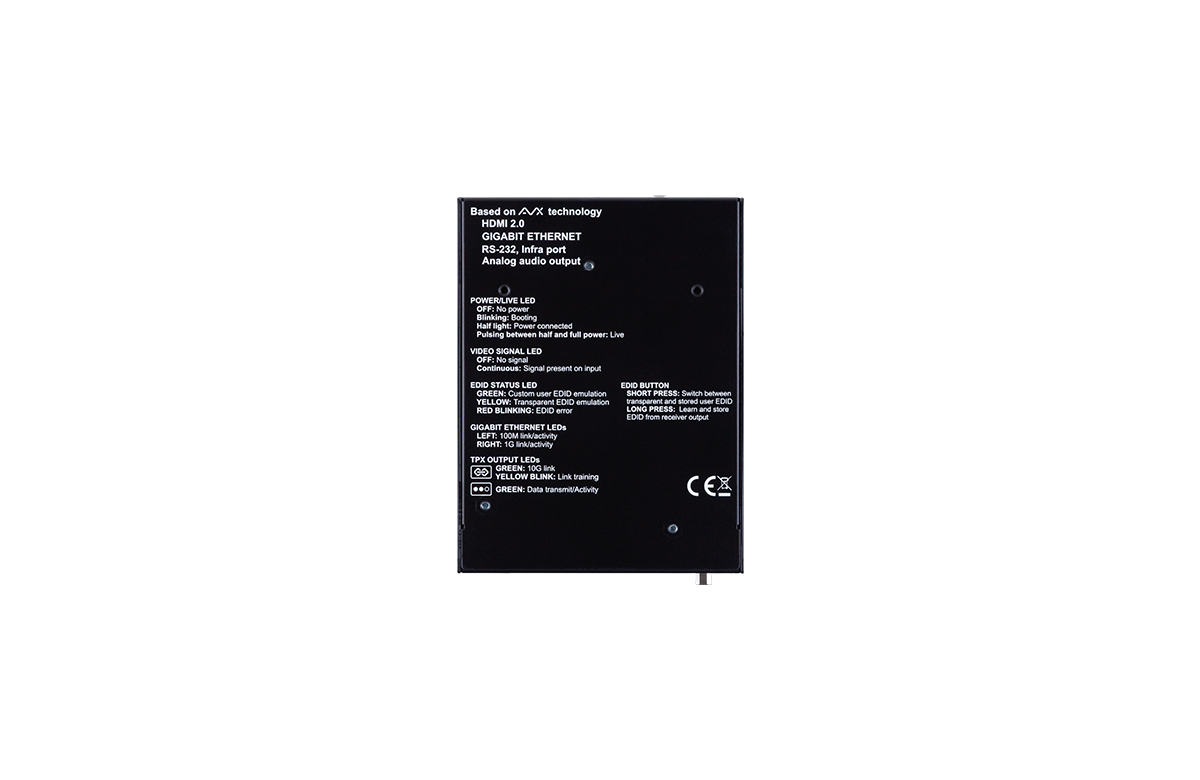

Take Control with EDID Management
HDCP 2.3 and basic EDID management functionality are also among the features offered by these devices, such as their connectivity and easy integration into a wide range of AV operations and with 3rd party devices, such as the Christie Terra projector.
TPX Series
for Seamless AV Connectivity
The TPX Series offers high-performance signal extension and conversion, ideal for professional AV environments. With support for HDMI, DisplayPort, and other formats, TPX ensures reliable, long-distance transmission for demanding installations. Explore more on our product page.
Specification Table
| Video inputs | |
| HDMI input | |
| Connector type | 19-pole HDMI Type A receptacle |
| A/V standard | DVI 1.0, HDMI 1.4, HDMI 2.0 |
| HDCP compliance | HDCP 2.3 |
| Color space | RGB, YCbCr |
| Video delay | 0 frame |
| Supported resolutions at 8 bits/color * | |
| up to 4096x2048@60Hz (4:4:4) | |
| up to 3840x2160@60Hz (4:4:4) | |
| 4096x2048@60Hz (4:2:2) up to 10 bits/color | |
| Reclocking | Pixel Accurate Reclocking |
| 3D support | yes |
| Audio formats | All HDMI 2.0 formats including multi-channel PCM, Dolby True-HD and DTS-HD master audio |
| EDID management | |
| EDID emulation | yes, dynamic EDID from connected receiver and 1 locally stored EDID |
| EDID memory | 1 stored EDID |
| Supported standard | EDID v1.3 |
| Video Outputs | |
| TPX output | |
| Connector type | RJ45 connector |
| Power over Ethernet (PoE) | PoC (can send and receive power) |
| Compliance | SDVoE |
| HDCP compliance | HDCP2.3 |
| Transferred signals | Video, Audio, RS-232, Infrared, Ethernet |
| Color space | RGB, YCbCr |
| Video delay | 0 frame |
| Supported resolutions at 8 bits/color * | up to 4096x2048@60Hz (4:4:4) |
| up to 3840x2160@60Hz (4:4:4) | |
| 4096x2048@60Hz (4:2:2) up to 10 bits/color | |
| Audio formats | All HDMI 2.0 formats including multi-channel PCM, Dolby True-HD and DTS-HD master audio |
| Analog audio output | |
| Connector type | 5-pole Phoenix connector |
| Audio formats | 2-ch PCM |
| Sampling frequency | 48 kHz |
| Volume | -78 dB - 0 dB |
| Balance | 0 - 100 (50 = center) |
| Nominal Differential Output Level @ 0 dB Gain | +4 dBu |
| Nominal Differential Output Level @ 3 dB Gain | +7 dBu |
| Control Ports | |
| RS-232 serial port | |
| Connector type | 3-pole Phoenix connector |
| Baud rates | Between 4800 and 115200 Baud |
| Data bits | 8 or 9 |
| Parity | None / Odd / Even |
| Stop bits | 1 / 1.5 / 2 |
| Ethernet port | |
| Connector type | RJ45 female connector |
| Ethernet data rate | 10/100/1000Base-T, full duplex with autodetect |
| Infrared port | |
| Output connector type | 3.5 mm TS (approx. 1/8" jack) |
| Input carrier frequency | 38 kHz |
| Output signal | modulated (38kHz) |
| Power | |
| Power supply option | Power adaptor / PoC |
| Supported power source | |
| Power consumption (max) | 8.1W |
| Power consumption (min) | |
| Heat dissipation | 27.6 BTU/h (max) |
| AC power connector | |
| AC fuse | |
| Power over Ethernet (PoE) | via TPX output (IEEE802.3af) (can send and receive power) |
| Power adaptor | |
| Supported power source | 100-240 V AC; 50/60 Hz |
| Supplied power | 12V DC, 2A |
| AC power plug | Interchangable (EU, UK, JP/US, AUS/NZ) |
| DC power plug | Locking DC connector (2.1/5.5 mm pin) |
Features
Supports HDMI 4K signal formats
4K UHD @60Hz RGB 4:4:4, up to 18 Gbps
Bi-directional PoC remote powering
Extends HDMI 2.0
audio, Ethernet, RS-232 up to 100m over one CATx cable
HDR and Low Latency Dolby Vision support
