UCX-3x3-TPX-RX20
SKU: 91310100
ShippingDetails
Exploit the Possibilities of USB connectivity

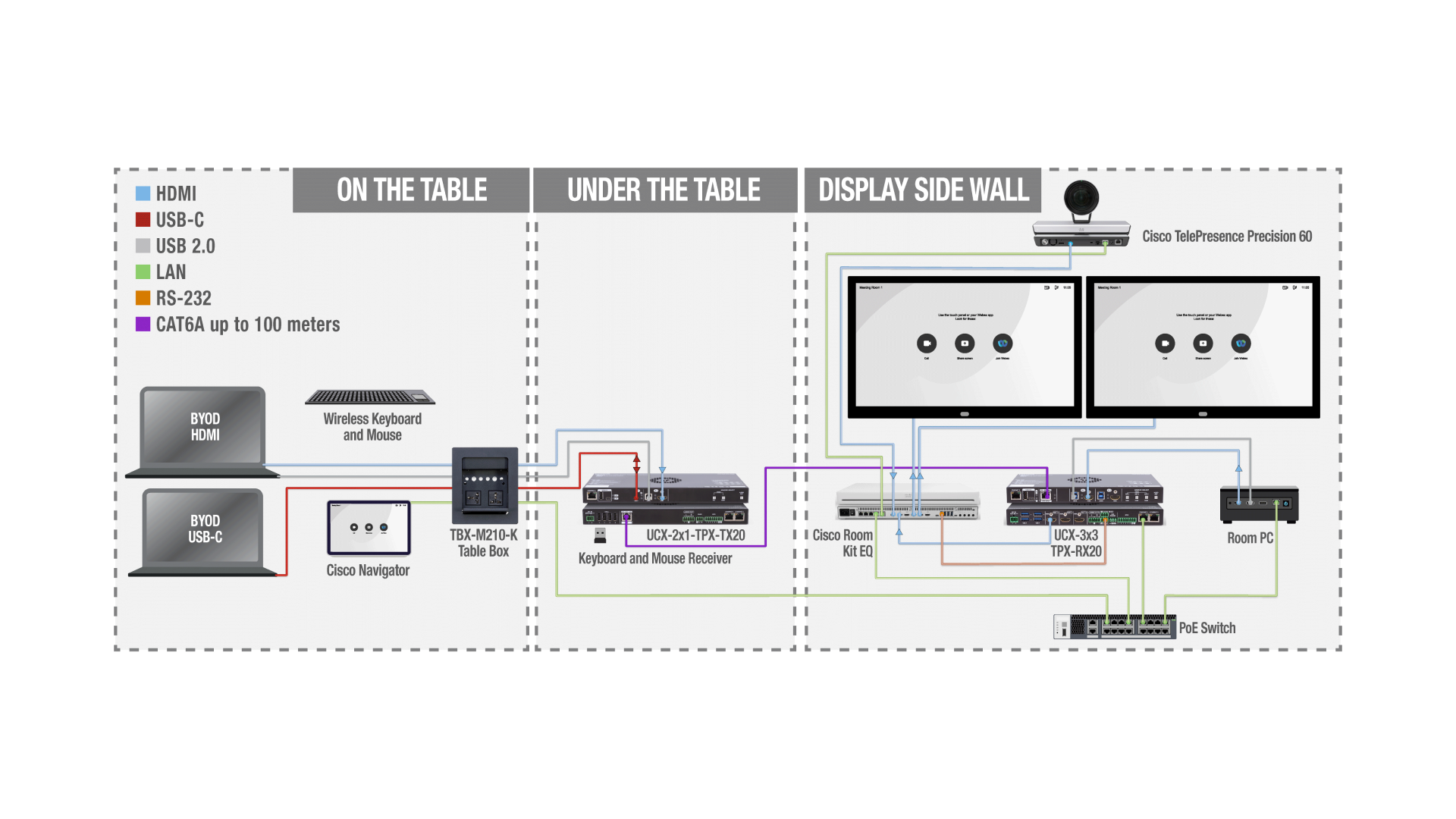

Lightware’s UCX Matrix Switcher receiver is part of a transmitter-receiver configuration that provides the same functionality as the UCX product range in terms of signal management and connectivity. Such functionality includes video resolution up to 4K@60Hz 4:4:4 through the USB-C and HDMI inputs, easy USB host switching, and advanced security features. At the same time, the bundle overcomes the limitations imposed by the USB and HDMI cables and allows for the extension of video, audio, and control signals in one direction and USB 2.0 and control data in the other, up to a transmission distance of 100m.
Also available with NIST FIPS 140-2 certified cryptography (SKU: 91360036).
The Ultimate Collaboration for Modern Workspaces
Here's the New Taurus UCX
Experience seamless USB-C connectivity with Taurus UCX, offering effortless 4K video, switching, and USB peripheral support for meeting rooms and huddle spaces.
Specification Table
| General | Compliance | CE; UKCA | |
| Electrical safety | EN 62368-1:2014 | ||
| EMC (emission) | EN 55032:2015 | ||
| EMC (immunity) | EN 55035:2017 | ||
| RoHS | EN 63000:2018 | ||
| Warranty | 3 years | ||
| Operating temperature | 0° to +50°C (+32° to +122°F) | ||
| Operating humidity | 10% to 90%, non-condensing | ||
| Cooling | passive | ||
| Power | Power supply option | External 80W Power Supply | |
| Supported power source | 100-240 V AC, 50/60 Hz | ||
| Power consumption | 9W | ||
| Power adaptor | Supplied power | 12V DC, 2A | |
| AC power plug | Interchangable (EU, UK, JP/US, AUS/NZ) | ||
| DC power plug | Locking DC connector (2.1/5.5 mm pin) | ||
| Enclosure | Rack mountable | yes, with mounting accessories | |
| Enclosure material | 1 mm steel | ||
| Dimensions (mm) | 246 W x 140.3 D x 26 H | ||
| Weight | 936 g | ||
| Video ports | HDMI output | Connector type | 3x HDMI type A with screw locking option |
| AV standard | DVI 1.0, HDMI 20 | ||
| HDCP compliance | HDCP 2.3 | ||
| Color space | RGB, YCbCr | ||
| Supported resolutions at 8 bits/color | up to 4096x2160@60Hz (4:4:4) | ||
| Audio formats | 8-channel PCM, Dolby TrueHD, DTS-HD Master Audio 7.1 | ||
| TPX input | Connector type | RJ45 connector | |
| Power over Ethernet | POE PD (IEEE802.3af) | ||
| Data rate | 10GBase-T | ||
| Compliance | AVXT | ||
| HDCP compliance | HDCP 2.3 | ||
| Transferred signals | Video, Audio, USB 2.0, RS-232, OCS, Ethernet | ||
| Color space | RGB, YCbCr | ||
| Supported resolutions at 8 bits/color | up to 4096x2160@60Hz (4:4:4) | ||
| Audio formats | 8-channel PCM, Dolby TrueHD, DTS-HD Master Audio 7.1 | ||
| HDMI input | Connector type | 2x HDMI type A with screw locking option | |
| Audio Ports | Analog audio output | Connector type | 5-pole Phoenix connector |
| Audio formats | 2-channel PCM | ||
| Sampling frequency | 48 kHz | ||
| Signal transmission | Balanced signals | ||
| Control ports | Ethernet port | Connector type | RJ45 female connector |
| Number of connectors per unit | 3 | ||
| Ethernet data rate | 1GBase-T, full duplex with autodetect | ||
| RS-232 serial port | Connector type | 3Pol Phoenix | |
| Default settings | 9600 BAUD, 8N1 | ||
| USB | Connectors | 1x mini USB Type B (reserved for service) | |
| 1x USB Type A (reserved for future developments) | |||
| 2x USB Type B (USB3.1) for host devices | |||
| 4x USB Type A (USB3.1) for peripherals | |||
| Room occupancy sensor | Connector type | 3Pol Phoenix | |
| GPIO | Connector type | 8Pol Phoenix | |

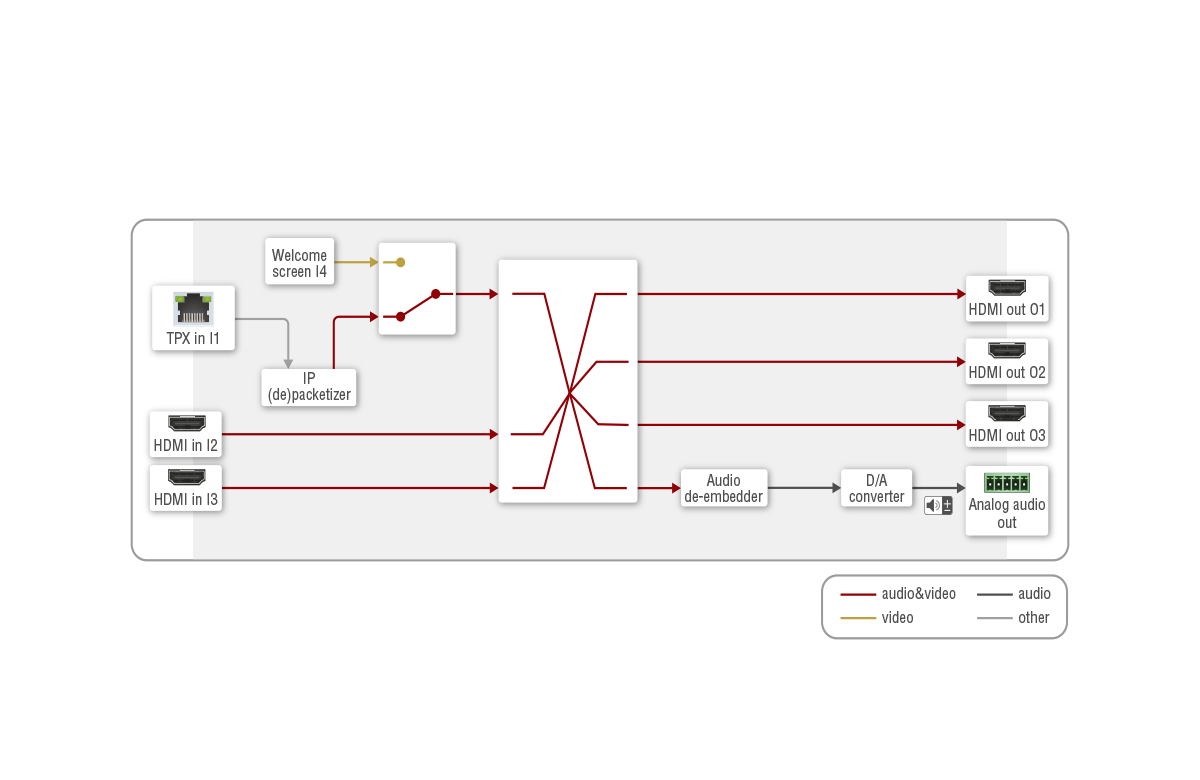

Features
Independent USB Host switching layer
for multiple USB hosts, up to 8 devices (4x at the TX side, 4x at the RX side)
Local HDMI 2.0 and USB3.1 Gen1 connectivity
for Room PC and other room equipment
Single CAT connectivity
between TX and RX devices, Video, USB2.0, Ethernet, OCS, GPIO and Serial
Multiple USB connectivity
for any type of USB device (Camera, speakerphone, touch monitor, USB-HID devices etc.)
Three independent HDMI 2.0 outputs
Room device control via Ethernet
TCP/IP or Serial or GPIO or OCS
CEC at the HDMI outputs
Variant available with NIST FIPS 140-2
certified Lightware Crypto Core (UCX-3x3-TPX-RX20-LCC, SKU: 91360036)
Supports HDMI 4K signal formats
4K UHD @60Hz RGB 4:4:4, up to 18 Gbps
