UCX-4x3-TPX-TX20
Shipping
SKU
91310091
USB Type-C and HDMI Matrix Switcher Transmitter
Universal switcher transmitter is part of a transmitter-receiver configuration that provides the same functionality as the UCX product range in terms of signal management and connectivity.
Highlighted features
- Single CAT connectivity between TX and RX devices, up to 100m, with Power delivery from TX to RX, Video, USB2.0, Ethernet, OCS and Serial
- USB-C input connectivity on the TX device for 4K Video, Audio, Data, and Power (Video, Audio, Data and Power over a single USB-C connection)
- USB-C charging up to 100W (120W total) on the TX
- Multiple USB 2.0 connectivity for any type of USB device (Camera, speakerphone, touch monitor, USB-HID devices etc.) Both on the TX and the RX

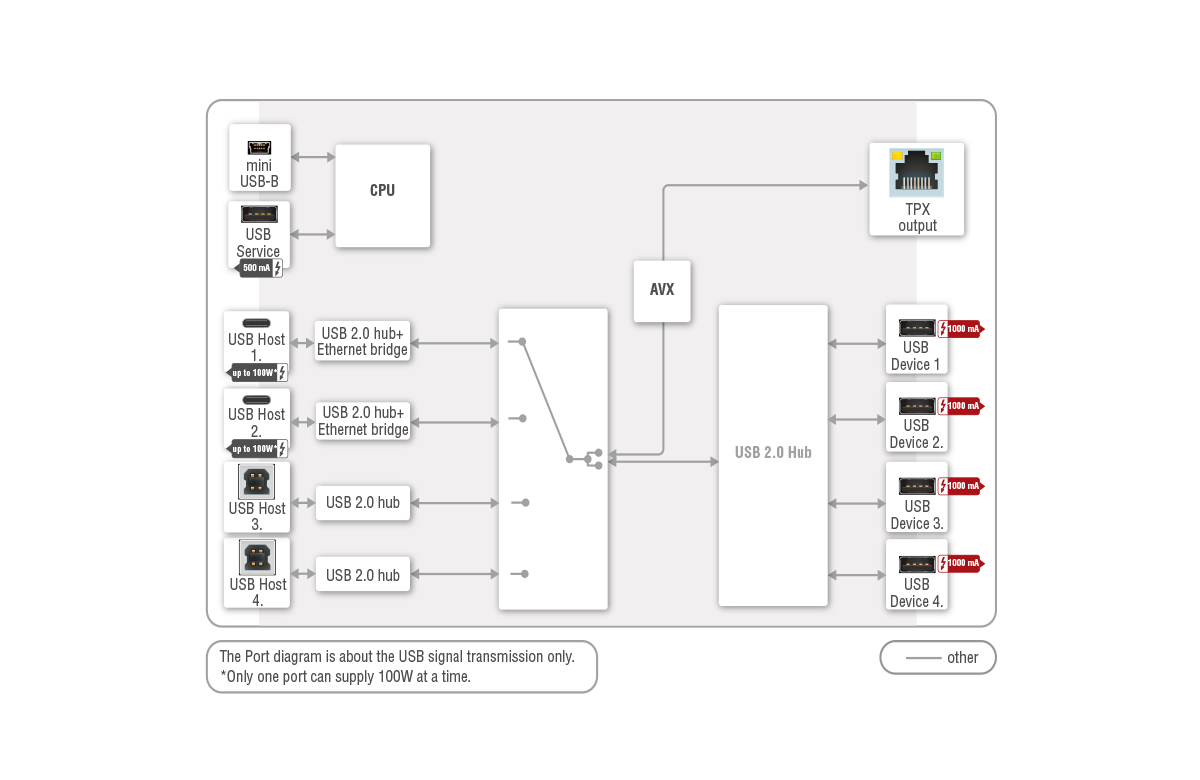

- Independent USB Host switching layer for multiple USB hosts, up to 8 devices (4x at the TX side, 4x at the RX side)
- Room device control via Ethernet (TCP/IP) or Serial (2x at TX device, 1x at RX device)
- Variant available with NIST FIPS 140-2 certified Lightware Crypto Core (UCX-4x3-TPX-TX20-LCC, SKU: 91360034)

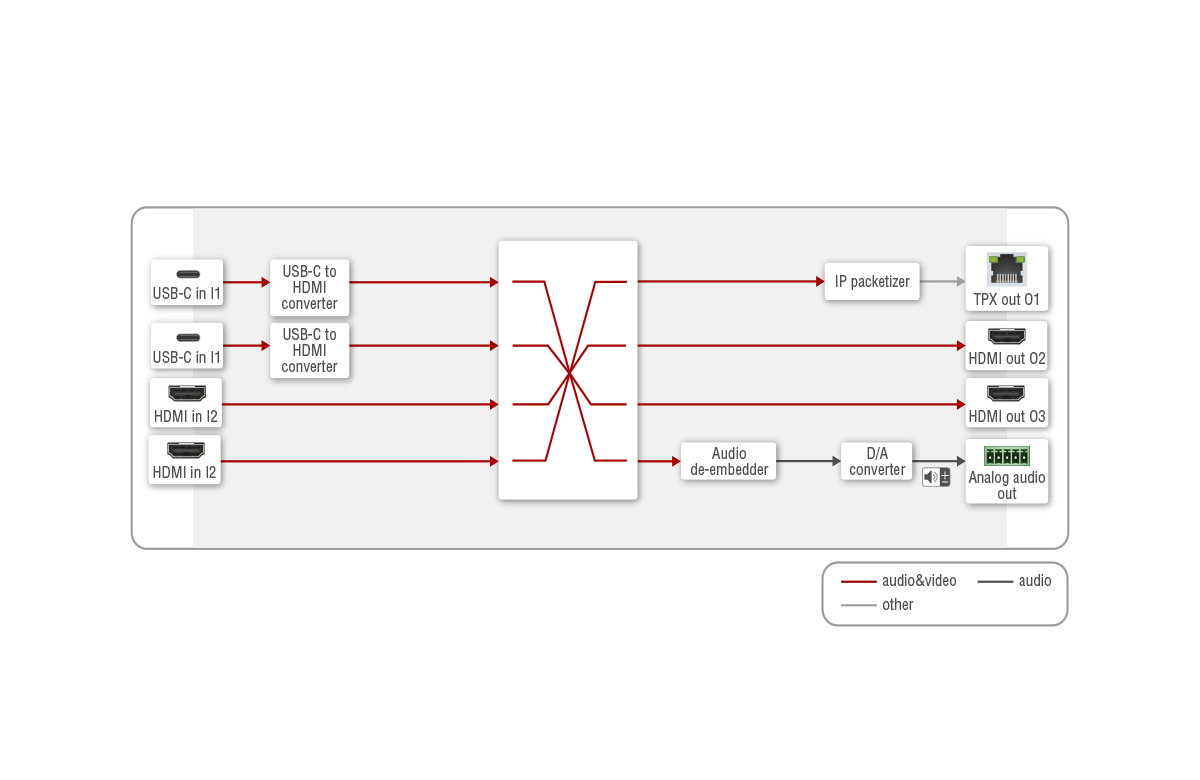

Lightware’s universal switcher transmitter is part of a transmitter-receiver configuration that provides the same functionality as the UCX product range in terms of signal management and connectivity. (Such functionality includes video resolution up 4k@60Hz 4:4:4 through the USB-C and HDMI inputs, easy USB host switching, and advanced security features). At the same time, the bundle overcomes the limitations imposed by the USB and HDMI cables and allows for the extension of video, audio, and control signals in one direction and the USB 2.0 data in the other up to a transmission distance of 100m.
Moreover, the transmitter can provide remote power to the connected receiver up to the power limit of 25.4W of the PoE+ specification.
Also available with NIST FIPS 140-2 certified cryptography (SKU: 91360034)
This product is also available in bundle:
- Single CAT connectivity between TX and RX devices, up to 100m, with Power delivery from TX to RX, Video, USB2.0, Ethernet, OCS and Serial
- USB-C input connectivity on the TX device for 4K Video, Audio, Data, and Power (Video, Audio, Data and Power over a single USB-C connection)
- USB-C charging up to 100W (120W total) on the TX
- Multiple USB 2.0 connectivity for any type of USB device (Camera, speakerphone, touch monitor, USB-HID devices etc.) Both on the TX and the RX
- Independent USB Host switching layer for multiple USB hosts, up to 8 devices (4x at the TX side, 4x at the RX side)
- Room device control via Ethernet (TCP/IP) or Serial (2x at TX device, 1x at RX device)
- CEC at the HDMI outputs
- Supporting Lightware Advanced Room Automation (LARA)
- Supports uncompressed HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps, 600 MHz pixel clock)
- Welcome Screen for custom corporate logo and on-screen display warning messages
- Occupancy sensor (OCS) connection at the RX device (with 24V power supply), GPIO control ports at TX device
- SSH, SSL, and HTTPS for IT security
- Multiple Ethernet network configurations fitting various corporate network topologies and IT security standards (e.g. 802.1x compliance)
- Variant available with NIST FIPS 140-2 certified Lightware Crypto Core (UCX-4x3-TPX-TX20-LCC, SKU: 91360034)
- Audio de-embedding
| General | Compliance | CE; UKCA | |
| Electrical safety | IEC 61000-3-3:2013+AMD1:2017 | ||
| EMC (emission) | IEC/EN 55032:2015 | ||
| EMC (immunity) | IEC/EN 55035:2017 | ||
| RoHS | EN 63000:2018 | ||
| Warranty | 3 years | ||
| Operating temperature | 0° to +50°C (+32° to +122°F) | ||
| Operating humidity | 10% to 90%, non-condensing | ||
| Cooling | Cooling fan | ||
| Power | Power supply option | External 220W Power Supply (if remote powering UCX-TPX-RX) | |
| Supported power source | 100-240 V AC; 50/60 Hz | ||
| AC power plug | Interchangeable (EU, UK, JP/US, AUS/NZ) | ||
| Battery cell type | BR1632A | ||
| Enclosure | Enclosure material | 1 mm steel | |
| Dimensions in mm | 271 W x 140,3 D x 26 H | ||
| Dimensions in inch | 10.7 W x 5.57 D x 1.01 H | ||
| Weight (UCX-4x2-HC30) | 900 g (TO BE CONFIRMED) | ||
| Video Inputs | USB-C input | Connector type | 24-pole USB type C receptacle |
| A/V standard | DP 1.2a | ||
| HDCP compliance | HDCP 1.4, HDCP 2.2 | ||
| Color space | RGB, YCbCr | ||
| Video delay | O frame | ||
| Max. video resolution | 4096x2160@60Hz RGB 4:4:4 (up to 600MHz pixel clock);1920x1080@120 Hz, 36 bit | ||
| Audio formats | all formats in line with HDMI 2.0 standard | ||
| 3D support | yes | ||
| HDMI input | Connector type | 19-pole HDMI Type A receptacle (with screw locking option) | |
| A/V standard | DVI 1.0, HDMI 1.4, HDMI 2.0 | ||
| Maximum data rate | 18Gbps | ||
| Maximum pixel clock | 597MHz | ||
| HDCP compliance | HDCP 1.4, HDCP 2.2 | ||
| Color space | RGB, YCbCr | ||
| Video delay | O frame | ||
| Max. video resolution | 4096x2160@60Hz RGB 4:4:4 (up to 600MHz pixel clock);1920x1080@120 Hz, 36 bit | ||
| Max. input HDMI cable length (with premium certified cable) at 3840x2160@60Hz 4:4:4 | 5m | ||
| Re-clocking | Pixel Accurate Re-clocking | ||
| 3D support | yes | ||
| Audio mode | Simultaneous pass-through and de-embedding to the Audio layer | ||
| Supported audio formats for pass-through | All HDMI2.0 audio formats | ||
| Supported audio formats for de-embedding | Uncompressed | ||
| Compressed | Dolby Digital, DTS; Compressed HBR; Dolby TrueHD, DTS-HD | ||
| Video Outputs | HDMI output | Connector type | 19-pole HDMI Type A receptacle |
| A/V standard | DVI 1.0, HDMI 1.4, HDMI 2.0 | ||
| HDCP compliance | HDCP 1.4, HDCP 2.2 | ||
| Color space | RGB, YCbCr | ||
| Supported resolutions | Up to UHD/4k@60Hz 4:4:4 | ||
| Audio formats | 8 channel PCM, Dolby TrueHD; DTS-HD Master Audio 7.1 | ||
| TPX output | Connector type | RJ45 connector | |
| Power over Ethernet | POE PD (IEEE802.3af) | ||
| Data rate | 10GBase-T | ||
| Compliance | AVXT | ||
| HDCP compliance | HDCP 2.3 | ||
| Transferred signals | Video, Audio, USB 2.0, RS-232, OCS, Ethernet | ||
| Color space | RGB, YCbCr | ||
| Supported resolutions at 8 bits/color | up to 4096x2160@60Hz (4:4:4) | ||
| Audio formats | 8-channel PCM, Dolby TrueHD, DTS-HD Master Audio 7.1 | ||
| Audio Ports | Analog audio output | Connector type | 5-pole Phoenix connector |
| Audio formats | 2-ch PCM | ||
| Sampling frequency | 48 kHz | ||
| Volume | -95.62 dB-0 dB | ||
| Balance | -100 +100 (0 = center) | ||
| GPIO port | Connector type | 8-pole Phoenix | |
| Function (pin 1-6) | Configurable (input/output) | ||
| Function (pin 7) | 5V output | ||
| Function (pin 8) | Ground | ||
| USB Ports | Host port (UFP) | Connector type | C-type receptacle |
| USB compliance | USB 2.0 | ||
| Connector type | B-type receptacle | ||
| USB compliance | USB 2.0 | ||
| Device port (DFP) | Connector type | A-type receptacle | |
| USB compliance | USB 2.0 | ||
| Control ports | Ethernet port | Connector type | RJ45 female connector |
| Ethernet data rate | 10/100/1000 Base-T, full duplex with auto detect | ||
| Power over Ethernet (PoE) | Not supported | ||
| USB port | Connector type | A-type receptacle | |
| USB compliance | USB 2.0 | ||
| Connector type | mini B-type | ||
| USB compliance | USB 2.0 | ||
| RS-232 port | Connector type | 3-pole Phoenix connector | |
| Baud rates | between 9600 and 115200 baud | ||
| Data bits | 8 | ||
| Parity | None Odd/Even | ||
| Stop bits | 1/2 | ||
| Output voltage: Low level | 3-15V | ||
| Output voltage: High level | -15V - 3V | ||
