MX2-24x24-DH-12DPi-A-R
SKU: 91310064
ShippingFull 4K Matrix Switcher with Mixed DisplayPort and HDMI Input Ports
Details
Streamline 4K UHD Switching
MX2-24x24-DH-12DPi-A-R is a member of the MX2 DH standalone matrix switcher series, supporting uncompromised 4K UHD resolution at 60Hz with RGB 4:4:4 colorspace and with down-conversion capabilities to 4:2:2. The DisplayPort inputs on the MX2 DH series routers allow connecting DisplayPort 1.2 video sources directly, without the need of adapters or dongles.
Maximize Port Density Your Installations
These devices are fully HDMI 2.0 compatible with DisplayPort input signals transformed to HDMI for signal management. Input signals that do not fit in the HDMI 2.0 bandwidth of 18GHz can be converted to 4:2:2 while maintaining bit depth, thus allowing for HDR transmission. The switchers have outstanding port density making them particularly suitable for fix-install applications and for future-proof operation centers, for installations where a huge number of HDMI 2.0 compliant input and output ports are required.
Streamline Video and Audio Transmission
All MX2 DH devices support 3D, Dolby TrueHD and DTS-HD Master Audio and also HDR and Dolby Vision. Proprietary Lightware technologies like Pixel Accurate Reclocking and Advanced EDID Management are included and can be controlled via the built-in website.

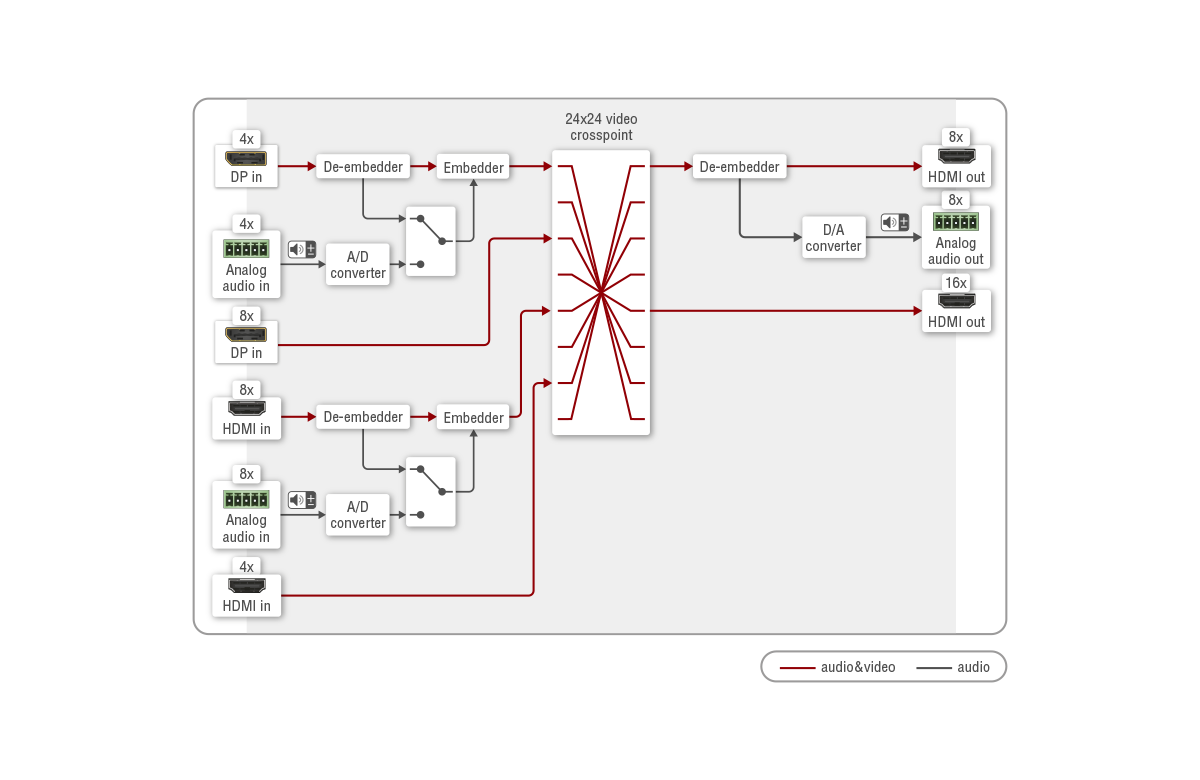

MX2-24x24-DH-12DPi-A-R allows embedding audio to, and de-embedding audio from the signal stream at dedicated analog audio I/O ports.
Ensure Reliability with Crosspoint Switching
Crosspoint switching functions are available via keys on the front panel.
MX2-24x24-DH-12DPi-A-R is an R-type model, with a dual redundant power source, with two, independent, rugged power connectors and reinforced RS-232 and Ethernet ports.
The matrix is recognized by the connected DisplayPort source as a DP-to-HDMI converter, and video input signals of 3840x2160 4:4:4 RGB 10 bit are converted to 3840x2160 4:2:2 YCbCr 10 bit or 3840x2160 4:4:4 RGB 8 bit on the DisplayPort input.
Limitations and Compatibility Notes
Furthermore, it’s important to note that DP Multi-Stream (MST), Dual-mode DisplayPort (DP++), Adaptive-Sync and FreeSync™ are not supported, and neither is HDR on DisplayPort outputs.
MX2 HDMI 2.0 Matrix Switchers
For Professional Environments
The MX2 HDMI 2.0 Matrix Switcher family provides high-quality 4K UHD switching with HDMI 2.0, HDCP 2.2, and advanced audio support, ideal for corporate and large-scale event installations.
Specification Table
|
Name |
HDMI Inputs |
DP Inputs |
Audio Inputs |
HDMI Outputs |
DP Outputs |
Audio Outputs |
|
4x |
4x |
- |
8x |
- |
2x |
|
|
- |
8x |
4xD |
8x |
- |
4xH |
|
|
4x |
4x |
4xH + 4xD |
4x |
4x |
4xH + 4xD |
|
|
8x |
8x |
8xH |
16x |
- |
4xH + 4xA |
|
|
12x |
12x |
- |
24x |
- |
- |
|
|
12x |
12x |
8xH + 4xD |
24x |
- |
8xH |
|
|
16x |
16x |
8xH+4xD |
16x |
- |
8xH+8xA |
|
|
24x |
24x |
8xH+8xD |
24x |
24x |
8xH+24xD |
|
|
- |
48x |
16xD |
48x |
- |
16xH |
|
|
H: next to HDMI | A: independent audio out | D: next to DP |
||||||
|
Specifications |
|
|
Speed |
18 Gbps per port |
|
Resolution |
Up to 4096x2160@60Hz at RGB or YCbCr 4:4:4 (up to 600MHz pixel clock) |
|
Height |
4RU |
|
Mounting |
Rack mountable, removable rack ears |
|
Connectors |
|
|
Video inputs: |
12 x HDMI 2.0 and 12xDisplayPort 1.2 |
|
Video outputs: |
24 x HDMI 2.0 |
|
Power |
2x Neutrik Powercon True1, 110/220V |
|
Serial control |
D-sub 9-pole |
|
Ethernet Neutrik |
Ethercon |
|
USB |
Mini USB B |
Features
Audio embedding and de-embedding
HDCP 2.2 and HDCP 1.4 compliant
with cross conversion capabilities
Supports HDMI 4K signal formats
4K UHD @60Hz RGB 4:4:4, up to 18 Gbps
HDR and Low Latency Dolby Vision support
Redundant power supplies available
High bitrate Audio Support
including Dolby Atmos, TrueHD, DTS-HD
Uncompressed video
up to 18 Gbps datarate (600 MHz pixel clock)
