MX2-8x8-DH-4DPi-A
Full 4K Matrix Switcher with Mixed DisplayPort and HDMI Input Ports
MX2-8x8-DH-4DPi-A is a member of the MX2 DH standalone matrix switcher series, supporting uncompromised 4K UHD resolution at 60Hz with RGB 4:4:4 colorspace and with down-conversion capabilities to 4:2:2. The DisplayPort inputs on the MX2 DH series routers allow connecting DisplayPort 1.2 video sources directly, without the need of adapters or dongles.
Highlighted features
- HDCP 2.2 and HDCP 1.4 compliant with cross conversion capabilities
- Supports HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps)
- Supports DisplayPort Link Training
- High bitrate Audio Support including Dolby Atmos, TrueHD, DTS-HD
MX2-8x8-DH-8DPi-A is a member of the Lightware MX2 standalone matrix switcher series, supporting uncompromised 4K UHD resolution at 60Hz with RGB 4:4:4 colorspace and with down-conversion capabilities to 4:2:2. The DisplayPort inputs on the MX2 Dpi series routers allow connecting DisplayPort 1.2 video sources directly, without the need of adapters or dongles.
This device is fully HDMI 2.0 compatible with DisplayPort input signals transformed to HDMI for signal management. Input signals that do not fit in the HDMI 2.0 bandwidth of 18GHz can be converted to 4:2:2 while maintaining bit depth thus allowing for HDR transmission. The switch is particularly suitable for fix-install applications and future-proof operation centers, for installations where HDMI 2.0 compliant input and output ports are required.
MX2-8x8-DH-4DPi-A supports 3D, Dolby TrueHD and DTS-HD Master Audio and also HDR10, HDR10+ and Dolby Vision. Proprietary Lightware technologies like Pixel Accurate Reclocking and Advanced EDID Management are included and can be controlled via the built-in website.
MX2-8x8-DH-4DPi-A allows audio de-embedding to its audio output ports.
Crosspoint switching functions are available via keys on the front panel.
The matrix is recognized by the connected DisplayPort source as a DP-to-HDMI converter, and video input signals of 3840x2160 4:4:4 RGB 10 bit are converted to 3840x2160 4:2:2 YCbCr 10 bit or 3840x2160 4:4:4 RGB 8 bit on the DisplayPort input.
Furthermore, it’s important to note that DP Multi-Stream (MST), Dual-mode DisplayPort (DP++), Adaptive-Sync and FreeSync™ are not supported, and neither is HDR on DisplayPort outputs.
- Audio embedding and de-embedding
- Front to back cooling airflow
- HDCP 2.2 and HDCP 1.4 compliant with cross conversion capabilities
- HDCP 2.2 and HDCP 1.4 compliant
- Advanced EDID Management
- Front panel LCD menu and buttons for crosspoint control
- Device control via Ethernet (TCP/IP), RS-232 and USB
- Supports HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps)
- Supports DisplayPort Link Training
- HDR and Low Latency Dolby Vision support
- Pixel Accurate Reclocking
- High bitrate Audio Support including Dolby Atmos, TrueHD, DTS-HD
|
Name |
HDMI Inputs |
DP Inputs |
Audio Inputs |
HDMI Outputs |
DP Outputs |
Audio Outputs |
|
4x |
4x |
- |
8x |
- |
2x |
|
|
- |
8x |
4xD |
8x |
- |
4xH |
|
|
4x |
4x |
4xH + 4xD |
4x |
4x |
4xH + 4xD |
|
|
8x |
8x |
8xH |
16x |
- |
4xH + 4xA |
|
|
12x |
12x |
- |
24x |
- |
- |
|
|
12x |
12x |
8xH + 4xD |
24x |
- |
8xH |
|
|
16x |
16x |
8xH+4xD |
16x |
- |
8xH+8xA |
|
|
24x |
24x |
8xH+8xD |
24x |
24x |
8xH+24xD |
|
|
- |
48x |
16xD |
48x |
- |
16xH |
|
|
H: next to HDMI | A: independent audio out | D: next to DP |
||||||
|
Specifications |
|
|
Speed |
18 Gbps per port |
|
Resolution |
Up to 4096x2160@60Hz at RGB or YCbCr 4:4:4 (up to 600MHz pixel clock) |
|
Height |
1RU |
|
Mounting |
Rack mountable, removable rack ears |
|

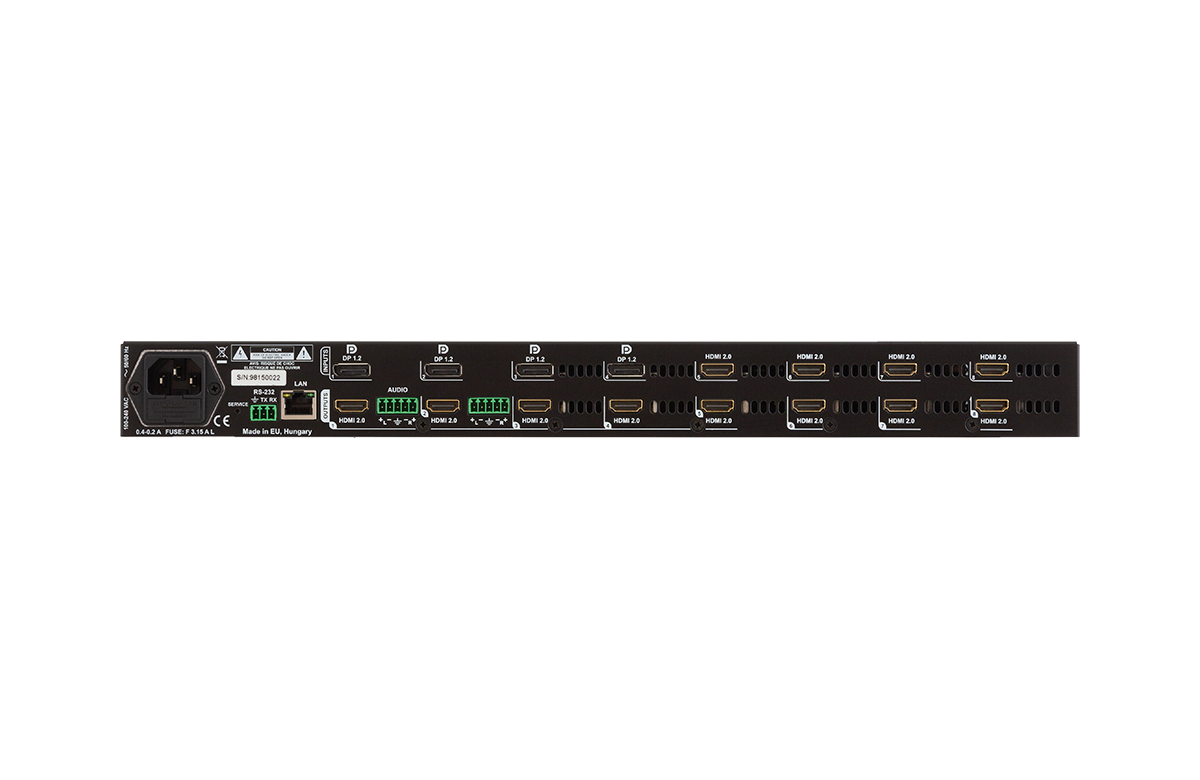

Connectors |
|
|
Video inputs: |
4 x HDMI 2.0 and 4xDisplayPort 1.2 |
|
Video outputs: |
8 x HDMI 2.0 |
|
Power |
IEC standard, 110/220V |
|
Serial control |
Stereo balanced, 3-pole Phoenix |
|
Ethernet Neutrik |
RJ45 |
|
USB |
Mini USB B |
