MX2-48x48-DH-48DPi-A-R
Full 4K Matrix Switcher with 48x48 DisplayPort 1.2 Input and HDMI 2.0 Output Ports
MX2-48x48-DH-48DPi-A-R supports uncompromised 4K UHD resolution at 60Hz with RGB 4:4:4 colorspace and with down-conversion capabilities to 4:2:2. The DisplayPort connectors of the device allow connecting DisplayPort 1.2 video sources directly, with HDMI 2.0 output ports.
Highlighted features
- HDCP 2.2 and HDCP 1.4 compliant with cross conversion capabilities
- Supports HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps)
- HDR and Low Latency Dolby Vision support
- Redundant power supplies available
- High bitrate Audio Support including Dolby Atmos, TrueHD, DTS-HD
MX2-48x48-DH-48DPi-A-R supports uncompromised 4K UHD resolution at 60Hz with RGB 4:4:4 colorspace and with down-conversion capabilities to 4:2:2. The DisplayPort connectors of the device allow connecting DisplayPort 1.2 video sources directly, with HDMI 2.0 output ports.
The DisplayPort input signals are transformed to HDMI for signal management. Input signals that do not fit in the HDMI 2.0 bandwidth of 18GHz can be converted to 4:2:2 while maintaining bit depth, thus allowing for HDR transmission. The switcher has outstanding port density making it particularly suitable for fix-install applications and for future-proof operation centers, for installations where a huge number of DisplayPort 1.2 compliant input. This router supports 3D, Dolby TrueHD and DTS-HD Master Audio and also HDR and Dolby Vision. Proprietary Lightware technologies like Pixel Accurate Reclocking and Advanced EDID Management are included and can be controlled via the built-in website.

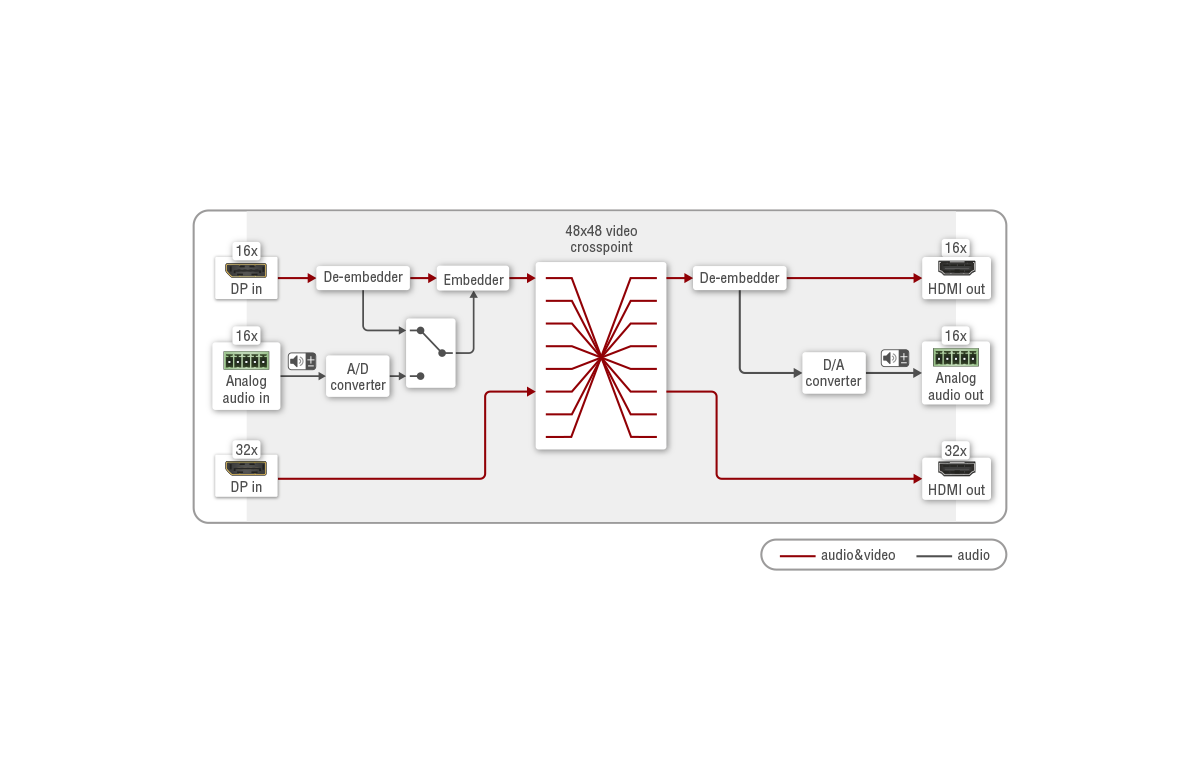

MX2-48x48-DH-48DPi-A-R allows embedding audio to, and de-embedding audio from the signal stream at dedicated analog audio I/O ports.
Crosspoint switching functions are available via keys on the front panel.
MX2-48x48-DH-48DPi-A-R is an R-type model, with a dual redundant power source, with two, independent, rugged power connectors and reinforced RS-232 and Ethernet ports.
The matrix is recognized by the connected DisplayPort source as a DP-to-HDMI converter, and video input signals of 3840x2160 4:4:4 RGB 10 bit are converted to 3840x2160 4:2:2 YCbCr 10 bit or 3840x2160 4:4:4 RGB 8 bit on the DisplayPort input.
Furthermore, it’s important to note that DP Multi-Stream (MST), Dual-mode DisplayPort (DP++), Adaptive-Sync and FreeSync™ are not supported, and neither is HDR on DisplayPort outputs.
- Front to back cooling airflow
- HDCP 2.2 and HDCP 1.4 compliant with cross conversion capabilities
- Device control via Ethernet (TCP/IP) and RS-232
- Advanced EDID Management
- Front panel LCD menu and buttons for crosspoint control
- Fully non-blocking switching architecture
- Built-in website for device configuration
- Supports HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps)
- HDR and Low Latency Dolby Vision support
- Pixel Accurate Reclocking
- Redundant power supplies available
- High bitrate Audio Support including Dolby Atmos, TrueHD, DTS-HD
Name |
HDMI Inputs |
DP Inputs |
Audio Inputs |
HDMI Outputs |
DP Outputs |
Audio Outputs |
4x |
4x |
- |
8x |
- |
2x |
|
- |
8x |
4xD |
8x |
- |
4xH |
|
4x |
4x |
4xH + 4xD |
4x |
4x |
4xH + 4xD |
|
8x |
8x |
8xH |
16x |
- |
4xH + 4xA |
|
12x |
12x |
- |
24x |
- |
- |
|
12x |
12x |
8xH + 4xD |
24x |
- |
8xH |
|
16x |
16x |
8xH+4xD |
16x |
- |
8xH+8xA |
|
24x |
24x |
8xH+8xD |
24x |
24x |
8xH+24xD |
|
- |
48x |
16xD |
48x |
- |
16xH |
|
H: next to HDMI | A: independent audio out | D: next to DP |
Specifications |
|
Speed |
18 Gbps per port |
Resolution |
Up to 4096x2160@60Hz at RGB or YCbCr 4:4:4 (up to 600MHz pixel clock) |
Height |
8RU |
Mounting |
Rack mountable, removable rack ears |
Connectors |
|
Video inputs: |
48 x DisplayPort 1.2 |
Video outputs: |
48 x HDMI 2.0 |
Audio inputs |
16 |
Audio outputs |
16 |
Power |
2x Neutrik Powercon True1, 110/220V |
Serial control |
D-sub 9-pole |
Ethernet Neutrik |
Ethercon |
USB |
Mini USB B |
