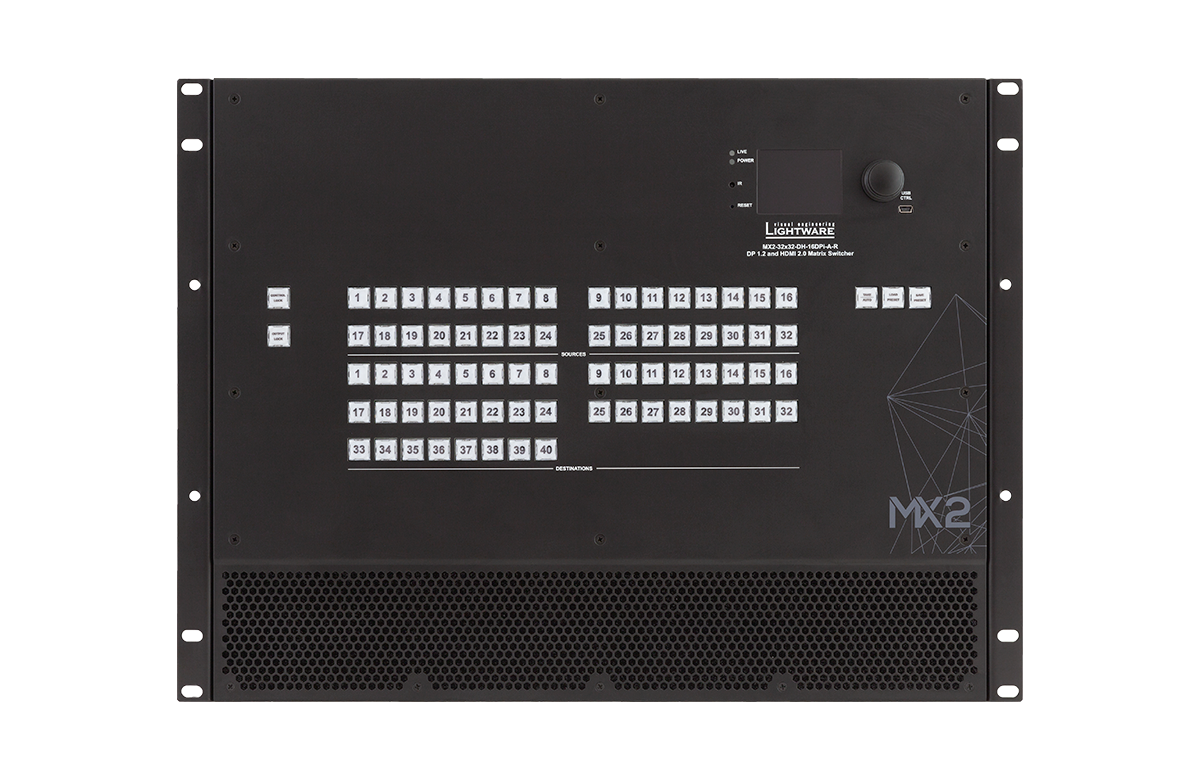

MX2-32x32-DH-16DPi-A-R
Full 4K Matrix Switcher with Mixed DisplayPort and HDMI Input Ports
MX2-32x32-DH-16DPi-A-R is a member of the MX2 DH standalone matrix switcher series, supporting uncompromised 4K UHD resolution at 60Hz with RGB 4:4:4 colorspace and with down-conversion capabilities to 4:2:2. The DisplayPort inputs on the MX2 DH series routers allow connecting DisplayPort 1.2 video sources directly, without the need of adapters or dongles.
Highlighted features
- HDCP 2.2 and HDCP 1.4 compliant with cross conversion capabilities
- Supports HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps)
- HDMI 2.0, HDMI 1.4 and DVI 1.0 compliant
- HDR and Low Latency Dolby Vision support
- High bitrate Audio Support including Dolby Atmos, TrueHD, DTS-HD
- Uncompressed video up to 18 Gbps datarate (600 MHz pixel clock)
- No signal latency, zero frame delay
MX2-32x32-DH-16DPi-A-R is a member of the MX2 DH standalone matrix switcher series, supporting uncompromised 4K UHD resolution at 60Hz with RGB 4:4:4 colorspace and with down-conversion capabilities to 4:2:2. The DisplayPort inputs on the MX2 DH series routers allow connecting DisplayPort 1.2 video sources directly, without the need of adapters or dongles.
These devices are fully HDMI 2.0 compatible with DisplayPort input signals transformed to HDMI for signal management. Input signals that do not fit in the HDMI 2.0 bandwidth of 18GHz can be converted to 4:2:2 while maintaining bit depth, thus allowing for HDR transmission. The switchers have outstanding port density making them particularly suitable for fix-install applications and for future-proof operation centers alike: for installations where a huge number of HDMI 2.0 compliant input and output ports are required.
All MX2 DH devices support 3D, Dolby TrueHD and DTS-HD Master Audio and also HDR and Dolby Vision. Proprietary Lightware technologies like Pixel Accurate Reclocking and Advanced EDID Management are included and can be controlled via the built-in website.
MX2-32x32-DH-16DPi-A-R allows embedding audio to, and de-embedding audio from the signal stream at dedicated analog audio I/O ports.
Crosspoint switching functions are available via keys on the front panel.
MX2-32x32-DH-16DPi-A-R is an R-type model, with a dual redundant power source, with two, independent, rugged power connectors and reinforced RS-232 and Ethernet ports.
The matrix is recognized by the connected DisplayPort source as a DP-to-HDMI converter, and video input signals of 3840x2160 4:4:4 RGB 10 bit are converted to 3840x2160 4:2:2 YCbCr 10 bit or 3840x2160 4:4:4 RGB 8 bit on the DisplayPort input.
Furthermore, it’s important to note that DP Multi-Stream (MST), Dual-mode DisplayPort (DP++), Adaptive-Sync and FreeSync™ are not supported, and neither is HDR on DisplayPort outputs.
- Front to back cooling airflow
- HDCP 2.2 and HDCP 1.4 compliant with cross conversion capabilities
- HDCP enable/disable function on input
- Device control via Ethernet (TCP/IP) and RS-232
- Advanced EDID Management
- Save and reload full crosspoint configurations as preset
- Front panel LCD menu and buttons for crosspoint control
- CEC support (command injection)
- Fully non-blocking switching architecture
- Built-in website for device configuration
- Supports HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps)
- HDMI 2.0, HDMI 1.4 and DVI 1.0 compliant
- HDR and Low Latency Dolby Vision support
- Pixel Accurate Reclocking
- No video compression
- Firmware upgrade through Ethernet
- High bitrate Audio Support including Dolby Atmos, TrueHD, DTS-HD
- Uncompressed video up to 18 Gbps datarate (600 MHz pixel clock)
- No signal latency, zero frame delay
Name |
HDMI Inputs |
DP Inputs |
Audio Inputs |
HDMI Outputs |
DP Outputs |
Audio Outputs |
4x |
4x |
- |
8x |
- |
2x |
|
- |
8x |
4xD |
8x |
- |
4xH |
|
4x |
4x |
4xH + 4xD |
4x |
4x |
4xH + 4xD |
|
8x |
8x |
8xH |
16x |
- |
4xH + 4xA |
|
12x |
12x |
- |
24x |
- |
- |
|
12x |
12x |
8xH + 4xD |
24x |
- |
8xH |
|
16x |
16x |
8xH+4xD |
16x |
- |
8xH+8xA |
|
24x |
24x |
8xH+8xD |
24x |
24x |
8xH+24xD |
|
- |
48x |
16xD |
48x |
- |
16xH |
|
H: next to HDMI | A: independent audio out | D: next to DP |
Specifications |
|
Speed |
18 Gbps per port |
Resolution |
Up to 4096x2160@60Hz at RGB or YCbCr 4:4:4 (up to 600MHz pixel clock) |
Height |
8RU |
Mounting |
Rack mountable, removable rack ears |
Connenctors |
|
Video inputs: |
32 x HDMI 2.0 |
Video outputs: |
32 x HDMI 2.0 |
Audio inputs |
16 x Phoenix at port 1-16 |
Audio outputs |
16 x Phoenix at port 1-8 and 33-40 |
Power |
2x Neutrik Powercon True1, 110/220V |
Serial control |
D-sub 9-pole |
Ethernet Neutrik |
Ethercon |
USB |
Mini USB B |
