MX2-24x24-DH-24DPio-A-R
SKU: 91310073
ShippingFull 4K DisplayPort 1.2 Matrix Switcher
Details
High-Performance 4K UHD Video Switching
MX2-24x24-DH-24DPio-A-R is a member of the Lightware MX2 standalone matrix switcher series, supporting uncompromised 4K UHD resolution at 60Hz with RGB 4:4:4 colorspace and with down-conversion capabilities to 4:2:2. The DisplayPort inputs on the MX2 Dpi series routers allow connecting DisplayPort 1.2 video sources directly, without the need of adapters or dongles.
Seamless HDMI 2.0 Compatibility and Advanced Signal Management
This device is fully HDMI 2.0 compatible with DisplayPort input signals transformed to HDMI for signal management. Input signals that do not fit in the HDMI 2.0 bandwidth of 18GHz can be converted to 4:2:2 while maintaining bit depth, thus allowing for HDR transmission. This switcher is particularly suitable for fix-install applications and future-proof operation centers, for installations where DisplayPort 1.2 input and output ports are required.
MX2-24x24-DH-24DPio-A-R supports 3D, Dolby TrueHD and DTS-HD Master Audio and also HDR10, HDR10+ and Dolby Vision. Proprietary Lightware technologies like Pixel Accurate Reclocking and Advanced EDID Management are included, and the device can be controlled via the built-in website.
Audio Embedding, De-embedding, and Flexible Control

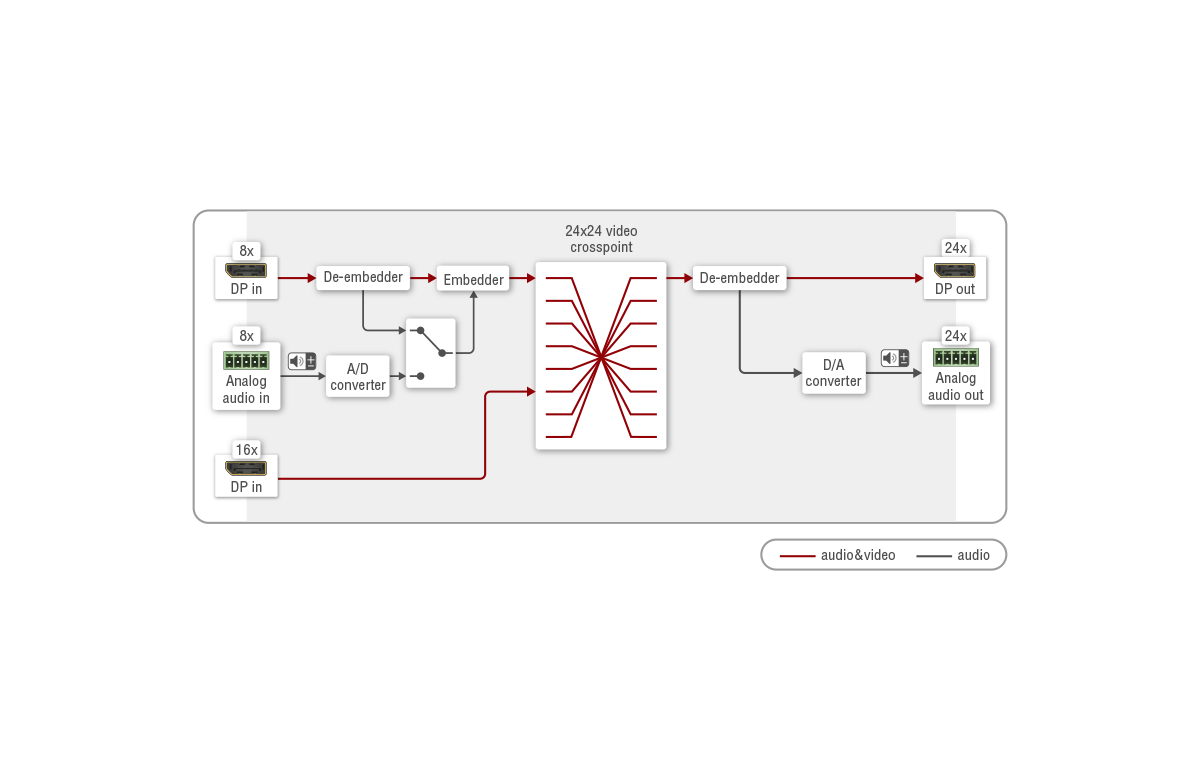

MX2-24x24-DH-24DPio-A-R allow embedding audio to, and de-embedding audio from the signal stream at dedicated analog audio I/O ports, with 5-pole Phoenix type connectors.
Crosspoint switching functions are available via direct keys on the front panel.
Rugged Design for Reliable Live Environments
MX2-24x24-DH-24DPio-A-R is an R-type model, with a dual redundant power source, with two, independent, rugged power connectors and reinforced RS-232 and Ethernet ports, designed to withstand the operation stress of live environments.
The matrix is recognized by the connected DisplayPort source as a DP-to-HDMI converter, and video input signals of 3840x2160 4:4:4 RGB 10 bit are converted to 3840x2160 4:2:2 YCbCr 10 bit or 3840x2160 4:4:4 RGB 8 bit on the DisplayPort input.
Furthermore, it’s important to note that DP Multi-Stream (MST), Dual-mode DisplayPort (DP++), Adaptive-Sync and FreeSync™ are not supported, and neither is HDR on DisplayPort outputs.
MX2 HDMI 2.0 Matrix Switchers
For Professional Environments
The MX2 HDMI 2.0 Matrix Switcher family provides high-quality 4K UHD switching with HDMI 2.0, HDCP 2.2, and advanced audio support, ideal for corporate and large-scale event installations.
Specification Table
|
Name |
HDMI Inputs |
DP Inputs |
Audio Inputs |
HDMI Outputs |
DP Outputs |
Audio Outputs |
|
4x |
4x |
- |
8x |
- |
2x |
|
|
- |
8x |
4xD |
8x |
- |
4xH |
|
|
4x |
4x |
4xH + 4xD |
4x |
4x |
4xH + 4xD |
|
|
8x |
8x |
8xH |
16x |
- |
4xH + 4xA |
|
|
12x |
12x |
- |
24x |
- |
- |
|
|
12x |
12x |
8xH + 4xD |
24x |
- |
8xH |
|
|
16x |
16x |
8xH+4xD |
16x |
- |
8xH+8xA |
|
|
24x |
24x |
8xH+8xD |
24x |
24x |
8xH+24xD |
|
|
- |
48x |
16xD |
48x |
- |
16xH |
|
|
H: next to HDMI | A: independent audio out | D: next to DP |
||||||
| Specification* | |
| Routing | 24 input to 24 output, non blocking architecture |
| Speed | 18 Gbps per port |
| Resolution | Up to 4096x2160@60Hz at RGB or YCbCr 4:4:4 (up to 600MHz pixel clock) |
| Height | 4RU, 442 W x 277.5 D x 177.8 H mm |
| Mounting | Rack mountable, removable rack ears |
* Specifications are subject to change without notice
| Connectors | |
| Power | 2x Neutrik Powercon True1, 110/220V |
| Video inputs | 24 x DisplayPort 1.2 |
| Video outputs | 24 x DisplayPort 1.2 |
| Audio inputs | 8 x Stereo, balanced, 5-pole Phoenix |
| Audio outputs | 24 x Stereo, balanced, 5-pole Phoenix |
| Serial control | D-sub 9-pole |
| Ethernet | Ethercon |
| USB | Mini USB B |
Features
HDCP 2.2 and HDCP 1.4 compliant
with cross conversion capabilities
Supports HDMI 4K signal formats
4K UHD @60Hz RGB 4:4:4, up to 18 Gbps
HDMI 2.0, HDMI 1.4 and DVI 1.0 compliant
High bitrate Audio Support
including Dolby Atmos, TrueHD, DTS-HD
