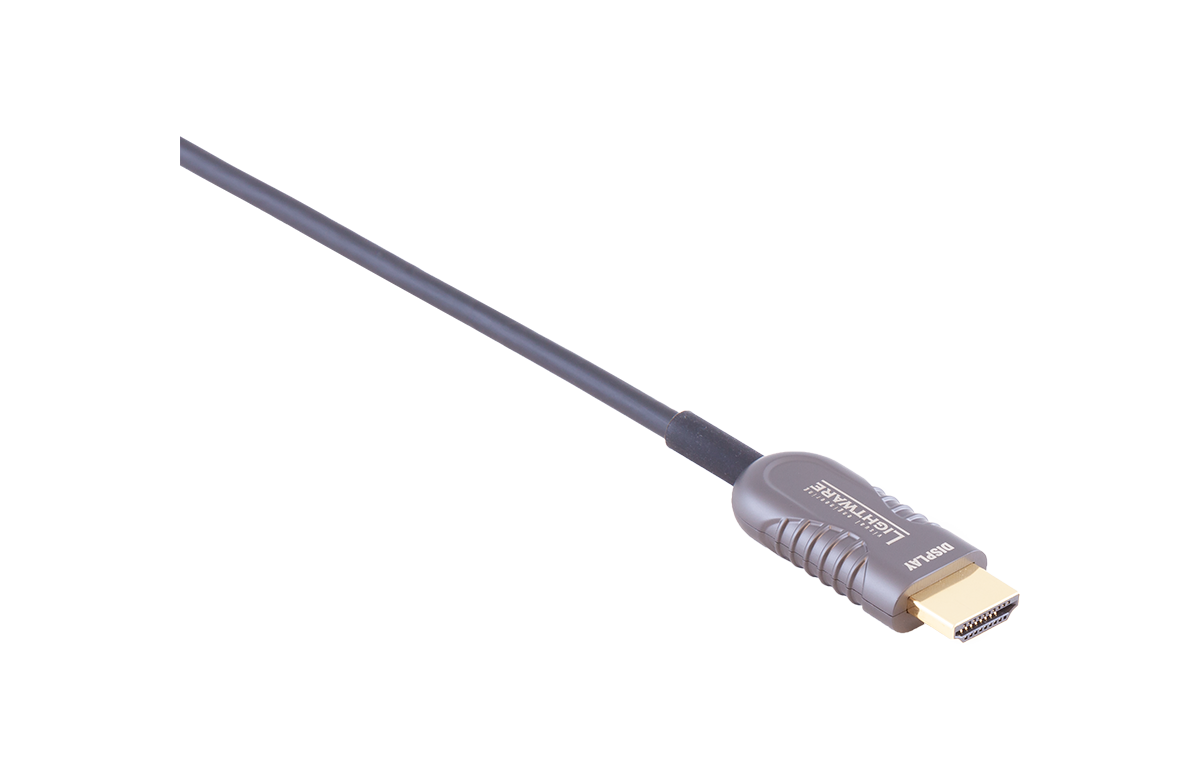

CAB-HDMI20-AOC1500H 15m (49.21ft) Premium High Speed HDMI 2.0b Active Optical cable

Shipping
SKU
13750094
Be the first to review this product

Highlighted features

  • Bandwidth up to 18Gbps
  • Up to 4096x2160@60Hz at RGB 4:4:4 video resolution
  • The built-in buffer chip provides robust signal integrity and reliable connection
  • No external power needed

Our regional offices and dedicated AV experts are at your disposal and would happily assist you finding the most suitable solution for your AV project.

Simply choose your location and get in touch with your Lightware partner today.

Our dedicated Lightware experts are ready to discuss the needs of your AV projects!

Featuring our HDMI 2.0 Active Optical Cabels and backward compatibility for crystal-clear digital images. Supports EDID, HDCP2.2, HDR, CEC, ARC.
Built-in buffer chip for robust signal integrity and reliable connection. Strong zinc alloy housing and durable gold-plated connectors. Available in 10m, 15m, 20m, 30m, 50m lengths.

  • Bandwidth up to 18Gbps
  • Up to 4096x2160@60Hz at RGB 4:4:4 video resolution
  • The built-in buffer chip provides robust signal integrity and reliable connection
  • No external power needed
HDMI Signal Support
HDMI Standards 2.0b (18Gbps)
Video Format 4K@60Hz (color space 4:4:4) 3D and Deep color
Data Rate 18Gbps
Control Signal HDCP 2.2/ EDID/ CEC/ DDC/ HEC/ ARC/ HDR

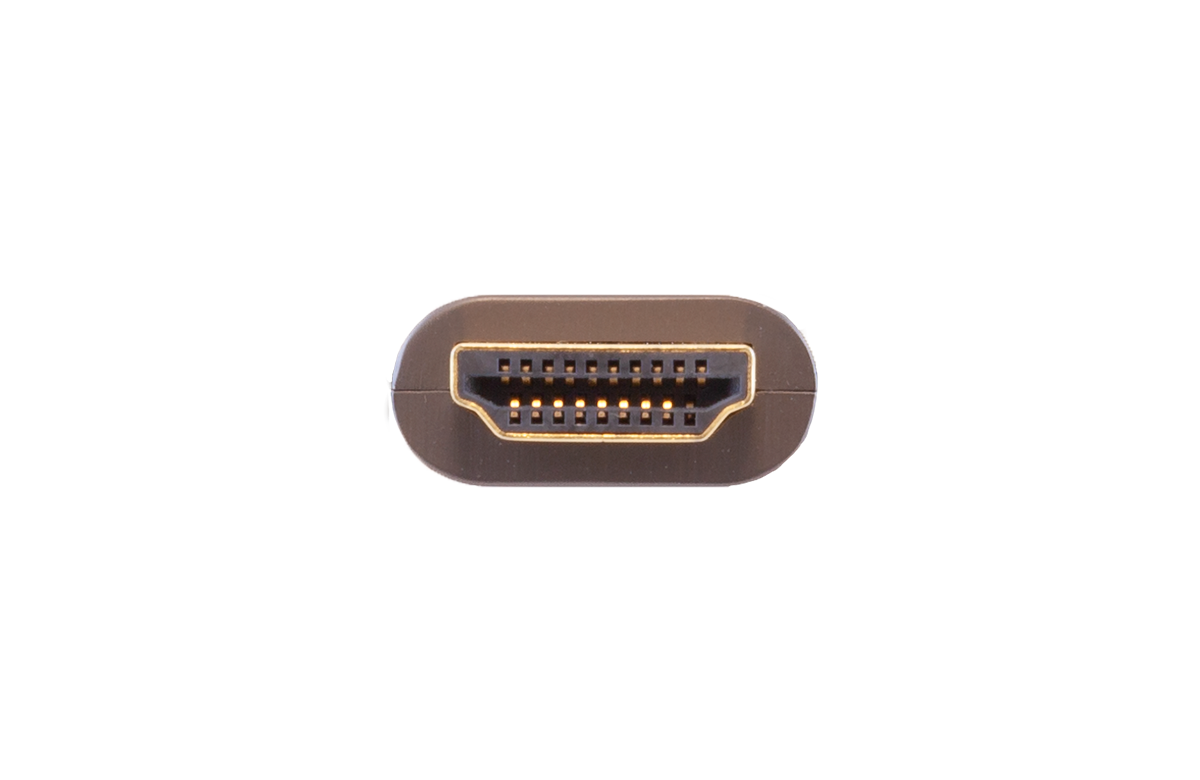

Connector HDMI Type A  to HDMI Type A
Audio Support Multi-channel audio, Dolby True HD, DTS-HD Master Audio
Physical Properties
Length 15m
Pin coating Gold-plated
Color black
Outside Diameter 4.5 mm
Cable Filler Kevlar
Jacket Material PVC
Bending Radius 45 mm
Material Hybrid type with OM3 fiber and copper wire
Power No external power needed
Operating temperature 0°C to 50°C
Humidity 10% ~ 80% RH
Environmental RoHS, REACH (EC 1907/2006)
Flammability PVC
