MMX4x2-HDMI-USB20-L

Shipping
SKU
91310076

4x2 Matrix Switcher for HDMI video and USB 2.0 peripherals

MMX4x2-HDMI-USB20-L is a compact size matrix switcher offering four HDMI inputs and two independent HDMI outputs as well as USB 2.0 connectivity allowing easy switching across four USB peripherals and four hosts.

Highlighted features

  • Full USB 2.0 data speed at 480Mbps
  • Multiple USB 2.0 connectivity for any type of USB devices (Camera, speakerphone, touch monitor, USB-HID devices etc…)
  • Separate USB 2.0 Host switching layer for multiple USB hosts and USB devices
  • Camera powering through 1000 mA output current on USB-A connector (e.g. Huddly camera)
  • Cisco VC room integration compatibility
  • Advanced control feature pack for 3rd party video conference collaboration
  • Supports HDMI 4K signal formats (4K UHD @30Hz RGB 4:4:4 or @60Hz YUV 4:2:0, up to 9 Gbps)
  • Built-in Event Manager control automation feature

Our regional offices and dedicated AV experts are at your disposal and would happily assist you finding the most suitable solution for your AV project.

Simply choose your location and get in touch with your Lightware partner today.

Our dedicated Lightware experts are ready to discuss the needs of your AV projects!

Keep everything under control

MMX4x2-HDMI-USB20-L is an integrator-friendly, 4x2 matrix switcher for HDMI video and USB2.0 peripherals.

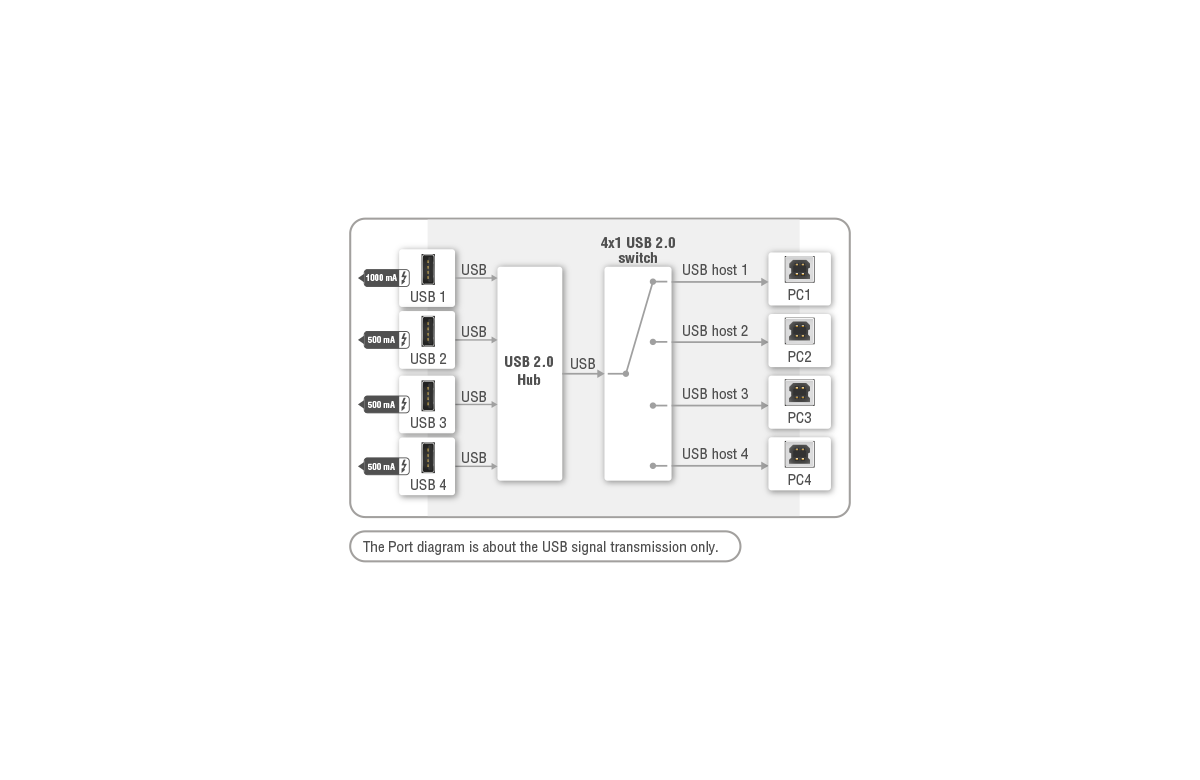

It has four HDMI inputs and two independent HDMI outputs, as well as a USB 2.0 layer that provides the switching of four external USB peripherals (such as webcamera, speakerphone, multitouch display, etc.) to four independent computers or laptops. As an additional benefit, the device offers full 480Mbps data speed over USB 2.0.

Bespoke USB functionality

Unique USB functions allow seamless integration in Unified Communication and small Video Conference rooms. The ”USB 5V Host Detect” function recognizes when a USB cable is connected and performs condition triggering for the Event Manager. For example, switch USB devices to the last connected USB laptop if configured accordingly. The ”USB 5V PWR Switch” turns ON or OFF peripherals’ 5Volt over the USB cable. As an additional benefit, the device offers full 480Mbps data speed over USB 2.0

”USB Disconnect” helps Cisco Room Kit Mini and Touch 10 control unit to switch between Webcam and Webex video conferencing operation modes. It also solves the problem when Cisco Touch 10 gets locked in USB webcam operation and touch buttons become unavailable.

Enhanced Room Control

MMX4x2-HDMI-USB20-L and built-in Event Manager automation makes the meeting room easy, intuitive and hassle-free: it detects powered computers, turns on the screen and camera, and prepares for the next call. Based on the specific configuration it allows auto-switch for USB and video signals. In other cases, USB may not follow video, according to the application.

Easy Cisco Integration

The MMX4x2-HDMI-USB20-L seamlessly integrates with Cisco Rooms, and also offers users unprecedented flexibility to utilize the Cisco Webex Room kits as a USB camera if they prefer to use a 3rd party video conference platform.

How to Get Started

  Advanced Control Pack Features:

  • 100 available event slots in ’Plus’ extenders
  • Support RS-232 protocol for communication and control of third party devices like VC codecs. This allows the Cisco Room Kit login on RS-232–USB connection.
  • Support to receive CEC commands for control of displays and Lightware Event Manager to automate room actions.
  • Support to send CEC commands on HDMI ports for control of other devices.
  • Support true Infrared messages using HEX codes to control TVs, media players and other devices with IR emitters.

Advanced Control for Cisco Room Integration

General

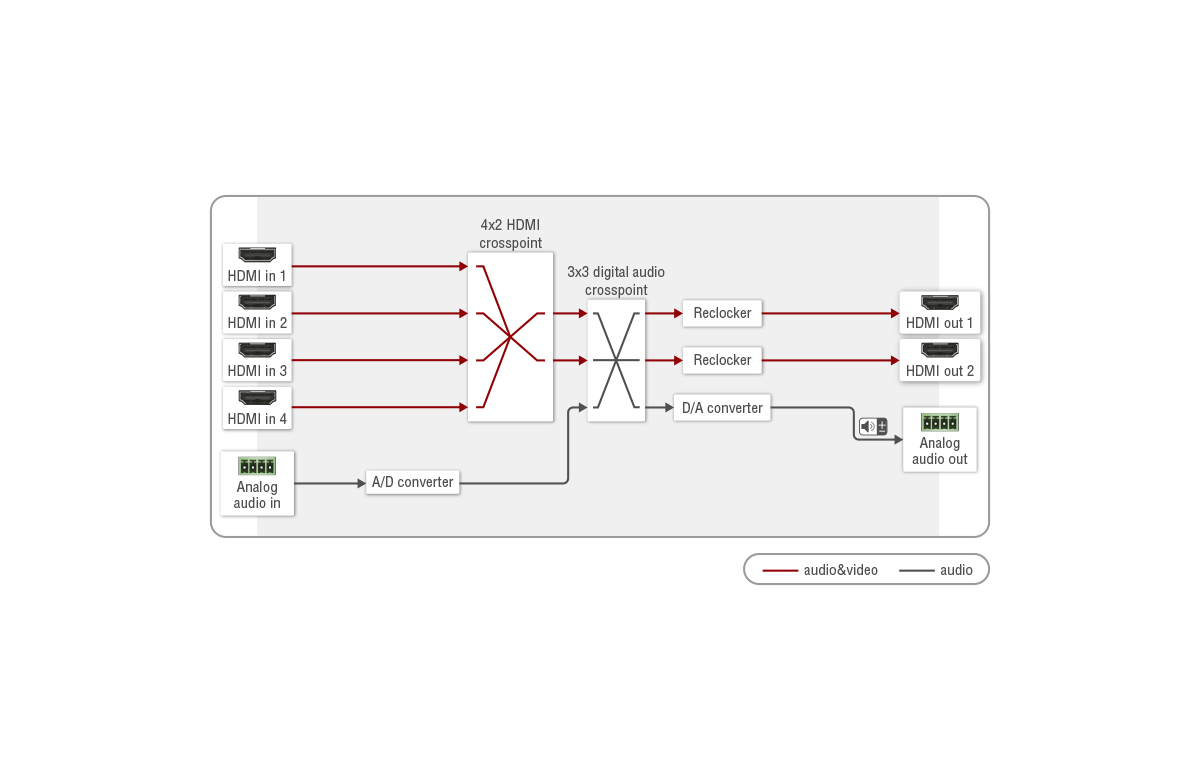

Digital video inputs: 4 x HDMI connector
Digital video outputs: 2 x HDMI connector
Balanced audio input: 5-pole Phoenix (Euroblock) connector
Balanced audio output: 5-pole Phoenix (Euroblock) connector
Ethernet: 3 x RJ45
USB device: 4 x USB-A
USB power: 1 x 1000 mA; 3 x 500mA
USB 2.0 Data Speed  480 Mbps
USB host: 4 x USB-B
USB control: mini-USB-B connector
Control: 6 x GPIO, 8-pole Phoenix (Euroblock)
IR in and out: 3.5 mm jack
Serial port: 2 x RS-232 Serial Port
Power: Locking DC connector (2.1 / 5.5 mm)
