USB20-1GBE-HS10
USB 2.0 over LAN host side extender
Being part of an ExtremeUSB™ USB 2.0 extension solution, this extender can be used to receive USB data directly or over the LAN from multiple AV devices which function as compatible device side extenders.
Highlighted features
- LAN and direct cable connectivity supported
- Transparent USB extension
- Throughput up to 480 Mbps
- Dynamic pairing to up to 7 compatible device side extenders
It is not uncommon that the distance between a USB 2.0 device and a host is more than 5 meters. In such cases, a direct USB cable cannot be used to connect them reliably. With the help of this host side extender USB 2.0 extension solutions can be built that make use of CAT5e/6/7 cables up to 100 meters. Both LAN and direct cable infrastructures are supported.
Another challenging situation where these extenders can be of help is when USB 2.0 devices from multiple locations need to be connected to a single host at the same time. Using a LAN infrastructure, up to 7 compatible device side extenders can be paired to this host side extender.
A host may be connected to a set of USB devices at a given point of time but there are many situations when the need to manage this set dynamically arises. The host side extender under discussion meets the above need because any of its paired host side extenders can be unpaired and new pairings can be formed with any compatible device side extender which is also present on the same LAN.
This product focuses solely on USB 2.0 extension and therefore it is a cost-effective product in its category.
- LAN and direct cable connectivity supported
- Transparent USB extension
- Throughput up to 480 Mbps
- Device class filtering
- True Plug and Play
- Several mounting possibilities
- Small form factor and light weight
- Dynamic pairing to up to 7 compatible device side extenders
- Compatibility with ExtremeUSB® USB 2.0 vendor lock free extension devices
| General | |
| Traffic types | All USB 2.0 and USB 1.1 traffic types |
| Extension range (network infrastructure) | maximum 100m (330 ft) using solid core CAT5e/6/7 cables |
| Extension range (direct connection) | maximum 100m (330 ft) using a single CAT5e/6/7 cable |
| Throughput (USB 2.0) | maximum 480 Mbps |
| Throughput (USB 1.1) | maximum 12 Mbps |
| Supported device types | Control, Interrupt, Isochronous and Bulk |
| Compliance | CE, UKCA, FCC |
| Electrical safety | EN 62368-1:2020 |
| EMC (emission) | EN 55032:2015+A1:2020 |
| EMC (immunity) | EN 55035:2017+A11:2020 |
| RoHS | EN 63000:2018 |
| Warranty | 3 years |
| Operating temperature | 0° to +50°C (+32° to +122°F) |
| Storage temperature | -20° to +70˚C (-4° to +158˚F) |
| Operating humidity | 10% to 90%, non-condensing |
| Cooling | passive |
| Pairing control | with pairing buttons and a UDP control protocol |
| Number of USB devices/hubs in a solution | maximum 30 |
| Power | |
| Power supply option | USB VBUS from host |
| Power consumption (max) | 1W |
| Heat dissipation | 4 BTU/h |
| Enclosure | |
| Rack mountable | Yes, 1U high |
| Enclosure material | 1 mm steel |
| Dimensions in mm | 100.4 W x 75.3 D x 26 H |
| Dimensions in inch | 3.95 W x 2.96 D x 1.02 H |
| Weight | TBD ? g (? lb) |

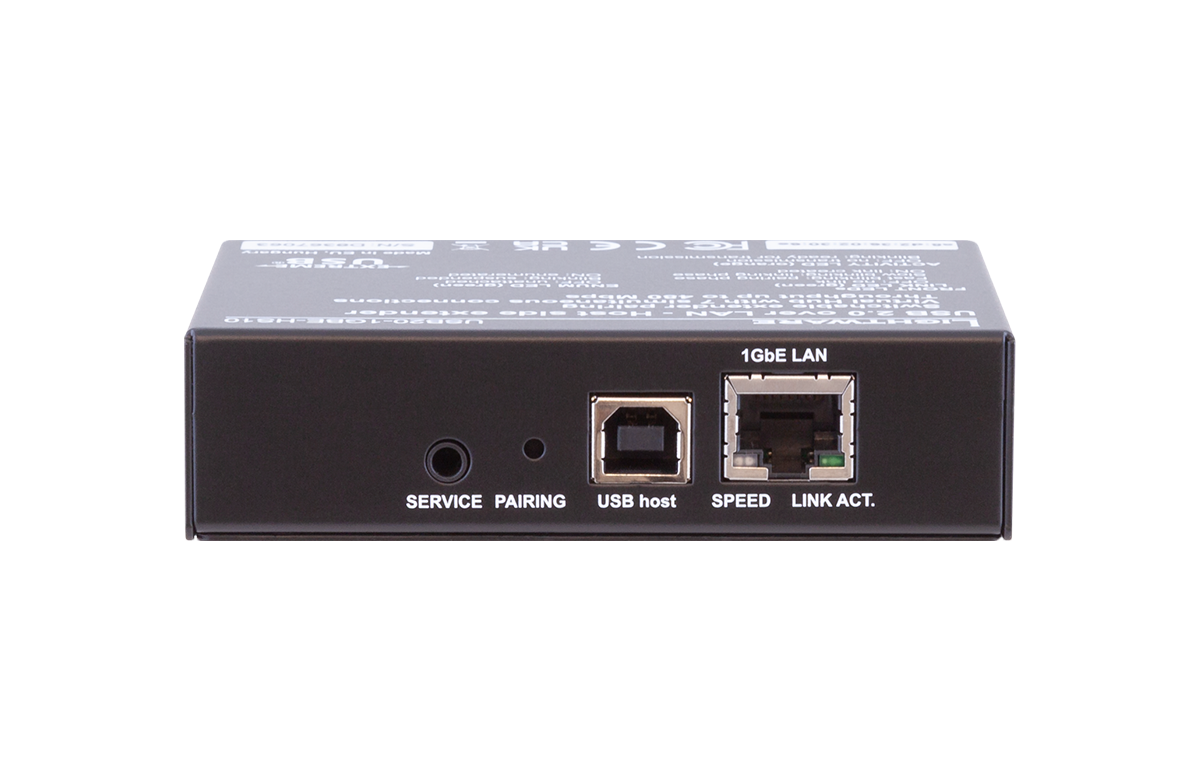

| Ports | |
| USB host port | |
| Connector type | B-type receptacle |
| USB compliance | USB 2.0 |
| Device class | All device classes |
| Ethernet port | |
| Connector type | RJ45 female connector |
| Ethernet data rate | Gigabit Ethernet |
| Power over Ethernet (PoE) | Not supported |
| Number of TIER to USB2.0 layer | 0 + 1 if simultaneous user interaction (SUI) is enabled |
