UBEX-PRO20-HDMI-F100

Learn More About The Unrivalled Features of UBEX

Lightware’s UBEX 10G AV-over-IP system brings a plethora of features highly-specific for esport applications, including the support of video signal resolutions up to 4K60 through HDMI 2.0 as well as seamless switching, video wall capabilities and silent operation.

Discover UBEX

The UBEX-Pro20-HDMI-F100 successfully passed and got certified for the Tempest SDIP27 Level B standard, making it suitable for defense and intelligence projects where high levels of reliability is critical.

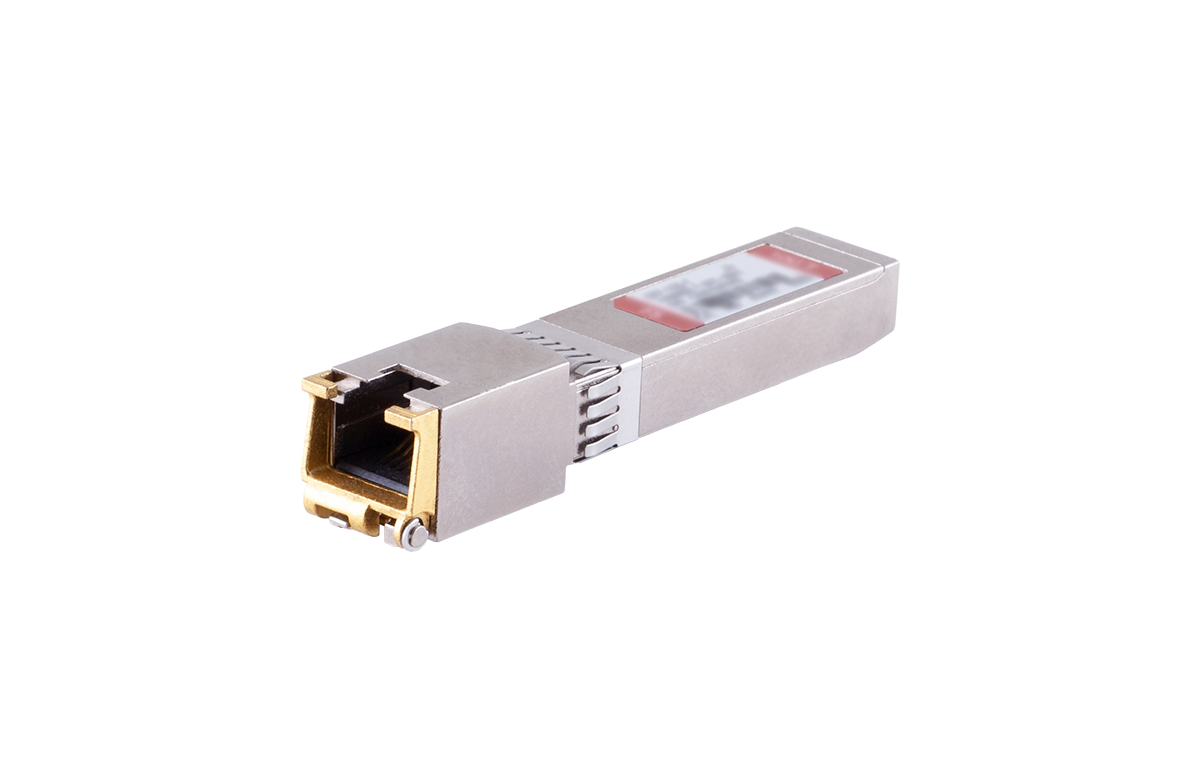

UBEX is an optical scaling extender which allows 4K UHD@60Hz 4:4:4 uncompressed signal extension with latency-free multistreaming. The device is designed to use Video Over IP transmission on a 10G Ethernet network, it has standard, 10 Gbps SFP+ optical modules installed, which are field-exchangeable by the user.

UBEX units can connect to create a complex network with the use of a standard Ethernet switch.

An UBEX-MMU-X200 Matrix Management Unit (MMU) is required to control and supervise a virtual matrix, which can be created by connecting UBEX units as input and output endpoints to an Ethernet switch acting as crosspoint.The MMU device can update the firmware of endpoint UBEX units in a virtual matrix application simultaneously, without limitation for the number of devices in the setup.

One of the prime advantages of such new architecture is scalability: the virtual matrix created can have a virtually infinite number of endpoints, limited only by the number of open ports on the Ethernet switch used. Such a virtual matrix can be also extremely asymmetrical, as e.g. it could have only a few (or one) devices on the input side, while an almost unlimited number of output end units.

Using visually lossless compression, UBEX can extend two signals over a single, 10 Gbps Ethernet port. This generates substantial cost saving on the required Ethernet switch side, as with UBEX only half the router size is required compared to the needs of similar, 10 Gbps IP based architectures. For video signals which can be transferred within the 10G speed limit of a single optical fiber, a video signal redundancy feature is available employing the second optical fiber channel.

The UBEX design also favors dual-screen applications: each transmitter and each receiver handles 2x HDMI 2.0 video ports.

UBEX can also be used in a point to point setup as a conventional extender pair between endpoints. It is not required to use an Ethernet switch when point to point extension is required.

The Video Wall Wizard for UBEX features quick video wall installation with bezel adjustment and cropping, includes options for various layouts within the video wall matrix and also allows zones for smart management.

The maximum reachable distance is ranging between 400 m and 80km, depending on the type of singlemode or multimode optical modules installed in the device, and on the signal properties.

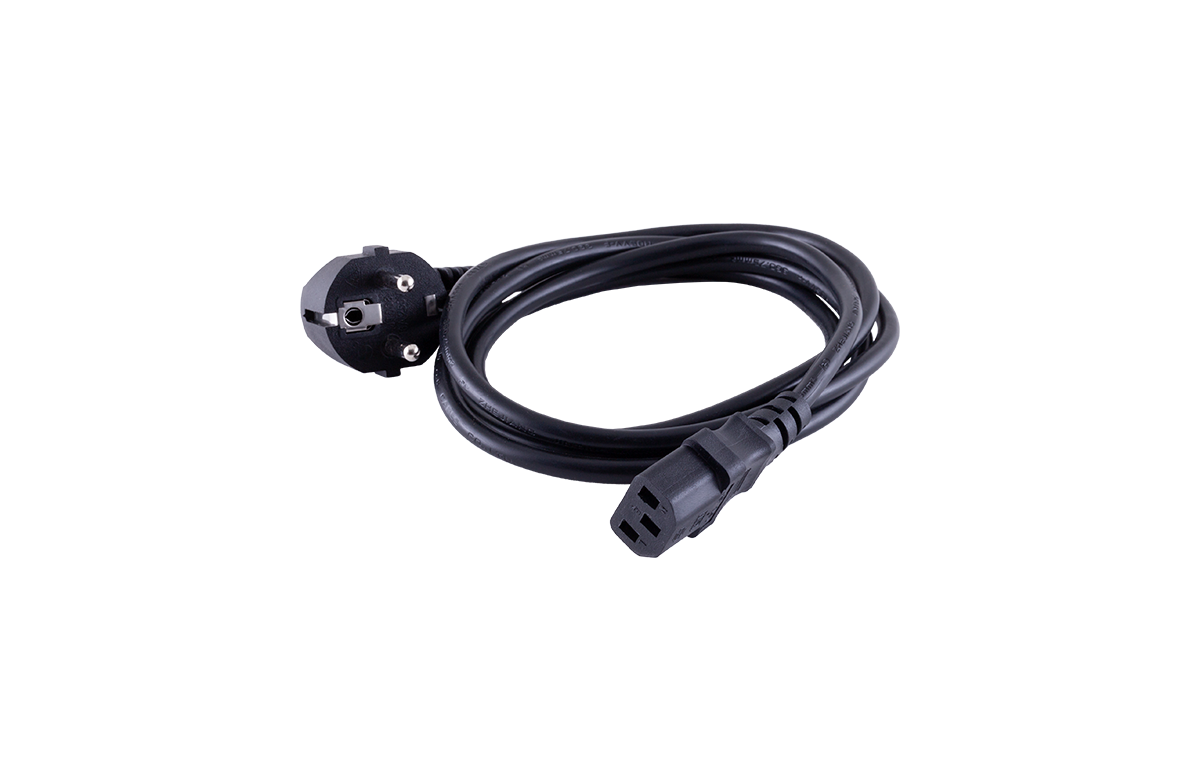

The internal power source of UBEX has Medical (60601) and ITE (60950) grade classifications for maximum reliability.

Hardware Features	UBEX-PRO20-HDMI-F100	UBEX-PRO20-HDMI-F110	UBEX-PRO20-HDMI-F120	UBEX-PRO20-HDMI-F130
Link	20G	20G	20G	20G
Optical
Type of videos	HDMI 2.0	HDMI 2.0	HDMI 2.0	HDMI 2.0
Nr. of video inputs	2	2	2	2
Nr. of video outputs	2	2	2	2
USB HID (KVM)
Full USB 2.0
Balanced stereo analog audio I/O ports
IR I/O and RS.232 control ports				only RS232, no IR
1 Gbps Ethernet
Nr. of fibers (W/STANDARD SFP +)	4	4	4	4

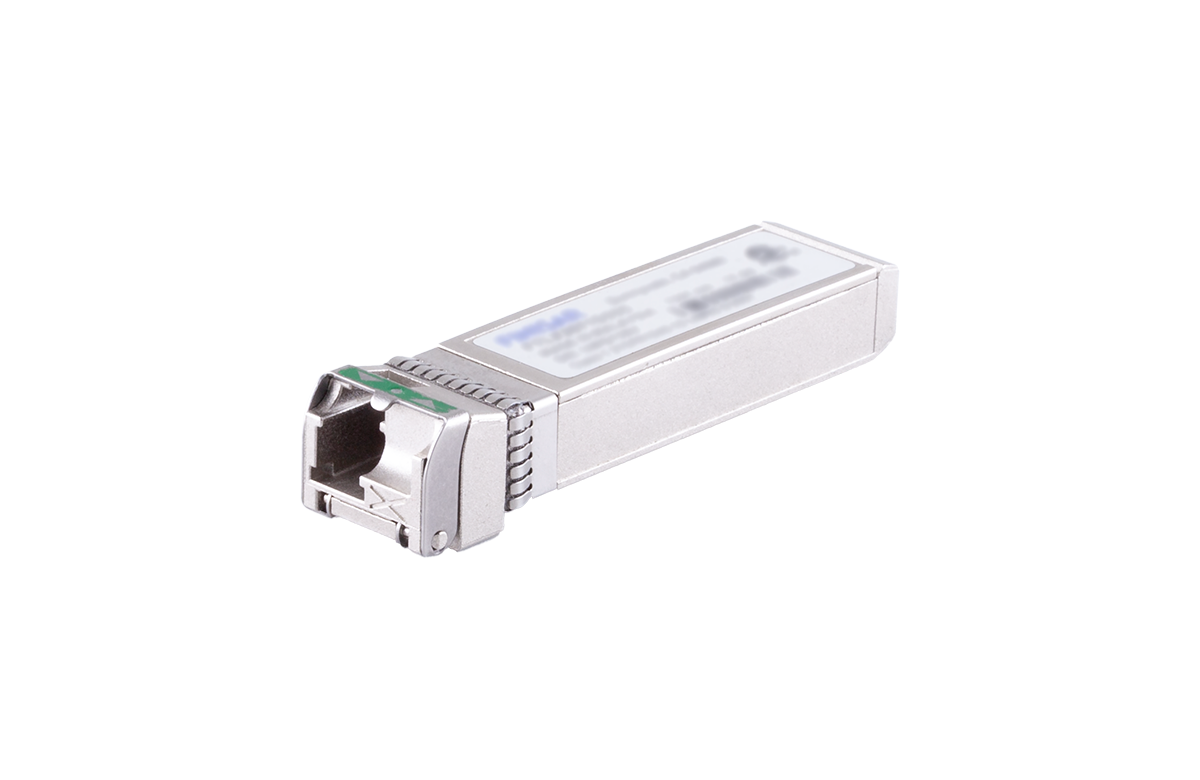

Nr. of fibers (W/BIDI SFP +)	2	2	2	2

Software Features	UBEX-PRO20-HDMI-F100	UBEX-PRO20-HDMI-F110	UBEX-PRO20-HDMI-F120	UBEX-PRO20-HDMI-F130
4K scaling	2	2	2	2
Framerate conversion
4K UHD @ 60Hz 4:4:4
30 bit deep color support
Audio embedding and de-embedding
Advanced edid management
HDCP 2.2 compliant
Seamless switching
Multiviewer operation mode

Uncompressed Signal Management Over IP

Typical Applications

• Large office building environments
• Yacht and other high-end residential systems
• Rental and Staging
