MX2-16x16-HDMI20-Audio
16x16 HDMI 2.0 matrix with Breakaway Analog Audio
The MX2-16x16-HDMI20-Audio is a member of the Lightware HDMI 2.0 standalone matrix switcher family that supports uncompromised 4K UHD resolution at 60Hz 4:4:4 and allows embedding audio to and deembedding audio from the HDMI stream.
Highlighted features
- Audio embedding and de-embedding
- HDCP 2.2 and HDCP 1.4 compliant with cross conversion capabilities
- Supports HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps)
- HDMI 2.0, HDMI 1.4 and DVI 1.0 compliant
- HDR and Low Latency Dolby Vision support
- High bitrate Audio Support including Dolby Atmos, TrueHD, DTS-HD
The MX2-16x16-HDMI20-Audio successfully passed and got certified for the Tempest SDIP27 Level B standard, making it suitable for defense and intelligence projects where high levels of reliability is critical.
The MX2-16x16-HDMI20-Audio is a member of the HDMI 2.0 standalone matrix switcher family that supports uncompromised 4K UHD resolution at 60Hz 4:4:4 and allows embedding audio to and deembedding audio from the HDMI stream.
It has an outstanding port density that makes it particularly suitable for fix-install applications and for future-proof operation centers. It is also a perfect choice for installations where a huge number of HDMI 2.0 compliant input and output ports are required along with audio inputs and outputs.
This standalone product has 16x HDMI 2.0 inputs and 16x HDMI 2.0 outputs transmitting up to 4K at 60Hz in 4:4:4 format, while supporting 3D, Dolby TrueHD and DTS-HD Master Audio.

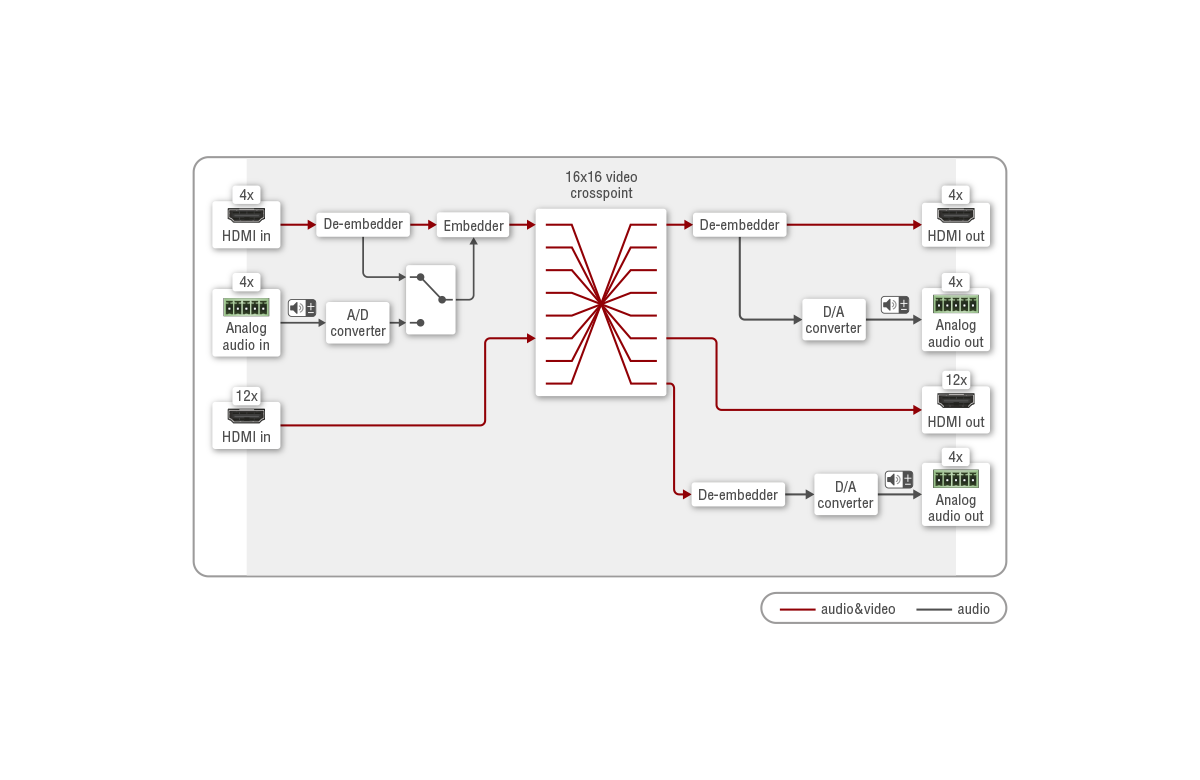

Four of its input ports have audio connectors for embedding analog stereo audio into the HDMI stream, while eight audio connectors (four connectors next to the output ports, plus four independent audio connectors) can provide de-embedded stereo LPCM audio from any of the inputs for amplifiers and audio systems.
|
MX2 Model Name |
Full Set of Crosspoint Switch Buttons on Front |
Analog Audio I/O Ports |
Redundant Power and Reinforced Connectors |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
 |
|
|
|
|
|
|
- Audio embedding and de-embedding
- Adjustable analog audio settings (volume, gain, balance)
- Front to back cooling airflow
- 5-pole Phoenix balanced analog audio connectors
- Built-in universal power supply
- HDCP 2.2 and HDCP 1.4 compliant with cross conversion capabilities
- HDCP enable/disable function on input
- Vista Spyder and Barco Encore compatibility
- Multiple TCP/IP connections
- Advanced EDID Management
- Save and reload full crosspoint configurations as preset
- Intuitive control software for device configuration
- Device control via Ethernet (TCP/IP), RS-232 and USB
- CEC support (command injection)
- Fully non-blocking switching architecture
- Built-in website for device configuration
- Supports HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps)
- HDMI 2.0, HDMI 1.4 and DVI 1.0 compliant
- HDR and Low Latency Dolby Vision support
- Pixel Accurate Reclocking
- No video compression
- Redundant power supplies available
- Firmware upgrade through Ethernet
- Front panel LCD menu for configuration and crosspoint control
- High bitrate Audio Support including Dolby Atmos, TrueHD, DTS-HD
- Supports all embedded audio formats (including PCM, Dolby Digital and DTS high bitrate audio)
- Uncompressed video up to 18 Gbps datarate (600 MHz pixel clock)
- No signal latency, zero frame delay
| Specification* | |
| Routing | 16 input to 16+4 output, non-blocking architecture |
| Speed | 18 Gbps per port |
| Resolution | Up to 4096x2160@60Hz at RGB or YCbCr 4:4:4 (up to 600MHz pixel clock) |
| Height | 3RU |
| Mounting | Rack mountable, removable rack ears |
* Specifications are subject to change without notice
| Connectors | |
| Power | IEC standard, 110/220V (one for normal build, two for optional redundancy) |
| Video inputs | 19-pole HDMI 2.0 |
| Video outputs 19-pole HDMI 2.0 | 19-pole HDMI 2.0 |
| Serial control | Stereo balanced, 3-pole Phoenix |
| Ethernet | RJ45 |
| USB | Mini USB B |
